    100 MHz Digital Storage Oscilloscope, 2 Channel, 2 GSa/s

    Dual channel DSO oscilloscope is a high-accuracy digital oscilloscope with 100 MHz bandwidth, 2 GSa/s sampling rate, 10M storage depth. The high-performance digital oscilloscope has an automatic range function, easy to achieve the effect of instant measurement.
    SKU: SISCO-DSCO-1002
    $1,168.57
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    Digital storage oscilloscope with 100 MHz bandwidth, 2 GSa/s sampling rate. The operation interface of the storage oscilloscope is simple, which is easy to operate. The ultra-thin body with the width of the thumb takes up less work space.

    Detail of digital stroage oscilloscope

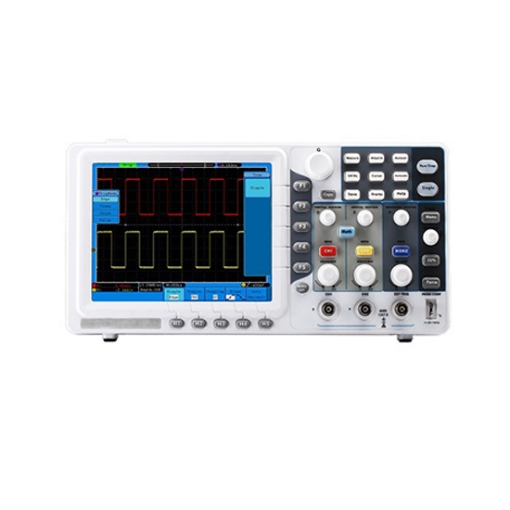

    Digital storage oscilloscope interface details

    1. 8-inch high-resolution LCD
    2. Vertical control area
    3. Function key area
    4. Trigger area
    5. Horizontal control area
    6. Function selection button

    Detail of PC oscilloscope

    Support SCPI

    1. Trigger output or pass/fail output port
    2. Stowable handle
    3. Switch
    4. Main power switch
    5. Power socket
    6. Optimized cooling holes
    7. Ground port
    8. Tripod (adjustable oscilloscope tilt angle)



    Dimension Unit (mm)

    Dimension of digital storage oscilloscope

    Application

    The main application of a SISCO oscilloscope is used to display the waveforms of signals. It can be used in many fields such as automotive test, signal analysis, electrical, transducer test and measurement, electrical equipment design, medical equipment testing field, etc.

    Application of oscilloscope

    Specs



    Model SISCO-EDS-112C
    Bandwidth 100 MHz
    Channel 2+ external trigger
    Sample rate 2 GSa/s
    Acquisition model Sample, Peak detect
    Record length 10M
    Display 8 inch LCD
    Waveform refresh rate 10000 wfrms/s
    Input coupling DC, AC, Ground
    Probe attenuation 1X, 10X, 100X, 1000X
    Input Impedance 1MΩ ± 2%, in parallel with 15pF ± 5pF
    Max. input voltage 400V (DC+AC, PK - PK)
    Bandwidth limit(typical) 20MHz / Full bandwidth
    Sampling rate range 1ns/div ~ 100s/div,step by 1-2-5
    Vertical Resolution 8 bits
    Sensitivity Resolution 2mV/div~10V/div
    Low Frequency(-3db) ≥10 Hz (at input, AC coupling)
    Rise time (at input, Typical) ≤3.5ns
    Trigger type Edge
    Trigger model Auto, Normal, single
    Trigger level range ±6 div from the screen center
    Automatic measurement Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot,
    Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
    Cursor measurement ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
    Dimension 340*155*70mm
    Weight 1.8kg



    Accessories

    • Power cable
    • USB cable
    • Probe
    • Probe Adjust
    • Quick Guide
    FAQs

    Q1: Can an oscilloscope measure DC voltage?
    A1: DC voltage can be measured using either an oscilloscope or a digital multimeter. Each piece of testing equipment has its advantages and disadvantages.

    Q2: What is the maximum frequency for the oscilloscope?
    A2: System bandwidth determines an oscilloscope's fundamental ability to measure an analog signal - the maximum frequency range that it can accurately measure. Entry-level scopes will often have a maximum bandwidth of 100 MHz. They can accurately (within 2%) show the amplitudes of sine-wave signals up to 20 MHz.

    Q3: What is the record length for an oscilloscope?
    A3: The record length, measured in points or samples, divided by the sample rate (in Samples/second) specifies the total time (in seconds) that is acquired. Example: With a record length of 1 M points and a sample rate of 250 MSa/sec, the oscilloscope will capture a signal of 4 msec in length.

    Tips: How to fix a digital storage oscilloscope?

    If the oscilloscope still has a black screen without any display when the power switch is pressed, please follow the steps below.

    • Check that the power connector is connected properly.
    • Check that the power switch at the power connector is pressed solid.
    • Check that the fuse at the power connector is not blown (use a one-way screwdriver to pry it open).
    • After doing the above checks, restart the instrument.

    If the waveform of the signal does not appear on the screen after the signal is acquired, please follow the steps below.

    • Check that the probe is properly connected to the signal connection cable.
    • Check that the signal connection cable is properly connected to the BNC (i.e. channel connector).
    • Check that the probe is properly connected to the object to be measured.
    • Check for signal generation from the object to be measured (you can connect the channel with signal generation to the channel with the problem to determine the problem).
    • Re-acquire the signal once more.


    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
