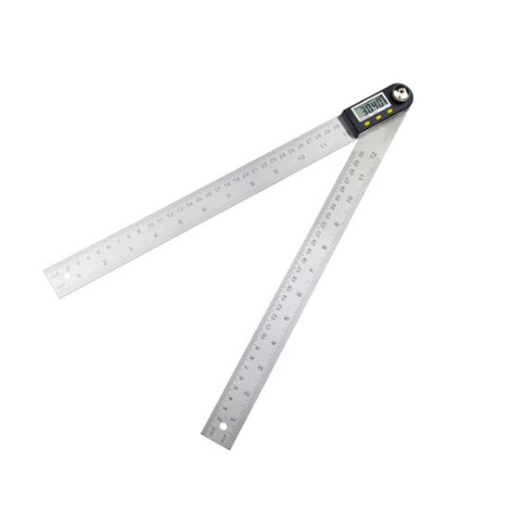

    2 in 1 Digital Protractor, 300 mm

    Buy angle and straightedge in one digital protractor online, measuring length 0~300mm/11 inch, which can be locked at any angle and has a zero button to reset the angle measuring tool at any time. The 2-in-1 digital protractor works for measuring the angle of leaf blades, wood cutting angles, and cabinet-making angles.
    SKU: SISCO-DP-300
    $145.97
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    2-in-1 electronic digital protractor for measuring internal and external lengths and angles. The measuring range is from 0 to 300 mm, with an easy-to-read LCD display. The digital protractor has a wide range of applications in the fields of teaching and mapping, construction and decoration, biology, medicine, packaging, etc.

    Digital protractor with locking function

    Digital display, accurate measurement

    • Digital protractor with digital display, easy to read.
    • Digital angle protractor with data lock function.
    • Unit conversion, decimal part in degrees, and minutes switching.
    • The 2 in 1 Digital Protractor has both angle measurement and metric length measurement functions for measuring the internal and external angles of workpieces.

    High precision digital protractor

    Locking mechanism for locking at any angle

    • The reliable locking function allows you to lock the angle at any desired position.
    • Turn clockwise to release the knob.
    • Drawer-type battery compartment for easy battery replacement.
    • Use 3V CR2032 button cell battery, service life over 2000 hours, negative pole facing up, positive pole facing down when installing the battery.




    Application

    The digital protractor is widely used in railway systems, hydraulic systems, industrial automation, air vehicle industry, machinery industry, construction industry, biology, medicine, robotics and other fields that need to measure and control angles.

    Digital protractor applications

    Specs
    Model SISCO-DP360-300
    Measuring Range 0~360
    Body Length 0-300mm(11")
    Indexing Value 0.05°
    Accuracy ±0.3
    Repeatability 0.05°
    Power Supply 3V CR2032 * 1 grain, life more than 2000 hours
    Package Type Color card + blister package
    Weight with Packaging 211g



    Details

    2 in 1 digital protractor details

    FAQs

    Q1: What is a digital protractor?
    A1: The digital protractor is a device for measuring small angles, which can be used to measure tilt for horizontal position, parallelism, and perpendicularity of two parts, straightness of machine tools and instrument guides, table flatness, and flatness of flat plates, etc.

    Q2: How does the digital protractor work?
    A2:  When the axis in the digital protractor base is rotated in one direction, the count increases, and when the direction of rotation is changed, the count decreases. The count is related to the initial position of the goniometer. When the goniometer is initialized, its count is set to 0. By calculating the angle of rotation, the position and speed can be easily measured.

    Q3: What is the accuracy of the digital protractor?
    A3: Digital Protractor measure an angle over 360 degrees with a high accuracy of 0.1 degrees.

    Tips: Is the test mode of the mini digital protractor relative or absolute?

    The test mode of the mini digital protractor is relative. A mini digital protractor also known as a digital inclinometer, or electronic angle meter, commonly used in horizontal angle, relative angle, and inclination measurement can be applied to car manufacturing, control automation to improve and test the level of the railroad track, and other railway systems.
