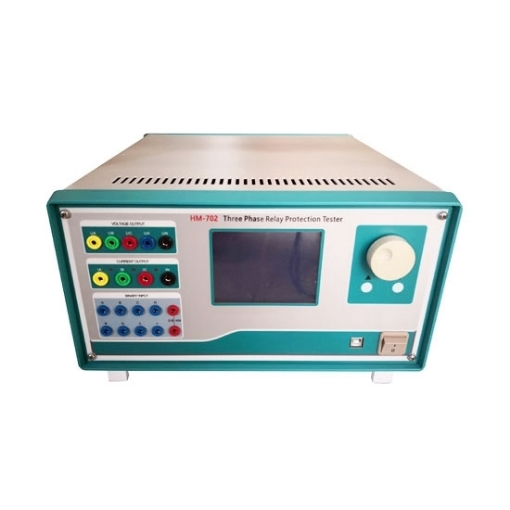

    3 Phase Relay Tester, Microcomputer Control

    sisco 3 phase relay protection tester kit with microcomputer control, large LCD display, standard 4-phase voltage 3-phase current output, high-resolution, high degree of automation, real-time storage of test data, reliable and comprehensive protection measures, powerful software.
    SKU: SISCO-RT702A
    $5,615.38
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    Protection relay test set adopts standard 4 phase voltage 3 phase current output with large-screen LCD, complete interface. This relay tester has integrated single-chassis structure, rich contacts, input contact bit empty contact and 0~250V potential contact compatible, intelligent automatic identification.

    Features

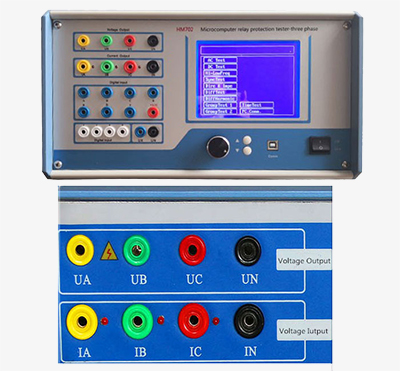

    • 3 phase protection relay tester

      Meet all requirements for field testing. The microcomputer controll relay tester can simultaneously output standard six-phase current and six-phase voltage, each phase current is 30A, and each phase voltage is 125V. A parallel six-phase current can achieve 180A current. The relay protection tester can not only test traditional relays and protection devices, but also test the protection of modern microcomputer-based protection devices, especially the transformers of the standby power supply and the automatic switching devices. Testing has become more convenient and perfect.
    • A host with embedded high-performance IPC (Industrial Personal Computer) can run independently with its 300-600MHz clock speed, 128M memory, 6-12G hard disk and Windows XP operating system. The TFT true color display measures 8.4 inches and has a resolution of 800 x 600. Therefore, the overall operation of the main unit becomes convenient and durable.
    • Three phase protection relay test set has a GPS synchronization test function with an embedded sync card (matching), which can access the PC through the RS232 interface, so it can be synchronized by switching two testers at different locations.
    • The relay tester is equipped with independent special DC power, with auxiliary voltage source output, its output voltage is 110V (1A), 220V (0.6A), respectively, to meet the DC relay or protection device 5, the tester has software the automatic adjustment function can achieve the calibration accuracy without opening the cabinet adjustment potentiometer, which greatly improves the stability of the precision.

    3 phase protection relay tester details

    3 phase relay protection tester details

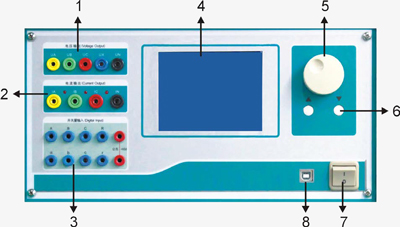

    1. UA, UB, UC, UN, UX voltage output terminals for, including UX is a multifunctional voltage items, can set to four 3 U0 or the same period, or any voltage by a voltage value of output.
    2. IA, IB, IC, IN for current output terminals, the current terminals (IA, IB, IC) on the right side of the small lights instructions which current output waveform distortion or whether there is open load.
    3. Switch input terminals, idle contact and 0-250 V potential compatible input, all 8 road, is for the public end.
    4. LCD display.
    5. Rotate the mouse controller, should set all of the test data and process control all by its completion.
    6. â–², â–¼ button, test status, each as a, each according to its variables set by the step length add, subtract 1 step quantity. In the setting of data, each as a revised, the number of add, subtract 10.
    7. Power switch.
    8. Connection PC communications mouth.

    Application

    sisco relay tester is mainly used for 3 phase protection relay testing in electric power industry, transformer substation and ship industry, etc.

    Relay protection tester application

    Specs
    AC Current Output Model SISCO-RT702A
    Phase 3 Phase
    Power Supply 220V 50Hz
    AC Current Output (Effective Value) 0~40A
    Output Precision 0.2 Degree
    3 Phase Parallel Current Output (Effective Value) 0~120A
    A Long-Time Phase Current 10A
    Maximum Output Power of Phase Current 450VA
    Maximum Output Power of 3 Parallel Current 900VA
    Maximum Permitted Work time of 3 Parallel Current 10S
    Frequency Range (Fundamental) 0~1000Hz
    DC Current Output Harmonic Time 0~20
    Current Output 0~±10A/Phase, 0~±30A/3 Parallel
    AC Voltage Output Output Precision 0.5 Degree
    Phase Voltage Output (Effective Value) 0~120V
    Output Precision 0.2 Degree
    Line Voltage Output (Effective Value) 0~240V
    Phase Voltage/Line Phase Output Power 80VA/100VA
    Frequency Range (Fundamental) 0~1000Hz
    Harmonic Time 0~20
    DC Voltage Output Phase Voltage Output Range 0~±160V
    Output Precision 0.5 Degree
    Line Voltage Output Range 0~±320V
    Phase Voltage/Line Phase Output Power 70VA/140VA
    10 Path Digital Input and 8 Path Digital Output Time Measuring Range 0.1ms~9999s, Accuracy of measurement 0.1ms
    Applications 3 Phase Protection Relay Testing
    Dimensions 370*570*740mm
    Weight 44kg
