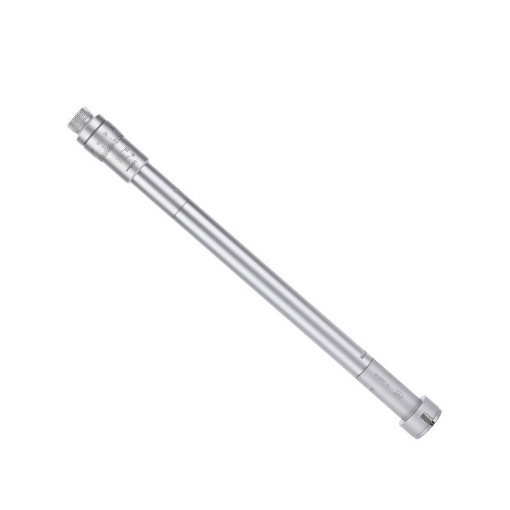

    Inside Micrometer, 3 Point, 87~100 mm Range

    Get an inside micrometer to measure the inside diameter dimensions of parts such as bores, grooves, etc. Bore micrometer is available with an 87mm to 100mm measuring range, bearing steel material, and a 150 mm extension rod. It is a 3-point internal micrometer, widely used in mechanical engineering, machining and most mechanical industries for accurate measurement of parts.
    SKU: SISCO-IM-87100
    $581.44
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    Hot selling 3-point inside micrometer is a precision micrometer that measures the internal dimensions of an object. It is made of bearing steel material, stable and durable, with a measuring range of 87mm~100mm and a 150mm extension rod, easy and portable, bore micrometer is suitable for precision measurement of blind holes and through holes.

    Inside micrometer details

    Inside micrometer with 87~100mm measuring range, suitable for the precision measurement of blind holes and through holes.

    • 3 -point internal micrometer is equipped with a 150mm extension rod, which can measure the size of deep holes easily and conveniently.
    • Highly durable because of carbide-tipped measuring surfaces.
    • Clear graduations laser-etched on a satin chrome finish for easy reading.
    • Spindle hardened ground and lapped for ultimate accuracy.
    • SISCO inside micrometer built-in force limiter ensures accurate and repeatable readings.


    Applications

    SISCO inside micrometers is an instrument for making precise linear measurements of dimensions such as diameter, thickness, and lengths of solid bodies. 3 point internal micrometers are mainly used to measure inside dimensions like the inside diameter of a hole or tube, widely used in mechanical engineering, machining and most mechanical industries for accurate measurement of parts.

    Dial bore gauge application

    Specs
    • Model: SISCO-SHAN-87100
    • Range: 87~100mm
    • Types: 3-Point Internal Micrometer
    • Material: Bearing Steel
    • Measurement Type: Internal Diameter Measurement
    • Resolution: 0.005mm
    • Extension rod length: 150mm
    • Scale Process: Laser Scale
    • Accuracy: 0.004/0.005mm
    • Package: Plastic Box
    FAQs

    Q1: What is an inside micrometer?
    A1: An inside micrometer is a device designed to precisely measure things such as the inner diameter of holes. They look like fountain pens with a rotating thimble in the middle. Every time the thimble is turned, the micrometer expands. The thimble expands until the end of each tool touches the inside of the pipe, then a numbering system is used to find the measurement on the thimble.

    Q2: How does an inside micrometer work?
    A2: The picture below shows a 3-point inside micrometer with a measuring range of 11~14mm. When the force measuring device 6 is rotated clockwise, it will drive the micrometer screw 3 to rotate and make it move along the helical direction of the threaded sleeve 4, so the square conical thread at the end of the micrometer screw will push the three measuring jaws 1 For radial movement. The elastic force of the torsion spring 2 makes the measuring claw fit tightly on the square conical thread, and expands and contracts with the advance and retreat of the micrometer screw. The radial pitch of the square conical thread of the 3-point internal diameter micrometer is 0.25mm. When the force-measuring device rotates clockwise for one revolution, the measuring jaw 1 will move outward (radially) by 0.25 mm, and the diameter of the circle formed by the three measuring jaws will increase by 0.5 mm. When the microtube rotates once, the measurement diameter increases by 0.5mm and 100 equal divisions are engraved on the circumference of the microtube, so its reading value is 0.5mm÷100=0.005mm. This is how an inside micrometer works.

    Inside micrometer working principle

    Tips for using a 3-point inside micrometer

    • Attention must be paid to the temperature during measurement, and avoid excessive measurement time and large-area contact with the inside micrometer by hand during the measurement process. Especially when measuring large dimensions.
    • Since the 3-point inside meridian micrometer does not have a force-measuring device, it is necessary to master the force-measuring size. Just touch the surface to be measured to avoid damage to the micrometer or causing large errors due to excessive rotational force.
    • When measuring the pore diameter with a 3 point inside micrometer, the surface to be measured must be wiped clean and each section must be carried out in at least two directions perpendicular to each other, and the number of sections should be appropriately increased for deep holes.
    • In order to improve the measurement accuracy, the use of the correction value of the inside micrometer should be considered.
    • For correct reading, you must face up to the measuring tool reading device, and you cannot squint.
    • The inside diameter micrometer avoids high temperatures and direct sunlight radiation and should be maintained frequently.
