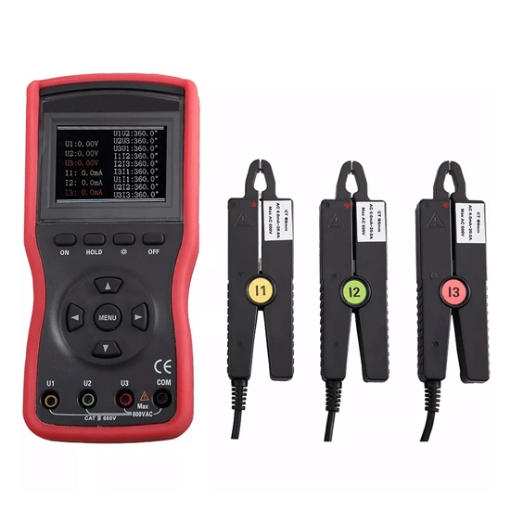

    3 Phase Digital Volt Amp Meter, 0V~600V, 0.0mA~20.0A

    Intelligent 3 phase volt amp meter with three Φ8mm clamps, can simultaneously measure three AC currents, voltages and phases without disconnecting the measured circuit. Current range 0mA~20A, Voltage range 0~600V. Digital volt ampere meter is equipped with a high insulation sheath, safe and stable, USB interface can store 500 sets of data and online real-time monitoring and historical query.
    SKU: SISCO-VAM-6203
    $737.53
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    High-quality digital volt amp meter with three Φ8mm clamps, which is suitable for testing occasions with thick wires and high currents. 0~600V voltage range and 0mA~20A current range, USB interface for uploading data, color LCD screen, high-insulation sheath. 3 phase volt amp meter is widely used in electric power, petrochemical, metallurgy, scientific research institutions, etc.

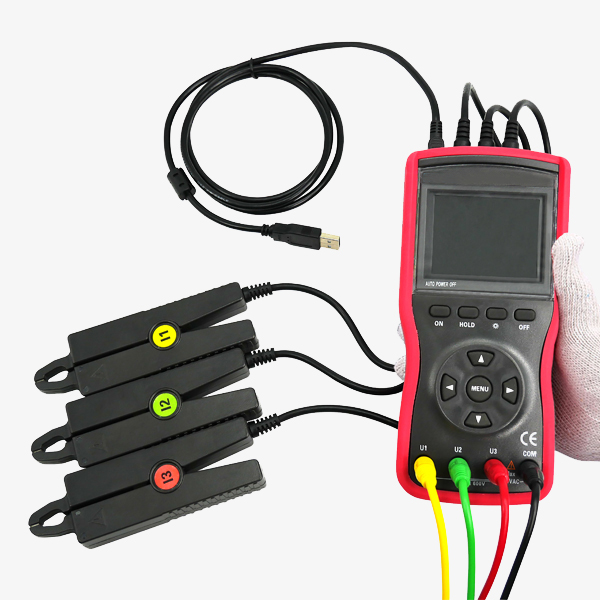

    3 phase volt amp meter

    3 Phase Volt Amp Meter, Current 20A, Voltage 600V, Φ8mm CT size, USB interface for uploading the data.

    • The volt amp meter has an intelligent design to reduce the complexity of the operation, and reduce the possibility of misoperation, with high precision, high stability, low power consumption, ease to use and other advantages.
    • Digital volt amp meter features voltage transformer and current clamp to input, no high voltage inside the meter, complete isolation between 2 input channels, safe and reliable. The small sharp clamp is suitable for a flat cable-dense site.
    • The test wire of volt ammeters adopts a special electric power cable, and all the plugs of the spring rod and crocodile clip have insulated protection. The meter is insulated with a nonslip sheath.
    • sisco volt ampere meter is equipped with a USB interface and 500 groups of data storage. Through the system software uploads the storage data to a computer, convenient for reading, saving, reporting, printing historical data, etc.

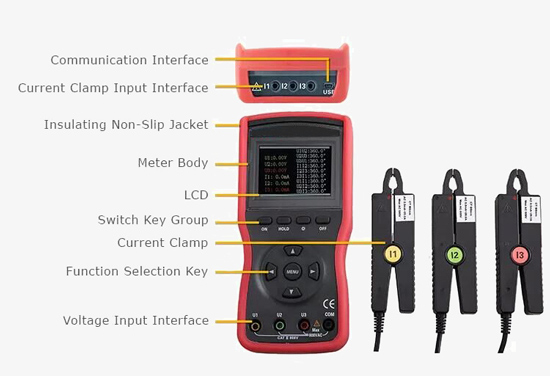

    Details3 phase volt amp meter details

    Applications

    3 phase digital volt amp meters can directly measure AC voltage, AC current, between two voltages, between two currents, and the phase between voltage and current and power frequency. sisco volt amp meters are suitable for electric power, petrochemical, metallurgy, railway, meteorology, industrial and mining enterprises, scientific research institutions, measurement departments, etc., especially for electric energy billing systems and relay protection systems.

    Volt amp meter applications

    Specs
    Model SISCO-VAM-4300
    Clamp Size Φ8mm
    Weight 1310g
    Voltage Range AC 0.00V~600V Error: ±(0.5% range)
    Current Range AC 0.0mA~20.0A Error: ±(0.5% range)
    Phase Range 0.0°~360.0° Error: ±1°
    Frequency Range 45.00Hz~65.00Hz Error: ±(1.0 % range)
    Active power Range 0.0W~12kW Error: ±(1.0 % range)
    Reactive power Range 0.0var~12kvar Error: ±(1.0 % range)
    Apparent power Range 0.0VA~12kVA Error: ±(1.0 % range)
    Power factor Range -1.000~1.000 Error: ±0.03
    Current vector and range 0mA~60.0A
    Power Supply DC9V Alkaline battery (LR6 1.5V Ax6)
    Display Mode TFT color LCD screen 240dots x 160dots,display field: 58mm x 44mm
    Meter Dimension 196mmx92mmx54mm
    Detection Rate About 2 seconds/times
    Data Storage 500 groups
    Data Hold In testing, press HOLD key to hold the data, "HD" symbol display
    Phase Sequence Positive phase: U1, U2, U3 or I1, I2, I3 cursors flash from left to right
    Invert phase: U1, U2, U3 or I1, I2, I3 cursor flash from right to left
    Communication Interface USB interface, store data can be upload to computer, convenient to analyze management data
    Cable Length Test wire length: 1.5M; Current clamp Length: 2M
    Auto Shut Down 15 minutes after boot up, the meter shuts down automatically without any operation
    Voltage Detection When the battery voltage is lower than 7.2V, low battery symbol appears, reminding replace battery
    Input Impedance est voltage input impedance: 1MΩ
    Working Current Max power consumption of open backlight: 135mA
    Meter power consumption of close backlight:90mA
    Accessories Host: 1PCS; Current Clamp: 3PCS; Test wire: 4PCS; USB communication cable: 1PCS; Meter case: 1PCS
    FAQs

    Q1: What is a volt amp meter?
    A1: A digital volt amp meter is a high-precision, low-consumption, low-cost, portable, handheld, dual-channel input measuring instrument, specially designed for measuring voltage, current and phases on-site.

    Q2: How a volt amp meter works?
    A2: The volt-ampere meter adopts the clamp conversion method to input the measured current, so there is no need to disconnect the measured line during measurement. When measuring the phase between U1-U2, the two input circuits are completely insulated and isolated, thus completely avoiding the short circuit of the measured line caused by miswiring and burning the measuring instrument. This is the working principle of volt ammeters.

    Q3: What can a volt amp meter do?
    A3: When the circuit under test is not open, the volt ammeter can simultaneously measure two AC voltages, currents, phases between voltages, phases between currents, phases between voltages and currents, frequency, phase sequence, active power, reactive power, apparent power, power factor, etc., the volt amp meter can also identify the transformer wiring group, inductive and capacitive circuits, test the secondary circuit and bus differential protection system, read the phase relationship between the CTs of the differential protection groups, and check the watt-hour meter wiring and line equipment.

    Tips: 3 phase volt amp meter functions

    1. The volt ammeter can detect the phase relationship between each group of CTs in the relay protection
    2. Check whether the wiring of the watt-hour meter is correct or not.
    3. The volt amp meter judges the running speed of the watt-hour meter.
    4. Identify inductive and capacitive circuits.
    5. The meter can check the transformer wiring group.
    6. It can be used to measure the current and voltage phases in the production of electrical equipment.
    7. It can be used as a leakage current meter.
