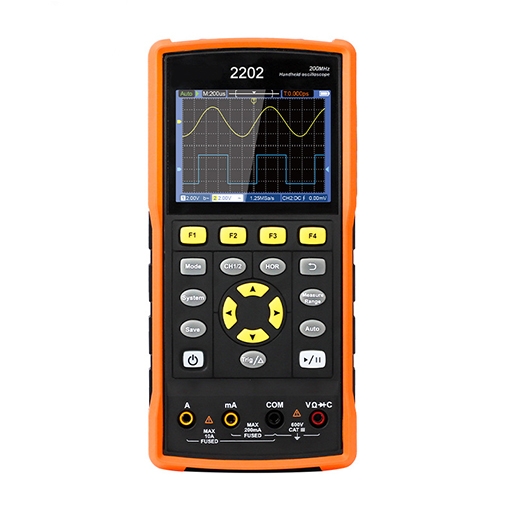

    200MHz Digital Oscilloscope Multimeter

    The digital oscilloscope multimeter with 200MHz bandwidth, 2 channels, real-time sampling rate of 1GSa/s, 10000 wfms/s waveform refresh rate, vertical sensitivity of 10mV/div~10V/div. The 2 in 1 handheld digital oscilloscope multimeter with LED backlighting which is more clear and suitable for working at night.
    SKU: SISCO-OM-2202
    $535.38
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview

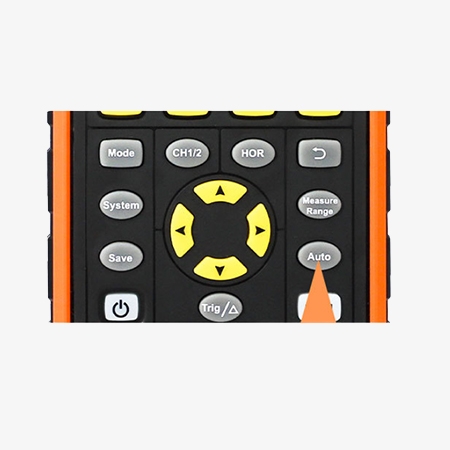

    SISCO 200MHz digital multimeter has a one-click visual wave, there are three waveform scanning modes: automatic/conventional/single.The portable multimeter oscilloscope is suitable for students in science labs, engineers, scientists and factories, etc.

    70MHz digital oscilloscope multimeter detail

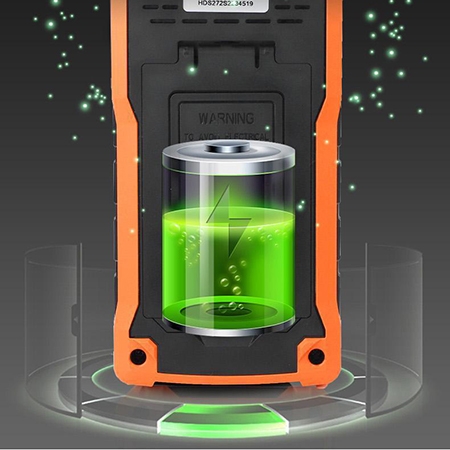

    A digital oscilloscope multimeter with a battery has a large energy life.

    • Using an 18650 lithium battery, the comprehensive power consumption is ≤3W.
    • The digital multimeter can work continuously for about 6 hours.

    70MHz digital oscilloscope multimeter detail

    Portable oscilloscope multimeter with comprehensive trigger modes

    • Auto trigger: Automatically trigger periodic signals, such as sine waves.
    • Normal trigger: Test digital logic signals, such as infrared remote control signals.
    • Single trigger: Test sudden non-periodic signals, such as car ignition signals.

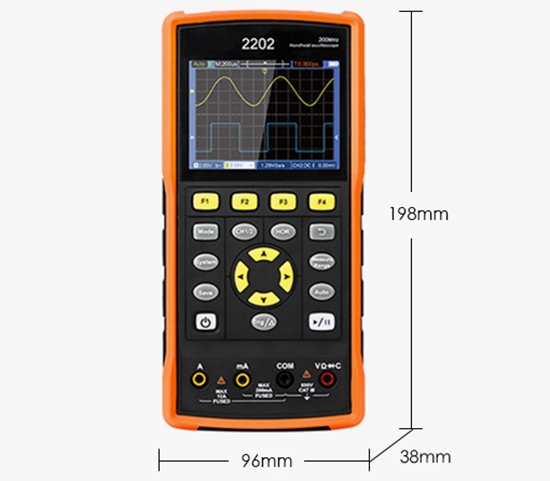

    Dimension

    200MHz digital oscilloscope multimeter size

    Applications

    SISCO oscilloscope multimeter is a versatile tool used in various applications, including electronics repair, electrical maintenance, car repair and laboratory testing. It measures voltage, current, and resistance, and often includes additional features such as capacitance, frequency, and temperature measurement. Its precision and multifunctionality make it essential for diagnosing and troubleshooting electrical issues in both professional and educational settings.

    Digital multimeter for car repair

    Car Repair

    Digital multimeter for electronics repair

    Electronics Repair

    Digital multimeter for laboratory testing

    Laboratory Testing

    Digital multimeter for electrical maintenance

    Electrical Maintenance

    Specs



    Model SISCO-OM-2202
    Oscilloscope Technical Specification
    Wideband 200MHz
    Number of Channels 2
    Sampling Method Normal, peak sampling
    Real-time Sampling Rate 1GSa/s
    Record Length Single Channel: up to 8k; Dual Channel: 4k
    Waveform Refresh Rate 10000 wfms/s
    Input Coupling DC, AC, ground
    Input Impedance (DC Coupling) 1 MΩ±2%, in parallel with 16pF±pF
    Probe Attenuation Factor 1X,10X, 100X, 1000X
    Time Base Range 5ns/div~1000s/div, step by 1-2-5
    Vertical Sensitivity 10mV/div~10V/div
    Vertical Resolution  8 bit
    Cursor Measurement Voltage difference between cursors, time
    Automatic Measurement Period/Frequency/Amplitude/Peak/Maximum/Minimum/Average/RMS value/Rise time/Fall time/Positive pulse width/Negative pulse width
    Trigger Type Edge trigger
    Trigger Mode Auto, Normal, Single
    Multimeter Technical Specifications
    Function Range Accuracy
    DC Voltage 200mV ±(0.05%+5 dig)
    2V/20V/200V ±(0.3%+3 dig)
    1000V ±(0.5%+2 dig)
    AC Voltage (V) 200mV/2V/20V/200V ±(0.8%+5 dig)
    750V ±(1%+5 dig)
    AC Current 200mA ±(0.8%+2 dig)
    10A ±(2.5%+2 dig)
    DC Current 200mA ±(1%+5 dig)
    10A ±(2.8%+5 dig)
    Resistance 200Ω/2kΩ/20kΩ/200kΩ/2MΩ ±(0.8%+3 dig)
    20MΩ ±(1%+3 dig)
    100MΩ ±(3%+3 dig)
    Capacitance 20nF/200nF/2㎌/20㎌ ±(3%+3 dig)
    200㎌/2mF
    Continuity test
    Diode test
    Auto range
    True RMS
    FAQs

    Q1: What is an oscilloscope multimeter?
    A1: An oscilloscope multimeter combines the functions of a digital multimeter (DMM) with those of an oscilloscope, allowing it to measure standard electrical parameters like voltage, current, and resistance, while also visualizing waveform signals for more detailed analysis of electrical behavior.

    Q2: How does an oscilloscope multimeter differ from a regular digital multimeter?
    A2: While a regular digital multimeter measures and displays numerical values for electrical parameters, an oscilloscope multimeter can also display real-time waveform signals, providing a visual representation of signal characteristics such as frequency, amplitude, and noise, which is crucial for diagnosing complex electrical issues.

    Q3: How do I interpret the waveform display on an oscilloscope multimeter?
    A3: Interpreting the waveform display involves understanding key parameters such as amplitude (peak voltage), frequency (repetition rate of the waveform), and shape (sine wave, square wave, etc.). The oscilloscope multimeter’s manual or user guide typically provides detailed instructions on how to read and analyze these waveforms.

    Tips: What are the primary uses of a 200MHz digital oscilloscope multimeter?

    A 200MHz digital oscilloscope multimeter is primarily used for capturing and analyzing high-frequency signals up to 200MHz, making it ideal for applications such as debugging high-speed digital and analog circuits, testing communication systems, and performing detailed signal integrity analysis. The high bandwidth allows for precise visualization of rapid signal changes, which is crucial for diagnosing complex electronic issues. Combining the functionalities of an oscilloscope and a digital multimeter, this device provides comprehensive measurement capabilities, including accurate readings of voltage, current, and resistance, alongside real-time waveform analysis. This integration makes it an invaluable tool for professionals in research and development, electronics engineering, and advanced troubleshooting tasks, offering both precision and versatility in a single, portable instrument.
