Thickness Gauges

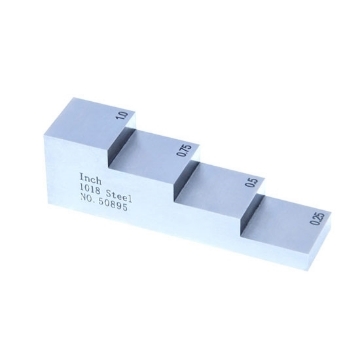

Ultrasonic thickness calibration block is designed for ultrasonic thickness gauge. 4 step, 5 step, 6 step and 10 step blocks for selection, available in both mm and inch units. High quality calibration block is made of 1018 steel, with a durable ABS carrying case, suitable for sisco ultrasonic thickness gauges.

Digital ultrasonic thickness tester for sale online. It is available with live A-Scan & time-based B-Scan, total measuring range 0.6mm-508mm, high resolution 0.01mm or 0.001 inches, material velocity range 500 to 9999 m/s (0.0197 to 0.3939 in/μs), large OLED color display. Through coating thickness measurement is also provided. Ultrasonic thickness gauge is ideal for testing the thickness of metal, pipe, steel, PVC, etc.

Digital ultrasonic thickness gauge is used for measuring the thickness of metal, pipe, steel, etc., with a total measuring range from 0.6mm to 508mm, high resolution 0.01mm or 0.001 inches, material velocity range 500 to 9999 m/s (0.0197 to 0.3939 in/μs), A-scan display view, update rate 4Hz/8Hz/16Hz, high/medium/low gain, OLED color display. Through-painting thickness measurement is also available. High accuracy ultrasonic thickness tester is easy to operate and carry.

Digital coating thickness gauge for sale online with 0-1300μm measuring range, ±3%+2μm accuracy, and 0.1μm resolution. The paint thickness tester can be measured quickly and accurately without damage which is an ideal measuring tool for laboratories, workshops and outdoors.

High-accuracy 0-1500 coating thickness gauge ±3% high accuracy, 0.1μm resolution and a large 2.2-inch LCD screen. Paint thickness tester has light weight and fits comfortably in the hand, and is also equipped with large buttons for working with gloves.

High-quality coating thickness gauge with 0-1700μm measuring range, which has a resolution of 0.1μm and 20 sets of data storage. The thickness gauge accurately measures on surfaces of any shape- concave, rough and convex, thanks to the dynamic design of the measuring sensor.

Paint thickness gauge is designed for 0-1800μm thickness measurement, which comes with 0.05mm/ 2mil resolution car mode and 0.01mm/ 1mil resolution user modes. The paint thickness gauge has zero point calibration/ two-point calibration two calibration methods. The paint thickness tester can be measured quickly and accurately without damage.

The coating thickness gauge is a highly accurate and compact instrument for non-destructive, fast, high-accuracy coating thickness measurement. Paint thickness gauge with measurement ranges 0-1500μm, 0-2000μm, 0-3000μm, and 0-10000μm are available. High-standard paint thickness tester has a case is made of high-quality plastic with a shockproof rubber cover for increased durability.

Hot selling digital ultrasonic thickness gauge can perform high-precision thickness measurements of thin plates, steel plates and other thin materials, as well as coating thickness. It offers 0.001mm resolution, 500 to 9999 m/s (0.0197 to 0.3939 in/μs) material velocity range, a big and clear OLED screen, and multi-measuring mode to make the readings more accurate and reliable.

Handheld ultrasonic thickness gauge is available with a 1mm~100mm measuring range with a standard probe and high resolution of 0.01mm or 0.001 inches, material velocity range of 1000~9999m/s (0.0394 to 0.3937in/μs), and backlit LCD display. High precision ultrasonic thickness tester is used for the thickness measurement of metal, pipe, steel and other materials, and also for coating thickness measurement.

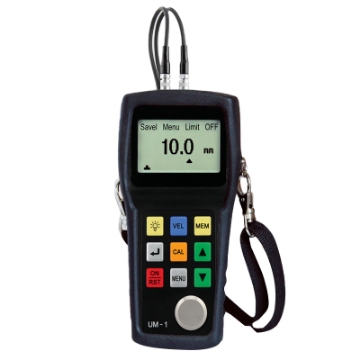

Portable ultrasonic thickness gauge for sale online, is designed for measuring the thickness loss of pipes after corrosion, also available with through paint coating function. Handheld ultrasonic thickness tester features 1mm~100mm measuring range with the standard probe, 0.1mm or 0.001 inches resolution, 1000~9999m/s (0.0394 to 0.3937in/μs) material velocity range. LCD display with backlight is able to store 500 thickness readings.
