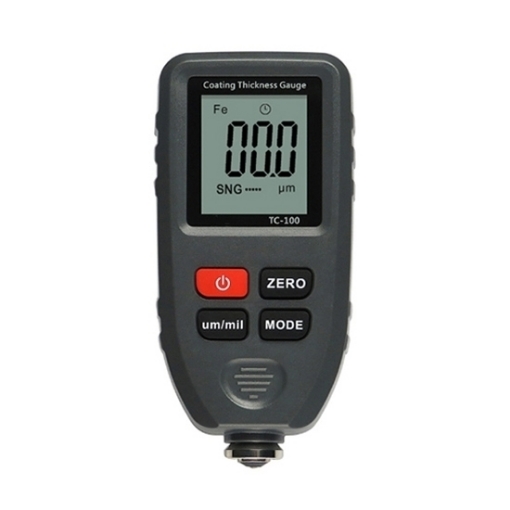

Digital Coating Thickness Gauge, 0-1300 μm

Digital coating thickness gauge for sale online with 0-1300μm measuring range, ±3%+2μm accuracy, and 0.1μm resolution. The paint thickness tester can be measured quickly and accurately without damage which is an ideal measuring tool for laboratories, workshops and outdoors.
SKU: SISCO-DCTG-1300
$140.76
i h
Free shipping
Delivery date: 7-12 days
Overview


Buy 0-1300 μm coating thickness gauge online. The paint thickness tester has a 0-1300μm measuring range, ±3%+2μm accuracy, and 0.1μm resolution. Automatic shutdown without operation, more convenient and worry-free to use.

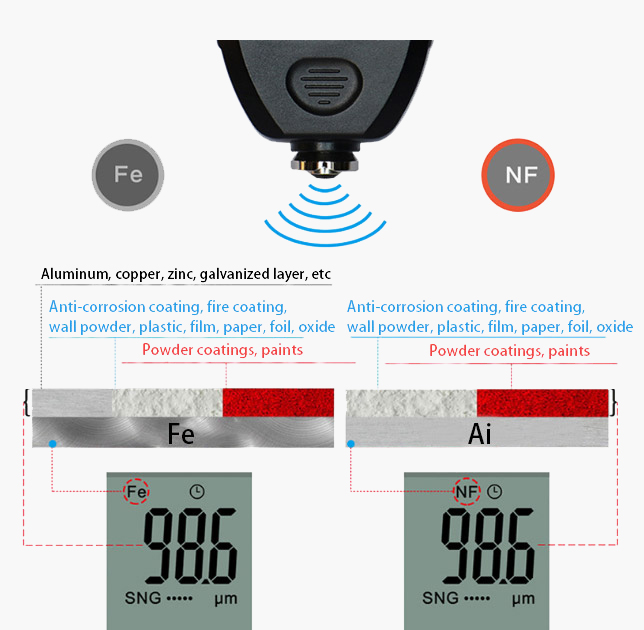

Detail of 0-1300 um digital coating thickness gauge

HD backlight display screen design

  • HD screen with backlight display
  • Soft silicone keys for durability
  • Simple and clear operation interface

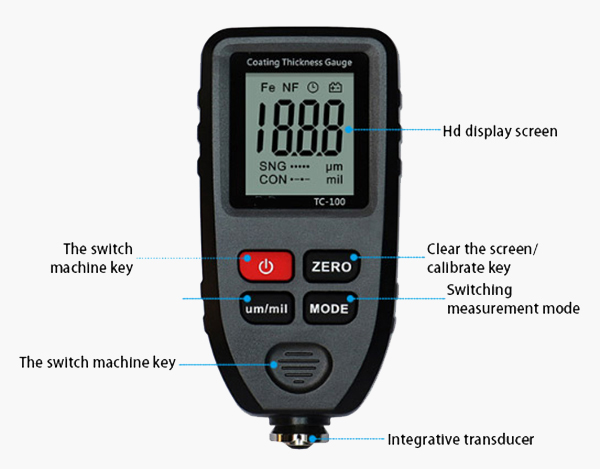

0-1300 um digital coating thickness gauge detail

Safety material

  • Adopt anti-corrosion coating, fireproof coating, safer to use
  • Adopt high-precision probe, iron and aluminum dual-use type

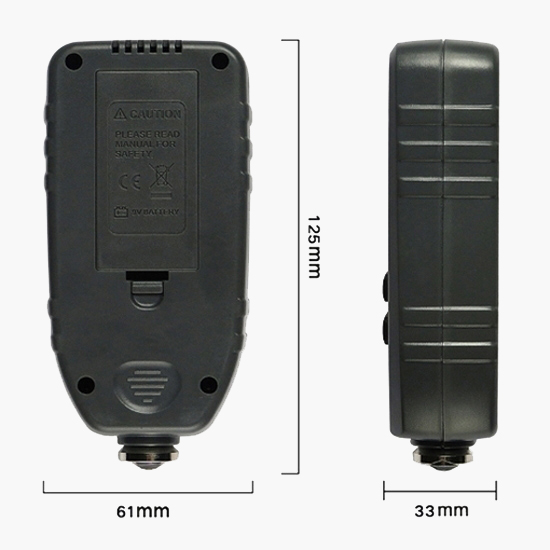

Dimension Unit (mm)

0-1300 um digital coating thickness gauge dimension

Application

The thickness measurement of the cladding is the most important process of quality inspection implemented in the metal processing industry. The coating thickness gauge perfectly handles these situations and fully enhances the manufacturing efficiency, so it is widely used in metal processing, chemical industry, commercial inspection, electroplating, spraying, aluminum profiles, steel structure, etc. It is also suitable for shipbuilding, aerospace, electric power, pot special inspection, technical supervision and other industries.

Application of digital coating thickness gauge

Specs



Model SISCO-TC-100
Sensing Probe Ferromagnetism Non-Ferromagnetic
Working Principle Electromagnetic Induction Eddy Current Effect
Measuring Range 0-1300μm 0-1300μm
Accuracy ±3%+2μm ±3%+2μm
Resolution 0.1μm 0.1μm
Minimum Thickness 0.5mm 0.3mm
Minimum Curvature Radius 1.5mm
Minimum Measuring Area (Diameter) 6mm
Unit μm/ mil
Power Supply 9V
Operating Environment Temperature: 0-40℃ (32-104°F)
Humidity: 20%-90%RH
No Strong Magnetic Field
Dimensions 125mm*61mm*33mm
Net Weight 0.1kg
Package Weight 0.4kg
FAQs

Q1: Is laser distance meter accurate?
A1: The laser measure is accurate to within 1/8" and measures to 50 feet. It makes this measuring tool more accurate, easier and faster than a tape measure.

Q2: How do I choose a laser distance meter?
A2: Most lasers measurers are easy to fit into the palm of your hand, but some are bigger than others. If you have small hands and want a small unit that is easily controlled, or if you have big hands and need a larger laser for ease of use, check on the exact size of any model you are considering.

Q3: Do laser distance meter work outside?
A3: If you work outside, an optical scope or digital point finder is a must. Without a scope or a point finder, you can see a laser point at a maximum distance of about 30 feet on a bright day. Chances are, if you are measuring outside, 30 feet isn't going to cut it.

Tips: What is digital coating thickness gauge?

Digital coating thickness gauges are ideal to measure coating thickness on metallic substrates. Electromagnetic induction is used for non-magnetic coatings on ferrous substrates such as steel, whilst the eddy current principle is used for non-conductive coatings on non-ferrous metal substrates. It can non-destructively measure the thickness of non-magnetic covering layers (such as aluminum, chromium, copper, enamel, rubber, paint, etc.) on magnetic metal substrates (such as steel, iron, alloy and hard magnetic steel, etc.) and non-magnetic metal substrates (such as copper , aluminum, zinc, tin, etc.) on the non-conductive coating thickness (eg: enamel, rubber, paint, plastic, etc.). This instrument can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields. It is an essential instrument for material protection professionals.
