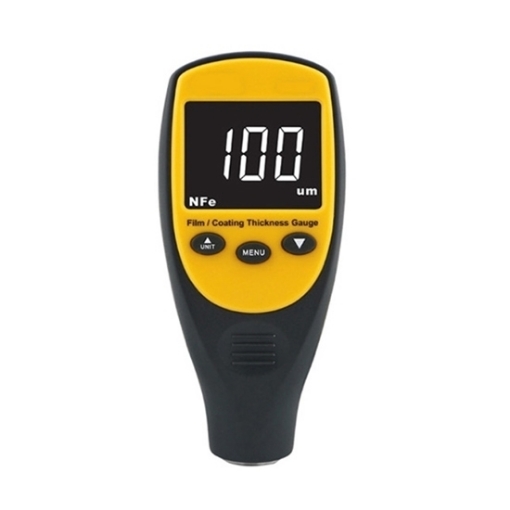

    Digital Coating Thickness Gauge, 0-1700 μm

    High-quality coating thickness gauge with 0-1700μm measuring range, which has a resolution of 0.1μm and 20 sets of data storage. The thickness gauge accurately measures on surfaces of any shape- concave, rough and convex, thanks to the dynamic design of the measuring sensor.
    SKU: SISCO-DCTG-1700
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days

    0-1700 μm coating thickness gauge equipped with a large 2.2' display with ice backlight. Paint thickness gauge designed with dual technology, the non-destructive coating thickness tester takes the guesswork out of testing surface coatings by providing automatic recognition for both ferrous and non-ferrous substrates.

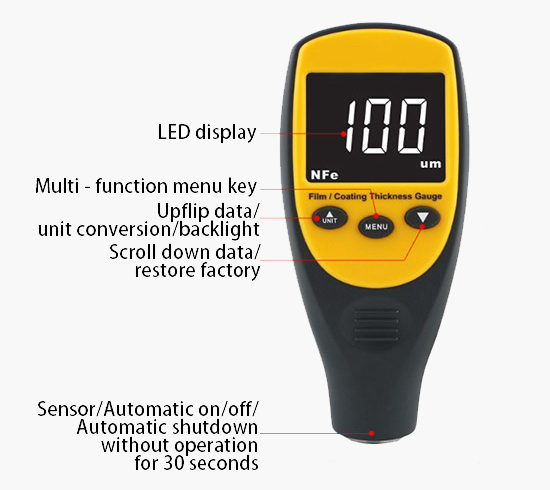

    Detail of 0-1700 um digital coating thickness gauge

    High-performance appearance

    • Soft silicone keys for durability
    • Simple and clear operation interface
    0-1700 um digital coating thickness gauge detail

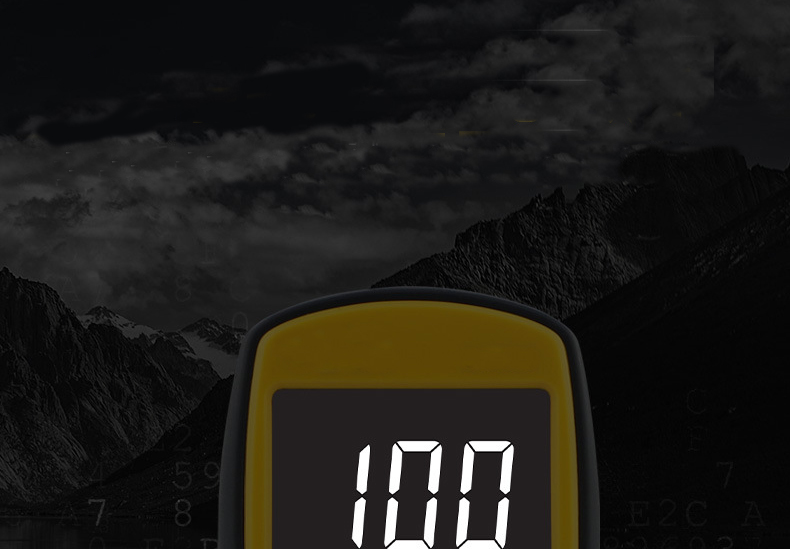

    HD backlight display screen design

    • HD screen with backlight display
    • Accurate reading even in the dark

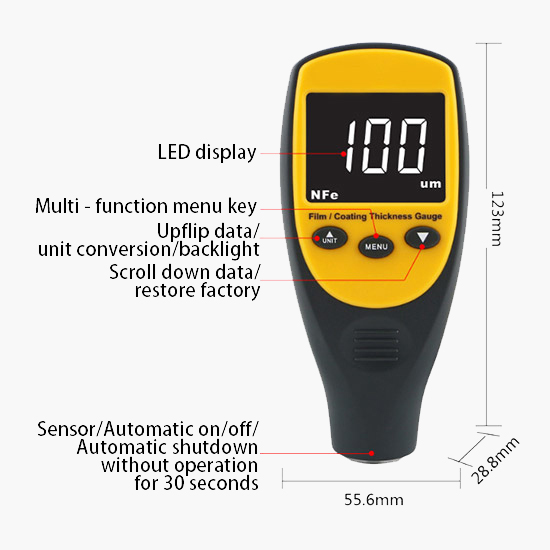

    Dimension Unit (mm)

    0-1700 um digital coating thickness gauge dimension


    The thickness measurement of the cladding is the most important process of quality inspection implemented in the metal processing industry. The coating thickness gauge perfectly handles these situations and fully enhances the manufacturing efficiency, so it is widely used in metal processing, chemical industry, commercial inspection, electroplating, spraying, aluminum profiles, steel structure, etc. It is also suitable for shipbuilding, aerospace, electric power, pot special inspection, technical supervision and other industries.

    Application of digital coating thickness gauge



    Basic Specification
    Model SISCO-AR9332
    Measuring Range 0-1700μm
    Accuracy ± (1+3%H) μm
    Minimum Measuring Area Magnetic: 25x25mm/ Not Magnetic: 25x25mm
    Minimum Curvature 30mm Concave/ 5mm Convex
    Minimum Thickness Magnetic: 0.2mm/ Not Magnetic: 0.05mm
    Data Storage 20 Groups
    Work Environment 0-50℃
    Power Supply 2*1.5V AAA Batteries
    Dimension 123*55.6*28.8mm
    Net Weight 0.2kg
    LCD Display
    Low Battery Reminder Function
    Zero Point Calibration
    Single/ Continuous Measurement
    Auto Power-off
    Unit Conversion

    Q1: Is laser distance meter accurate?
    A1: The laser measure is accurate to within 1/8" and measures to 50 feet. It makes this measuring tool more accurate, easier and faster than a tape measure.

    Q2: How do I choose a laser distance meter?
    A2: Most lasers measurers are easy to fit into the palm of your hand, but some are bigger than others. If you have small hands and want a small unit that is easily controlled, or if you have big hands and need a larger laser for ease of use, check on the exact size of any model you are considering.

    Q3: Do laser distance meter work outside?
    A3: If you work outside, an optical scope or digital point finder is a must. Without a scope or a point finder, you can see a laser point at a maximum distance of about 30 feet on a bright day. Chances are, if you are measuring outside, 30 feet isn't going to cut it.

    Tips: Digital coating thickness gauge troubleshooting?

    • The display value of the dry film thickness gauge is unstable: The display value of the paint thickness gauge is unstable, mainly due to the particularity of the material and structure of the workpiece itself. If the workpiece is a conductor, we have to choose an eddy current coating thickness gauge. In addition, the surface roughness and attachments of the workpiece are also one of the reasons for the instability of the display value of the car paint thickness gauge, such as excessive surface roughness of the workpiece and too many surface attachments. The method of troubleshooting is to smooth the workpiece with relatively large roughness and remove the attachment.
    • The measurement result error is too large: The main reasons for the large measurement error of the coating thickness meter are Base metal magnetization, too small base metal thickness, edge effects, too small curvature of the workpiece, excessive surface roughness, magnetic field interference, and incorrect placement of the probe, etc.
    • The paint thickness gauge does not display numbers: Check whether the battery is fully charged. If the measurement still does not display the value after determining that the battery is fully charged, consider replacing the paint thickness meter with a new one.
