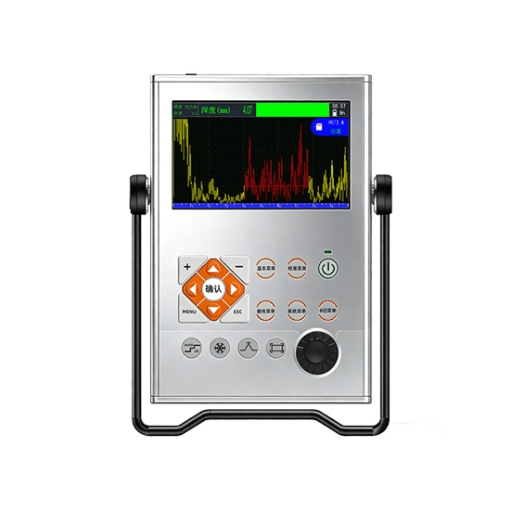

The ultrasonic case depth tester enables fast and accurate case depth inspection without damaging the tested parts, making it an ideal solution for evaluating carburized, nitrided, induction-hardened, and other heat-treated materials. With digital display, simple operation, and excellent measurement stability, it supports engineers, technicians, and inspectors in non-destructive material analysis.

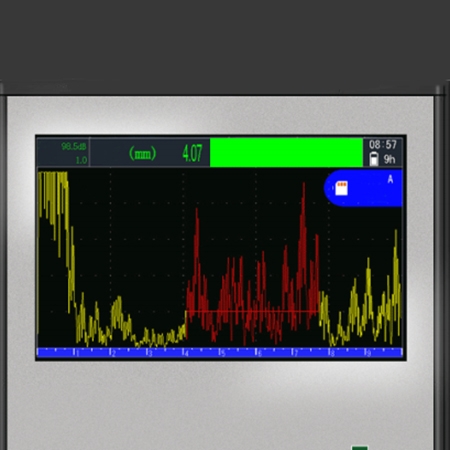

High-Resolution Touchscreen Display
- 5.0-inch High-Resolution IPS LCD Touchscreen
- 800 × 480 pixel display for clear waveform visualization and measurement data analysis
- Full touchscreen operation with intuitive interface for convenient parameter setting and testing control
- Wide viewing angle IPS display ensures excellent visibility under different working conditions
Multi-Probe Compatibility for Various Workpiece Sizes

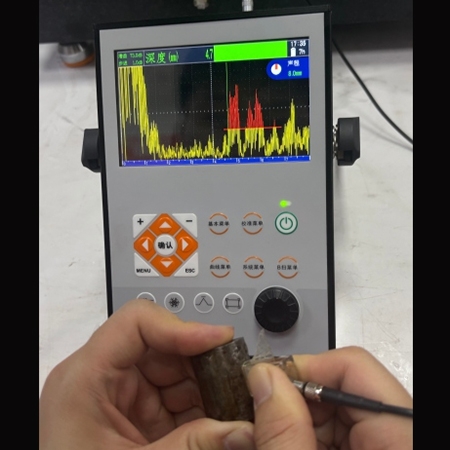

- Supports multiple ultrasonic probes with different wedge configurations to adapt to various workpiece shapes and sizes
- Interchangeable wedges enable flexible inspection of components with different surface conditions, geometries, and measurement requirements
- Provides accurate case depth measurement for small precision parts as well as large industrial components
- Improves testing versatility by allowing users to select the appropriate probe and wedge combination for different applications
Applications
Key application fields of SISCO ultrasonic thickness gauge:
- shipbuilding
- aerospace
- automotive industries
- material integrity
- compliance with safety standards
Shipbuilding Industry
Automobile Manufacturing
Metal Processing
Aviation Industry
| Model | SISCO-UTG-HTG500 |
| Bandwidth | 0.1 MHz – 20 MHz |
| Filters | Low-pass, band-pass, high-pass |
| Gain | 120 dB, adjustable steps: 0.1 / 0.6 / 1 / 2 / 6 dB |
| Sampling Rate | Hardware: 100 MSPS; Equivalent: 400 MSPS |
| Detection Modes | Full wave, positive half wave, negative half wave, RF |
| Measurement Range | Up to 1 m (velocity 2280 m/s); Resolution: 1 mm / 0.1 mm |
| Sound Velocity Range | 400 – 10,000 m/s |
| Pulse Repetition Frequency | 100 – 2000 Hz |
| Damping | Adjustable (high / low) |
| Probe Channels | 180 channels (create, preview, restore, overwrite, delete, rename) |
| Gate Alarm | Gate A / B alarm, loss of echo / echo detection |
| Gate Modes | Independent Gate A & Gate B |
| Measurement Modes | Peak value, leading edge |
| Storage Functions | Channel management (import/export), inspection reports (PC software export), single waveform data, multi-waveform recording (<500 frames), screenshot storage |
| Waveform Display | Original waveform, envelope curve |
| Operation Method | Function buttons + rotary encoder |
| Professional Functions | Auto gain, waveform memory, waveform freeze, gate alarm, color B-scan |
| Auxiliary Functions | Auto calibration, digital noise suppression, capture markers |
| Language | Simplified Chinese, English |
| Display | 5.0" IPS LCD, 800 × 480 resolution |
| Probe Interface | Dual LEMO-00 C5 |
| Output Interface | Type-C, Mini USB |
| Data Storage | 16GB TF card |
| Charger | 65W PD fast charger, Type-C (100–240V, 50–60Hz) |
| Operating Temperature | -10°C – 55°C |
| Relative Humidity | 20% – 95% RH |
| Units | Metric / Imperial |
| Size | 194*131*35mm |
| Weight | 1kg |
Q1: What is an ultrasonic thickness gauge?
The ultrasonic thickness gauge is improved based on the principle of ultrasonic measurement. It can measure the thickness of metals and other materials and can measure the sound speed of the material. The sisco ultrasonic thickness gauge is a portable thickness meter that can measure the thickness of various pipes and pressure vessels in production equipment, as well as accurately measure various sheets and machined parts.
Q2: How does an ultrasonic thickness gauge work?
sisco ultrasonic thickness gauge offers through-coating thickness measuring capability. It measures the thickness of an object by precisely calculating the times the probe sends an ultrasonic pulse to the object and passes through the object until the probe receives the reflection from the boundary. The ultrasonic pipe thickness gauge adopts the most advanced microprocessor and ultrasonic technology and has the characteristics of zero drift, reliable and stable reading, and no need for zero calibration. You can now test painted objects without removing paint or correcting paint thickness.
Q3: 4 Measurement methods of ultrasound thickness gauge
- Single-point measurement method: It means that the ultrasound thickness gauge is used to measure any point of the measured material with a probe, and the display value is the thickness value.
- Two-point measurement method: The ultrasound thickness meter is used to make two measurements at the same point of the measured material with a probe. In the second measurement, the probe's split surface is 90 degrees, and the smaller value in the two measurements is the thickness value.
- Multi-point measurement method: When the measurement value is unstable, take a measuring point as the center and make multiple measurements in a circle with a diameter of about 30 mm. The minimum value is the thickness value.
- Continuous measurement method: It uses a single-point measurement method to measure continuously along a designated line with an interval of not less than 5 mm. The minimum value is the thickness value.
Tips: How does an ultrasonic case depth tester work?
An ultrasonic case depth tester works by transmitting high-frequency ultrasonic waves into a metal component and analyzing how those waves reflect back from internal structures. When the sound waves encounter the boundary between the hardened surface layer and the softer core material, part of the signal is reflected due to differences in acoustic properties such as density and elasticity.
The device measures the time it takes for the echoes to return (time of flight) and processes the waveform signals in real time. Using the known sound velocity of the material, it calculates the depth of the hardened layer accurately without damaging the workpiece.
SISCO digital testers also provide real-time waveform display, gate positioning, and signal analysis, allowing users to clearly identify layer boundaries. With different probes and wedges, the instrument can adapt to various workpiece sizes and shapes, ensuring reliable and flexible case depth measurement.
