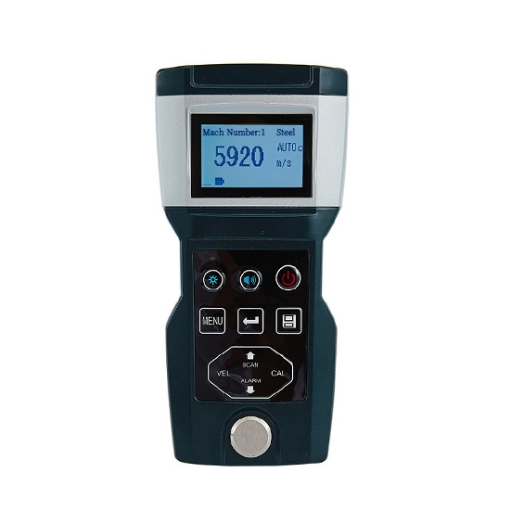

The ultrasonic steel thickness gauge significantly improves on-site work efficiency and is widely used in metal processing, pressure vessels, aerospace, and other fields, making it an ideal choice for industrial testing.
Precise Measurement and Intelligent Technology
- The ultrasonic thickness meter supports multiple measurement modes, including pulse-echo (P-E), interface-echo (I-E), and echo-echo (E-E). It is compatible with a variety of single-element and dual-element probes (such as the S15-P06 and GSM-P10) to adapt to different materials and measurement scenarios.
- The ultrasonic thickness measurement gauge has a measurement range of 0.15–2000mm (depending on the probe), with display accuracy selectable to 0.001mm or 0.01mm. It features sound velocity feedback and real-time velocity compensation, effectively reducing errors caused by temperature fluctuations.
- The ultrasonic thickness gauge supports probe calibration, two-point calibration, and built-in amplitude calibration. It features 16 adjustable gain levels and 7 adjustable emission levels, allowing for optimized measurement results based on actual working conditions and automatically correcting for system errors.
Flexible Customization
- The ultrasonic thickness gauge meter can store 1,000 sets of measurement data (including thickness, sound velocity, time, and other information). It supports Bluetooth/Mini-USB communication, allowing real-time data transmission and remote control (command version) with a PC or smart terminal. It can also be connected to an external printer for output.
- The ultrasonic thickness measuring instrument offers multiple measurement modes, including single-point, scan, limit scan, and differential measurement. It supports auxiliary functions such as a keyboard lock, coupling status prompt, and battery indicator. It can also set automatic upper and lower thickness limit alarms.
- The UT thickness gauge supports hardware customization (such as power supply modification and communication interface adjustment) and protocol customization. It also offers special version features (such as voice announcement, sound velocity classification display, coating measurement, and lower limit measurement) to meet specialized application needs.
Applications
Key application fields of SISCO pen-type electromagnetic ultrasonic thickness gauge include shipbuilding, aerospace, and automotive industries. The compact, pen-style design makes it convenient for on-site inspections and maintenance, particularly in confined spaces or at height. Additionally, the gauge is useful in quality control during manufacturing processes, helping ensure material integrity and compliance with safety standards.
Shipbuilding Industry
Automobile Manufacturing
Metal Processing
Aviation Industry
Â
| Model | SISCO-UT-XTC7 |
| Measurement Range | 0.15-2000mm (refer to the technical parameter table of the probe) |
| Measurement Error | related to probe parameters, refer to the technical parameter table of the probe |
| Display Accuracy | 0.001mm and 0.01mm (optional) |
| Measurement Mode | P-E, I-Eâ‘ , E-Eâ‘ , AUTOâ‘ , E-Câ‘ â‘¡, C-Eâ‘ â‘¡ |
| Measurement Cycle | P-E mode 4 times per second; other modes 2 times per second |
| Speed Range | 1~19999 m/s |
| Sound Velocity Measurement | reverse sound velocity measurement, direct measurement of sound velocity â‘¢ |
| Calibration Function | probe calibration, two-point calibration, built-in calibration test block (steel) |
| Measurement Parameters | 16 gain levels adjustable, 7 transmission levels adjustable |
| Measurement Method | single point measurement, scanning measurement, upper limit scan, lower limit scan, boundary scan, difference measurement, can be set to exceed the limit alarm, can be set to the lower limit â‘£ |

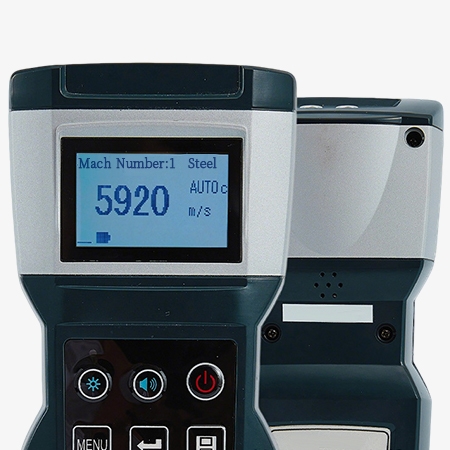

| Screen Display | FSTN LCD display, with cold light source illumination backlight |
| Display Information | thickness, sound velocity, coupling status, effective number of echoes, power status, time, etc |
| Data Storage | 1000 sets of measurement results (5 files, each with 200 sets), including thickness measurements, measurement of sound velocity, measurement time, and other relevant information |
| Data Communication | Bluetooth / Mini-USB interface, virtual serial port communication, support real-time online measurement, support command control⑤, the host program can be upgraded |
| Data Printing | optional portable thermal printer |
| Charging Time | 3~4 hours |
| Working Power | 3.7V rechargeable lithium-ion battery, can work for 80 hours (without Bluetooth, backlight) |
| Automatic Shutdown | automatic shutdown when standby time exceeds (the automatic shutdown time can be adjusted), automatic shutdown when voltage is low (below 3.4V) |
| Environment Temperature | Use temperature: -10 ~ 50 °C, storage temperature: -30 ~ 60 °C |
| Shape Size | 157mm×78mm×37mm |
| Weight | 260g |
| Shell Material | ABS |
| Instrument Box Material | high impact ABS (IK08), waterproof and dustproof (IP67) |
Q1: What is pen-type electromagnetic ultrasonic thickness gauge?
A1: A pen-type electromagnetic ultrasonic thickness gauge is a compact, handheld device designed for non-contact measurement of material thickness. Its pen-like design allows for easy access to tight or hard-to-reach areas. This gauge is ideal for measuring corrosion, erosion, and wear in pipelines, tanks, and structural components.
Q2: How to maintain pen-type electromagnetic ultrasonic thickness gauge?
A2: To maintain a pen-type electromagnetic ultrasonic thickness meter, regularly clean the probe and device housing with a soft, dry cloth to prevent dust and debris buildup. Avoid exposing the gauge to excessive moisture, heat, or corrosive environments. Check battery levels and recharge as needed to ensure accurate operation. Periodically inspect the probe cable for signs of wear or damage. Store the device in a protective case when not in use to prevent accidental damage.
Q3: What materials can be measured using this electromagnetic ultrasonic thickness gauge?
A3: An electromagnetic ultrasonic thickness tester is ideal for measuring the thickness of conductive materials. It can accurately measure metals such as steel, aluminum, copper, and titanium, as well as their alloys.
Tips: Advantages of Ultrasonic Thickness Gauges
The advantage of ultrasonic thickness gauges lies in their ability to perform high-precision nondestructive testing, quickly measuring thickness without damaging the workpiece. They are also flexible, capable of measuring both substrates and through coatings, and compatible with a variety of probes to accommodate diverse materials and geometries. Intelligent temperature drift compensation and calibration functions ensure stable and accurate measurements.
