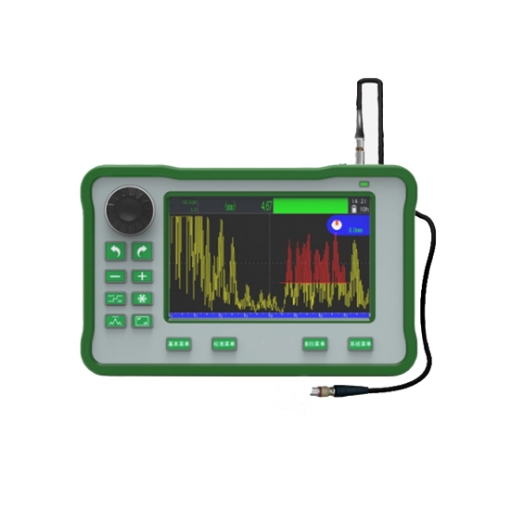

With high measurement accuracy and easy operation, this ultrasonic case depth tester helps manufacturers verify surface hardening processes and improve production quality. Designed for industrial applications, the ultrasonic case depth tester delivers efficient depth analysis for materials treated by carburizing, nitriding, induction hardening, and other surface hardening methods.

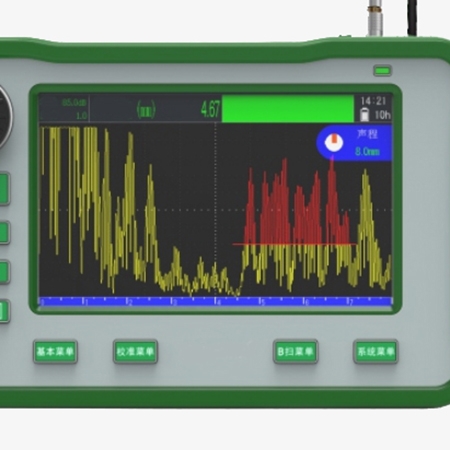

High-Resolution Touchscreen Display
- 5.0-inch High-Resolution IPS LCD Touchscreen
- 1800 × 480 pixel display for clear waveform visualization and measurement data analysis
- Full touchscreen operation with intuitive interface for convenient parameter setting and testing control
- Wide viewing angle IPS display ensures excellent visibility under different working conditions
Multi-Probe Compatibility for Various Workpiece Sizes
- Supports multiple ultrasonic probes with different wedge configurations to adapt to various workpiece shapes and sizes
- Interchangeable wedges enable flexible inspection of components with different surface conditions, geometries, and measurement requirements
- Provides accurate case depth measurement for small precision parts as well as large industrial components
- Improves testing versatility by allowing users to select the appropriate probe and wedge combination for different applications
Applications
Key application fields of SISCO ultrasonic thickness gauge:
- shipbuilding
- aerospace
- automotive industries
- material integrity
- compliance with safety standards
Shipbuilding Industry
Automobile Manufacturing
Metal Processing
Aviation Industry
| Model | SISCO-UTG-HTG1000 |
| Bandwidth | 0.1 MHz – 20 MHz |
| Filters | Low-pass, band-pass, high-pass |
| Gain | 120 dB, adjustable steps: 0.1 dB, 0.6 dB, 1 dB, 2 dB, 6 dB |
| Sampling Rate | Hardware sampling rate: 100 MSPS; Equivalent sampling rate: 400 MSPS |
| Detection Modes | Full wave, positive half wave, negative half wave, RF, envelope |
| Measurement Range | 1 m (Sound velocity: 2280 m/s); Resolution: 1 mm, 0.1 mm |
| Sound Velocity Range | 400 – 10000 m/s |
| Pulse Repetition Frequency | 100 – 2000 Hz |
| Probe Channels | 180 channels, supports creation, preview, restore, overwrite, deletion, and renaming |
| Gate Alarm | Gate A alarm, Gate B alarm, loss of echo / echo arrival alarm |
| Gate Modes | Independent Gate A and Gate B |
| Measurement Modes | Peak value, front edge |
| Storage Function | Channel management (import/export), inspection reports (one-click export via PC software), single waveform data, multi-waveform recording (<500 frames), screenshot storage |
| Waveform Display | Original waveform, smoothing curve, waveform trace source |
| Operation Method | Function buttons + full touchscreen (virtual keyboard) + rotary encoder |
| Professional Functions | Auto gain, waveform memory, waveform freezing, gate alarm, color B-scan |
| Auxiliary Functions | Automatic measurement, auto calibration, digital noise suppression, capture markers |
| Language | Simplified Chinese, English |
| Display | High-resolution 5.0-inch 800 × 480 IPS LCD |
| Probe Interface | Dual LEMO-00 C5 connectors |
| Output Interface | Type-C, Mini USB |
| Data Storage | 32GB SD card |
| Charger | 65W PD fast charger, Type-C interface (100–240V, 50–60Hz) |
| Operating Temperature | -10°C – 55°C |
| Relative Humidity | 20% – 95% RH |
| Units | Metric / Imperial |
| Size | 118*113*45mm |
| Weight | 1kg |
Q1: What is an ultrasonic thickness gauge?
The ultrasonic thickness gauge is improved based on the principle of ultrasonic measurement. It can measure the thickness of metals and other materials and can measure the sound speed of the material. The sisco ultrasonic thickness gauge is a portable thickness meter that can measure the thickness of various pipes and pressure vessels in production equipment, as well as accurately measure various sheets and machined parts.
Q2: How does an ultrasonic thickness gauge work?
sisco ultrasonic thickness gauge offers through-coating thickness measuring capability. It measures the thickness of an object by precisely calculating the times the probe sends an ultrasonic pulse to the object and passes through the object until the probe receives the reflection from the boundary. The ultrasonic pipe thickness gauge adopts the most advanced microprocessor and ultrasonic technology and has the characteristics of zero drift, reliable and stable reading, and no need for zero calibration. You can now test painted objects without removing paint or correcting paint thickness.
Q3: 4 Measurement methods of ultrasound thickness gauge
- Single-point measurement method: It means that the ultrasound thickness gauge is used to measure any point of the measured material with a probe, and the display value is the thickness value.
- Two-point measurement method: The ultrasound thickness meter is used to make two measurements at the same point of the measured material with a probe. In the second measurement, the probe's split surface is 90 degrees, and the smaller value in the two measurements is the thickness value.
- Multi-point measurement method: When the measurement value is unstable, take a measuring point as the center and make multiple measurements in a circle with a diameter of about 30 mm. The minimum value is the thickness value.
- Continuous measurement method: It uses a single-point measurement method to measure continuously along a designated line with an interval of not less than 5 mm. The minimum value is the thickness value.
Tips: What is a Digital Ultrasonic Tester for Case Depth Measurement?

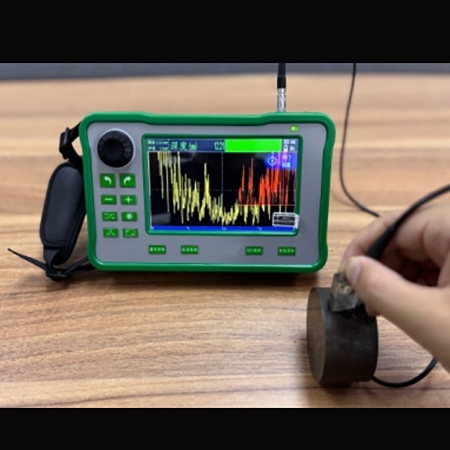

A digital ultrasonic tester for case depth measurement is a non-destructive testing (NDT) instrument designed to measure the depth of hardened layers on metal components using advanced ultrasonic technology. It evaluates the transition between hardened and non-hardened areas by analyzing ultrasonic echo signals, allowing users to determine case depth without cutting, grinding, or damaging the workpiece.
Unlike traditional destructive testing methods, this digital ultrasonic tester provides fast and accurate measurement directly on finished components. It is widely used for inspecting carburized layers, nitrided layers, induction-hardened surfaces, and other heat-treated metal parts.
The SISCO ultrasonictester supports multiple probes and interchangeable wedges to accommodate different workpiece sizes and shapes. With real-time waveform display, touchscreen operation, and data storage capabilities, it provides an efficient solution for quality control in automotive, aerospace, gear manufacturing, and heat treatment industries.
