Engineered for challenging industrial environments, the EMAT ultrasonic thickness gauge provides reliable thickness measurement on coated, rough, or high-temperature metal surfaces. Its non-contact or low-contact measurement capability improves inspection efficiency in industries such as oil and gas, petrochemical, power generation, shipbuilding, and heavy manufacturing. By offering accurate data analysis and convenient operation, this EMAT thickness measurement solution supports preventive maintenance, safety inspections, and quality control programs.
Easy to Carry

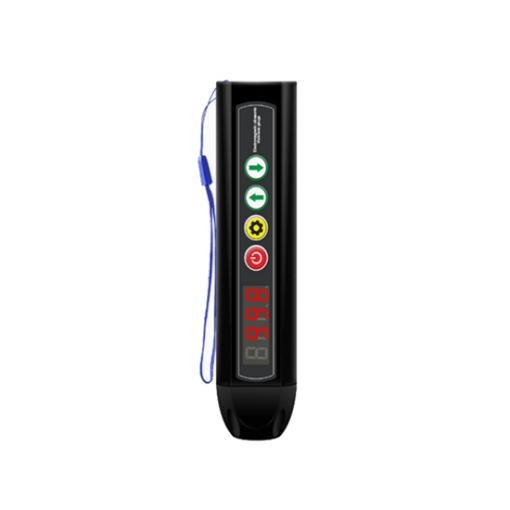

- Convenient Size and Lightweight Design. One of the most prominent advantages of a pen-type electromagnetic ultrasonic thickness gauge is its compact and lightweight construction. Shaped like a pen or marker, it can easily fit in a technician’s pocket or tool bag, enabling quick access whenever thickness measurements are needed.

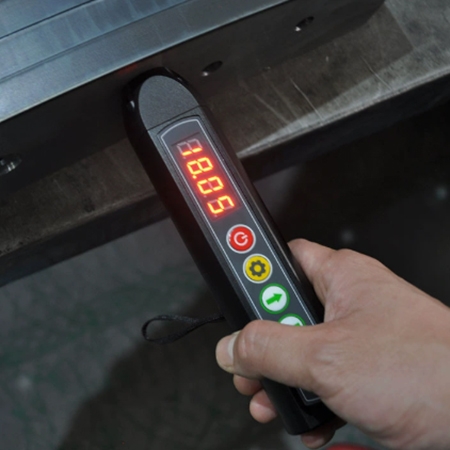

- Time-Saving and Efficient. The portability of this EMAT thickness gauge significantly reduces the time required for setup and measurement. Users can quickly move from one test point to another, enabling faster data collection across large surfaces or multiple components.

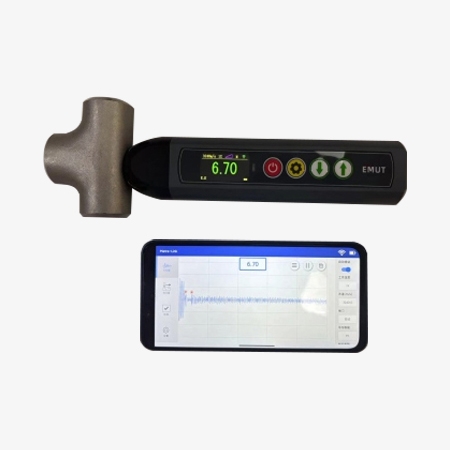

EMAT Thickness Gauge With Mobile Connectivity
- Seamless App Integration: Supports wireless connection to a dedicated mobile measurement app via Bluetooth or Wi-Fi, enabling real-time data synchronization between the device and smart terminals.
- Dual Display Function: Measurement results are simultaneously displayed on both the gauge screen and the mobile app, ensuring clear visibility and convenient monitoring during inspections.
- Advanced Data Analysis: The mobile app provides powerful data processing tools, including trend analysis, statistical calculations, and graphical visualization for better evaluation of thickness variations.
- Data Storage & Sharing: Measurement records can be automatically saved in the app and exported in multiple formats (e.g., Excel, PDF), making it easy to share reports with teams or clients.
Applications
Key application fields of SISCO pen-type electromagnetic ultrasonic thickness gauge include shipbuilding, aerospace, and automotive industries. The compact, pen-style design makes it convenient for on-site inspections and maintenance, particularly in confined spaces or at height. Additionally, the gauge is useful in quality control during manufacturing processes, helping ensure material integrity and compliance with safety standards.
Shipbuilding Industry
Automobile Manufacturing
Metal Processing
Aviation Industry
| Model | SISCO-UTG-EMUT10 |
| Measurement Range | 1.0 – 640 mm |
| Lift-off Distance | 5 mm (Aluminum), 4 mm (Carbon Steel), 3 mm (Stainless Steel) |
| Accuracy | ±0.01 mm |
| Sampling Rate | 80 MSPS |
| Bandwidth | 2.5 MHz – 6 MHz |
| Pulse Voltage | ±600V, 400Hz, 125ns |
| Sound Velocity Range | 400 – 9999 m/s |
| Measurement Channels | Thin Parts, General, Rod |
| Measurement Range (Multi-step) | 1X: 160 mm / 2X: 320 mm / 3X: 640 mm |
| Measurement Materials | Aluminum, Copper, Iron, Carbon Steel, Cast Iron, Alloy Steel, Stainless Steel, Titanium Alloy |
| Detection Modes | Initial Pulse-Echo, Echo-Echo, Echo-Initial |
| Gain | Auto 0–96 dB, Step 1 dB |
| Correction Functions | Gate Height Adjustment, Delay Adjustment, Zero Calibration, Manual Gain Adjustment, Sound Velocity Calibration, High-Temperature Compensation |
| Communication | RS-485 or USB 2.0 |
| Measurement Mode | Single Echo (I-E), Dual Echo (E-E) |
| Charging | 5V 2A, Standard Type-C Interface |
| Battery | 3.7V 3400mAh Lithium Battery, 6 Hours |
| Display | 1.47" IPS LCD (320×172) |
| Size | 178mm*42mm*32mm |
| Weight | 400g |
Q1: What is pen-type electromagnetic ultrasonic thickness gauge?
A1: A pen-type electromagnetic ultrasonic thickness gauge is a compact, handheld device designed for non-contact measurement of material thickness. Its pen-like design allows for easy access to tight or hard-to-reach areas. This gauge is ideal for measuring corrosion, erosion, and wear in pipelines, tanks, and structural components.
Q2: How to maintain pen-type electromagnetic ultrasonic thickness gauge?
A2: To maintain a pen-type electromagnetic ultrasonic thickness meter, regularly clean the probe and device housing with a soft, dry cloth to prevent dust and debris buildup. Avoid exposing the gauge to excessive moisture, heat, or corrosive environments. Check battery levels and recharge as needed to ensure accurate operation. Periodically inspect the probe cable for signs of wear or damage. Store the device in a protective case when not in use to prevent accidental damage.
Q3: What materials can be measured using this electromagnetic ultrasonic thickness gauge?
A3: An electromagnetic ultrasonic thickness tester is ideal for measuring the thickness of conductive materials. It can accurately measure metals such as steel, aluminum, copper, and titanium, as well as their alloys.
Tips: Can an EMAT thickness gauge measure through paint and coatings?
Yes. An EMAT (Electromagnetic Acoustic Transducer) thickness gauge can measure the remaining thickness of metal components through non-conductive coatings such as paint, epoxy, and protective layers without removing the coating.
Unlike conventional ultrasonic thickness gauges that often require surface preparation and couplant, EMAT technology generates ultrasonic waves directly inside conductive materials using electromagnetic forces. This allows inspectors to quickly measure the actual wall thickness of the base metal while leaving the coating intact.
