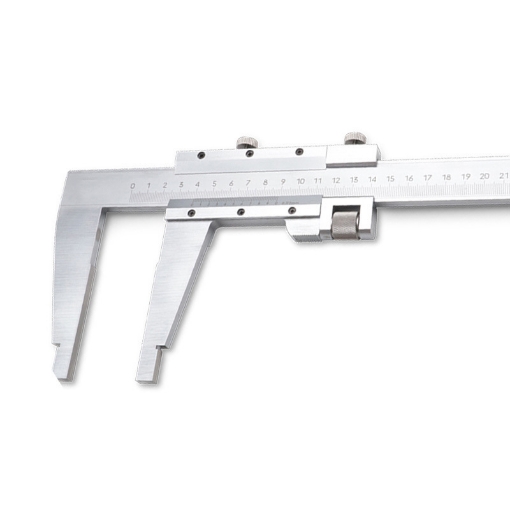

High presicion 600 mm vernier caliper for sale online. Mechanical vernier caliper is an instrument commonly used in industry to measure length, depth, inner diameter and outer diameter. Rodless, carbon steel materials, reading 0.02 mm, easy to use and carry, a fastening screw can lock any position of the vernier caliper, and the reading is retained for easy operation. sisco 600mm vernier scale is an ideal tool for science labs, medical purposes, steel industries, aerospace industries, etc.
- <Locked Anywhere> sisco mechanical vernier caliper comes with a semi-circular non-slip push handle and metal fastening screws. Any position of the vernier caliper can be locked, and the reading is retained for easy operation.
- <Large measuring range> Mechanical vernier calipers can measure length, depth, inner diameter and outer diameter within the range of 0~600mm.
<Made of Carbon Steel> The mechanical vernier caliper is made of carbon steel, and the main caliper and ruler frame are heat treated as a whole.
<Durable Measuring Surface> Matte chrome with laser-scored lines. Matte chrome plating on the engraved surface of the main ruler and ruler frame, laser engraved lines, exquisite and durable. The scale of the vernier caliper is clear and the measurement is accurate.
Applications
Vernier caliper is a measuring tool commonly used by fitters and equipment maintenance personnel. It can directly measure the outer diameter, inner diameter, thickness, width, depth and hole distance of parts. sisco mechanical vernier calipers are available with 0~100 mm, 0~200 mm, 0~300 mm...0~600 mm measuring ranges, which are widely used in science labs, medical purposes, steel industries, aerospace industries and education sector.
- Model: SISCO-VC-SG600
- Range: 0~600mm
- Weight: 900g
- Material: Carbon Steel
- Reading: 0.02mm
- Product Packaging: Plastic Box

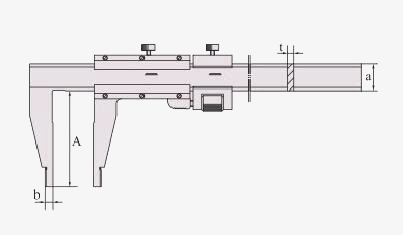

Dimension (Unit: mm)
| Range (mm) | 0~600 | Reading (mm) | 0.02 |
| a (mm) | 25 | t (mm) | 6 |
| A (mm) | 100 | B (mm) | 10 |
Q1: What is a vernier caliper?
A1: Vernier caliper is a measuring tool for measuring length, inner and outer diameters, and depth. The vernier caliper is composed of two parts, the main ruler and the sliding vernier attached to the main ruler. The depth rod is connected to the vernier to measure the depth of the groove and cylinder.
Q2: What are vernier calipers used for?
A2: As a commonly used measuring tool, sisco vernier calipers can be specifically applied in the following four aspects:
- Measure the width
- Measuring the outer diameter
- Measuring the inner diameter
- Measure the depth
Q3: How does a vernier caliper work?
A3: Mechanical vernier caliper is a commonly used instrument for measuring length in the industry. It consists of a ruler body and a vernier that can slide on the caliper body. Viewed from the back, the cursor is a whole. There is a spring piece between the vernier and the caliper body, and the spring force of the spring piece is used to make the vernier and the caliper body close. There is a fastening screw on the upper part of the vernier, which can fix the vernier at any position on the body of the caliper.
Tips for using a vernier caliper
- Clean the measuring surface of the jaws.
- After using the vernier caliper, wipe it clean and oil it, put it in the caliper box, and be careful not to rust or get dirty.
- Check the interaction of the various components. For example, check whether the ruler frame and the micro-motion device can move flexibly and whether the fastening screws can work.
- After the measurement, the vernier caliper should be placed flat, especially the large-sized vernier caliper should be paid attention to, otherwise, the caliper will be bent and deformed.
- Check the zero position. Make the two measuring claws of the vernier caliper closely fit, there should be no obvious light gap, and the zero line of the main scale and the zero line of the vernier should be aligned.
- For the vernier caliper with a depth gauge rod, close the measuring claws after use, otherwise, the thinner depth gauge will be exposed outside, and it will be easily deformed or even broken.
