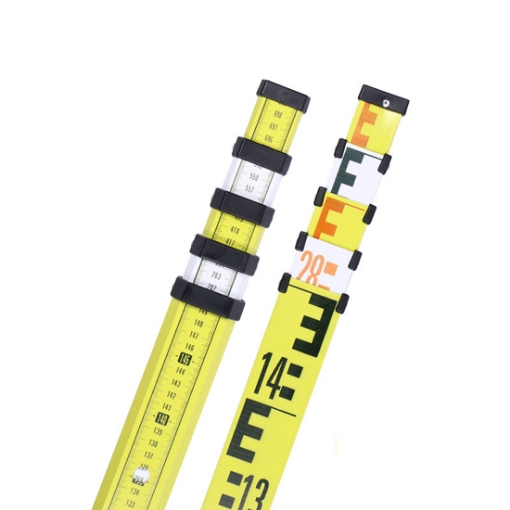

A leveling rod is a measuring tool used in land surveying to determine differences in elevation or height between different points on the ground. It is typically a long, straight, and narrow pole made of lightweight material.
Double-sided stretch
-
Sturdy thick aluminum, made of high quality aluminum.
-
Stable ring, make the leveling rod more stable.
-
Clear scale, able to read clearly.
Application
A leveling staff is a tool used in surveying to determine the elevation or height of points on the earth's surface relative to a reference point. Leveling rod is a fundamental tool in surveying and is used in a variety of applications, including: construction, woodworking, land surveying, environmental monitoring and so on.
| Model | SISCO-LS-7 |
| Material | aluminum alloy |
| Length | 7m |
| Face Width | 5.3 cm |
| Full Reduction Length | 167 cm |
| Durability | extra strong |
| Locking Button | metal enforced buttons |
Q1: What is leveling staff?
A1: A leveling staff, also known as a levelling rod or a surveying rod, is a long, graduated pole or staff used in land surveying to determine the difference in elevation between points. It typically consists of a series of uniformly spaced marks or graduations, which are read by the surveyor using a surveying instrument, such as a level or a theodolite.
Q2: How do you read a levelling staff?
A2: A staff reading consists of 4 digits. The first digit represents the whole number of meters, the second digit represents decimeters, and the third, and fourth digits represent millimeters.
Q3: What are the two methods of levelling?
A3: The important methods of levelling used while surveying are as follows : barometric levelling and trigonometric levelling.
Tips: What are the types of leveling staff?
- Wooden leveling staff. A wooden leveling staff is a traditional type of staff made from a wooden rod with graduations marked on it. This type of staff is not as durable as other materials but is still used in some instances.
- Aluminum leveling staff. Aluminum leveling staffs are the most commonly used type of staff. They are lightweight, durable, and have graduations marked on them for easy reading.
- Telescopic leveling staff. A telescopic leveling staff is a type of staff that can be extended to different lengths. This type of staff is convenient because it can be adjusted to fit different situations, but it is not as durable as other types of staffs.
- Fiberglass leveling staff. Fiberglass leveling staffs are a newer type of staff that is becoming more popular. They are more durable than wooden staffs and are more affordable than aluminum staffs.
