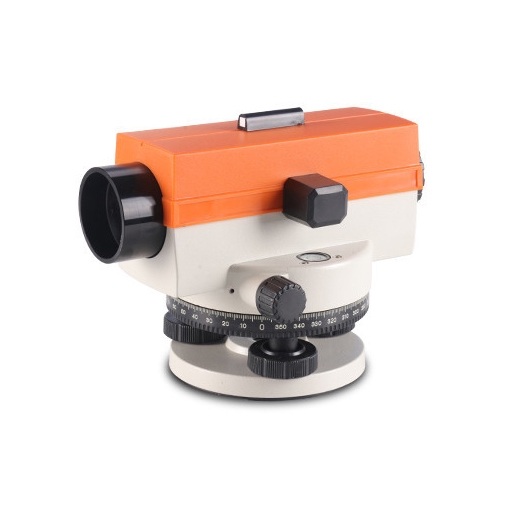

    Automatic Level, 32X Magnification

    SISCO high-precision automatic level with 32X magnification, anping accuracy 0.3″, anping compensation of 15', 32X auto optical level with tripod are well-made with all-metal body, while maintaining IP55 protection, it has good weather resistance and durability.
    SKU: SISCO-AL-32X
    *
    $161.54
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    Good price auto optical level offers excellent accuracy at 1 km with a standard deviation of 1.5 mm per kilometer. Magnification 32X optical level with case allows to work without issues, even in low light conditions.

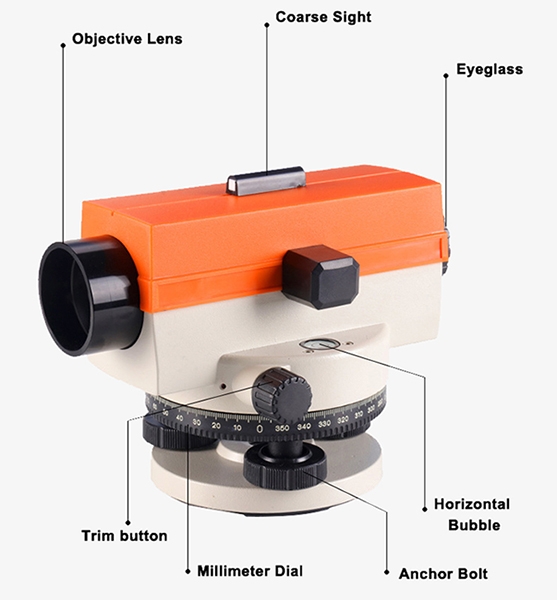

    32X automatic level detail

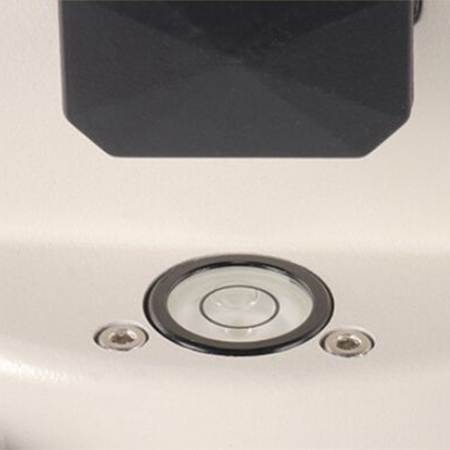

    Blister viewer

    • Adjust the hand wheel of the foot screw to center the circular bubble and rotate the instrument 180°.
    • Round blisters should be in the center or they need to be corrected.
    32X automatic level detail

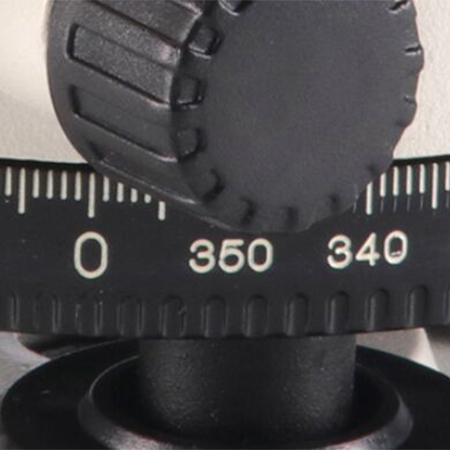

    The automatic level with clear dial

    • 360° horizontal scale display, scale positioning mark
    • The scale is clear and easy to read.


    Applications

    Automatic levels play a crucial role in ensuring accurate and precise measurements in various surveying and construction projects. SISCO auto level is commonly used in surveying and construction applications such as railway construction,wall girder construction, site construction and tunnel construction to measure elevations, establish horizontal lines, and perform various surveying tasks.

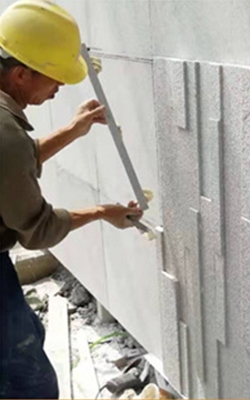

    Wall girder construction

    Wall Girder Construction

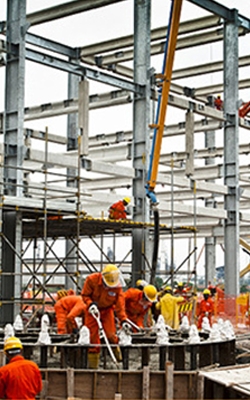

    Site construction

    Site Construction

    Tunnel construction

    Tunnel Construction

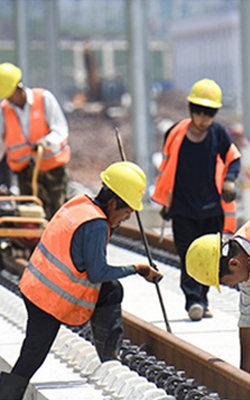

    Railway construction

    Railway Construction

    Specs



    Model SISCO-DSZ-32X
    Telescope multiplier rate 32X
    Differential difference per kilometer round-trip measurement standard 1.5mm
    Mirror diameter 38mm
    Anping accuracy 0.3
    Anping Compensation 15
    Circular foam accuracy 8/ 2mm
    The shortest vision 1m
    Dust -proof waterproof level IP55


    Detail

    32X automatic level detail

    FAQs

    Q1: What are the key features to consider when choosing an automatic level?
    A1: Important features to consider include the magnification and aperture of the telescope, the accuracy and range of the instrument, the quality of the compensator mechanism, the durability and portability of the unit, and compatibility with accessories such as tripods and measuring rods.

    Q2: How do I calibrate an automatic level?
    A2: Automatic levels typically require periodic calibration to ensure accuracy. Calibration procedures may vary depending on the manufacturer and model of the instrument, but generally involve adjustments to the compensator mechanism and verification of the instrument's accuracy using known reference points or benchmarks.

    Q3: Can automatic levels be used in low light conditions?
    A3: Many automatic levels are equipped with built-in compensators that provide reliable performance even in low light conditions. However, for optimal results, it is recommended to use automatic levels in well-lit environments or to supplement with external lighting sources when necessary.

    Tips: Can automatic levels be used for precise measurements?

    Yes, automatic levels can be used for precise measurements of elevation and horizontal distances. These instruments are designed to provide accurate and reliable results when properly calibrated and operated according to manufacturer instructions. The precision of measurements obtained with automatic levels depends on various factors, including the quality of the instrument, the skill of the operator, and environmental conditions such as temperature, humidity, and terrain. With careful setup and use, automatic levels can achieve high levels of precision, making them valuable tools for surveying and construction applications.
