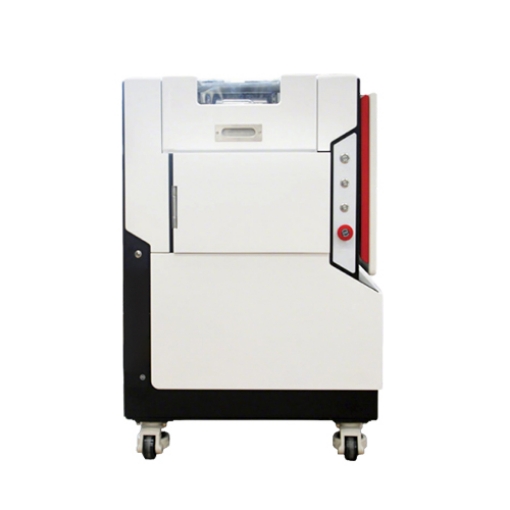

    High Voltage Discharge Vacuum Leak Detector

    High-voltage discharge leakage tester, adopting high-voltage discharge test principle and non-destructive testing technology, can detect leakage of tiny pores. Range 0-20ma, test voltage 0-20 kV. The roller electrode is installed inside the detector for automatic detection. The leak tester machine can work at ambient temperature (20°C, 30°C) with a detection sensitivity of 1.0-3.0 um leaks. Double grounding, with error alarm function. The pressure leak detector is suitable for sealing integrity testing of packaging containers such as glass infusion bottles, BFS, eye drop bottles, vials, ampoules, prefilled needles and other pharmaceutical packaging.
    SKU: SISCO-VLD-LEAK-HV
    $51,078.46
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview



    High-voltage discharge leakage tester adopts a high-voltage and low-current method, which can detect non-flammable liquid packaging of medicines, such as infusion soft bags, ampoules, cassette bottles, etc. The leak and seal strength tester is simple and convenient to operate, with high detection accuracy, and is a commonly used instrument for scientific research units to detect the sealing integrity performance of samples.

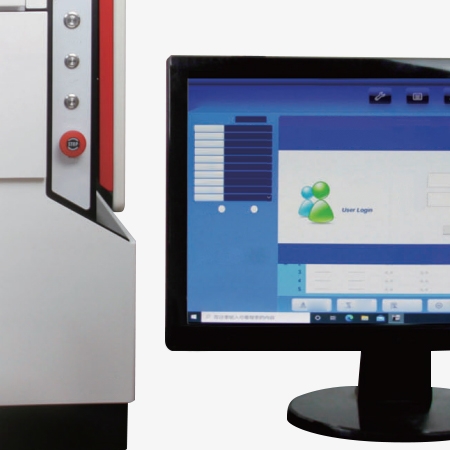

    High voltage discharge leak tester with computer operation

    Password protection function, intuitive and reliable data processing

    • The high-voltage power generation leak detector has full password protection function. The leak tester is divided into four levels of authority management. Each operator has a unique login name and password combination to enter the instrument operation. The number of users can be stored unlimitedly, and there is no upper limit on the storage of test data.
    • The pressure leak detector has the functions of local data storage, automatic processing, and statistical test data. The Windows operating system is intuitive and reliable, and the comparison curve of the test process is clear and concise.
    • It has an error alarm function to ensure the integrity of the data in the case of an abnormal power failure. The leak tester equipment is equipped with a R232 serial port and USB interface to support data transmission, and has an ISP online upgrade function to meet customer personalized requirements.

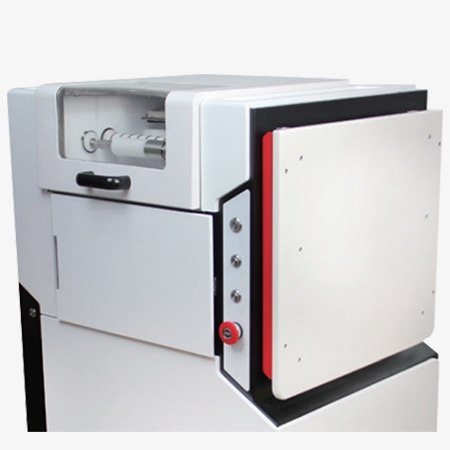

    High voltage discharge leak detector testing

    High test efficiency, guaranteed detection safety

    • The bottle leak tester has a very high test efficiency and can complete the scanning test of the sample in a few seconds. The test results are non-subjective judgments, no human participation is required, and the data accuracy and objectivity are guaranteed.
    • Install the roller electrode, start with one button, and the automated leak tester can automatically detect. It is suitable for detecting tiny leaks, and can also identify samples with large leaks, and give qualified and unqualified judgments. A variety of modules can be quickly switched, suitable for packaging tests of different capacities and dosage forms.
    • The vacuum leak test for bottles has double grounding, triple protection of safety, emergency, and detection door, safety is intuitive and visible. The maximum current of the leak detector is 20mA, which has less impact on the sample.

    Application

    High-voltage discharge leak tester is widely used to test the sealing of pharmaceutical bottles, such as glass infusion bottles, BFS, eye drop bottles, vials, ampoules, prefilled needles, and other pharmaceutical packaging industries. High-voltage power generation sealing instruments can detect the hard-to-observe micro holes in the medicine bottles to prevent leakage hazards..

    BFS for high voltage leak tester

    BFS

    Ampoules for high voltage leak tester

    Ampoules

    Infusion glass bottle for high voltage leak-tester

    Infusion Bottle

    Vials for high voltage leak tester

    Vials

    Specs



    Model SISCO-VLD-LEAK-HV
    Test Method High voltage discharge method
    Packaging Material Non-conductive glass or plastic products
    Contents Non-flammable, non-conductive packaging, liquid power failure (conductivity greater than 1ms/cm, or actual test), liquid volume greater than 30%
    Range 0~20mA
    Test Voltage 0~20KV
    Detection Sensitivity 1~3um
    Host Size 670 X 560 X 980 (mm)
    Weight 90kg
    Ambient Temperature 20°C~30°C
    Relative Humidity <70%RH, no condensation
    Power Supply 220V 50Hz
    FAQs

    Q1: What is a high-voltage discharge seal tester?
    A1: The high-voltage discharge seal tester is a non-destructive testing device based on the principle of high-voltage electric field. It is mainly used for high-precision detection of packaging seals in the pharmaceutical, medical device, food and other industries. It identifies tiny leaks (up to 1μm-5μm) and locates the leak point by detecting micro-current changes or capacitance value differences. The contents must be conductive.

    Q2: How does the high-voltage discharge leak tester work?
    A2: A high-voltage electric field is applied on both sides of the sample (emitter and receiver). When there is no leakage, the packaging wall and the contents form a capacitor, and the current is weak; when there is a leakage, the capacitance disappears, and the current increases significantly. The leakage is judged by detecting the current change. It is suitable for conductive liquids (such as liquid medicine, gel), and the leakage position must have contents to form a conductive circuit.

    Q3: What is the high-voltage discharge seal tester used for
    A3: Test the sealing performance of medical bottles such as BFS, eye drop bottles, syringe bottles, ampoules, glass infusion bottles, and prefilled needles.

    Tips: What are the functions of the high-voltage discharge leak tester?

    It can detect micron-level leaks (such as pinholes in drug packaging and sealing defects in electronic components) with high sensitivity, and the minimum identifiable pore size is 1 micron. It does not physically damage the sample and is suitable for sterile drugs, food packaging and other fields with high integrity requirements. Pressure leak tester supports one-button start and automatic scanning (such as electric brushes or roller electrodes). A single test takes only a few seconds, which is suitable for batch testing on production lines. Automatically determine pass/fail to reduce human errors.
