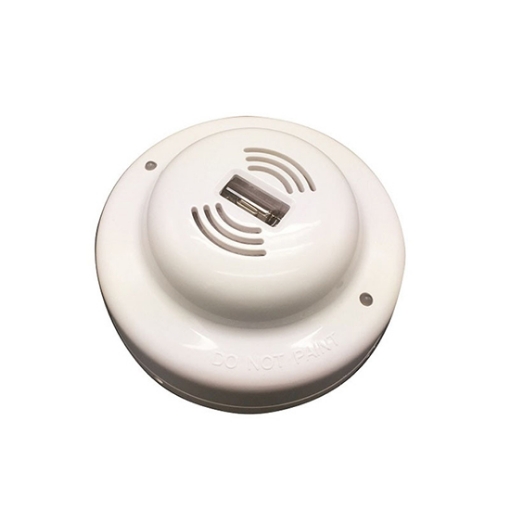

An indoor ultraviolet flame detector is a safety device designed to quickly detect the presence of an open flame by sensing ultraviolet (UV) radiation emitted during combustion. This kind of detector provides reliable fire protection, minimizing false alarms.
Compact and Practical
- One of the most notable benefits is space efficiency. In environments where space is limited, such as small rooms, compact machinery enclosures, or confined industrial areas, a small UV flame detector can be installed without interfering with other equipment or operations.
- The flame sensor adopts an ultraviolet photosensitive tube, to detect flames at a distance of 25 meters.

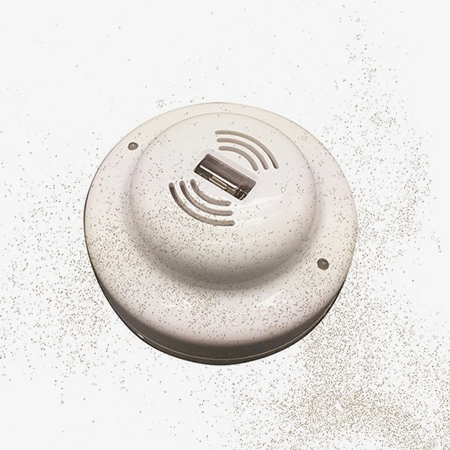

IP21 Protection Rating of Indoor UV Flame Detector
- For typical indoor environments where exposure to dust, moist, IP21 provides a cost-effective solution.
- The IP21 rating helps extend the service life of indoor UV flame detectors. By preventing solid objects and minor water ingress from affecting sensitive internal components, the detectors are less likely to suffer damage that could require frequent maintenance or replacement.
Applications
SISCO indoor UV flame detector is widely used in environments where early flame detection is critical for safety and asset protection. Its primary applications include industrial facilities such as power plants and chemical processing plants, where fast fire detection can prevent disasters. Additionally, ultraviolet flame detector is applied in data center and laboratory to protect sensitive equipment and materials. (Explosive areas are not allowed to be used).

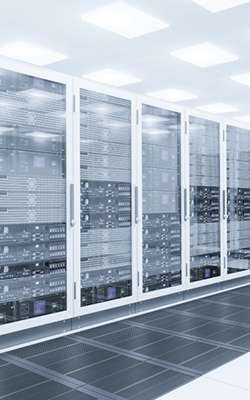

Data Center

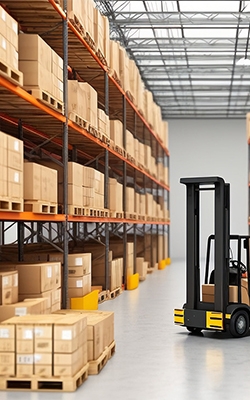

Warehouse

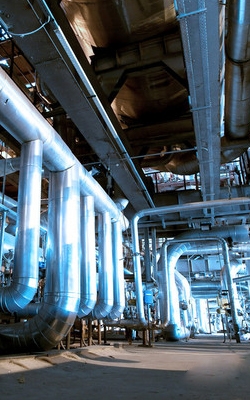

Power Plant

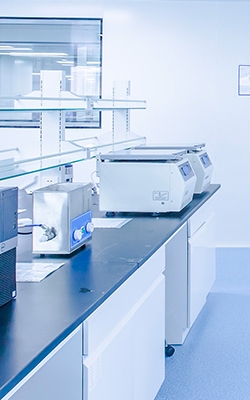

Laboratory
| Model | SISCO-FD-CF6002 |
| Operating Voltage Range | 12 to 28 VDC volts |
| Standby Current | ≤10mA @ 24 VDC |
| Alarm Current | ≤30mA @ 24 VDC |
| Specturm | 180~290nm |
| Detection Angle | 120 degree |
| Detection Sensitivity | Grade I, 25m@flame |
| Relay Contact Load | 1A@DC 24V |
| Normal Status | LED blinking in 5 seconds interval |
| Alarm Status | LED lit steady |
| Protection Rating | IP21 |
| Operating Humidity Range | 10% to 93% relative humidity, non-condensing |
| Operating Temperature Range | -20 ℃ to 55 ℃ |
| Height | 45 mm installed in base |
| Diameter | 103mm |
| Weight | 153g |
Note: This uv flame detector can only be used indoors.

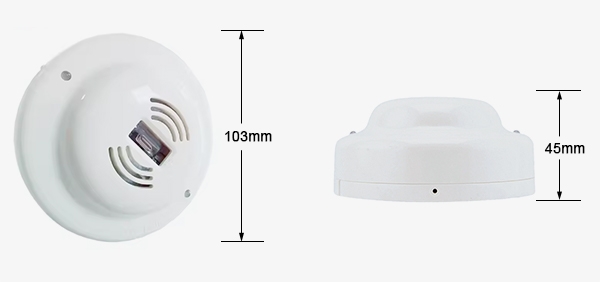

Dimension:
Q1: What is flame detector?
A1: A flame detector is a sensor designed to detect the presence of flame or fire and respond by triggering an alarm or activating safety systems. It is commonly used in industrial facilities, power plants, commercial kitchens, and hazardous environments to provide early fire warnings. Flame detectors can sense ultraviolet (UV), infrared (IR), or combined UV/IR radiation emitted by flames.
Q2: What are the types of flame detector?
A2: Flame detectors come in several types, each designed to sense specific characteristics of a flame. The main types include ultraviolet (UV) flame detectors, which detect UV radiation emitted by flames, and infrared (IR) flame detectors, which sense the infrared radiation produced by combustion. There are also UV/IR combined detectors that use both technologies for greater accuracy and reduced false alarms.
Q3: Is the flame detector suitable for indoor and outdoor use?
A3: Depending on its design and specifications. When selecting a flame detector, it is important to check its IP rating, certification, and environmental tolerance to ensure it meets the requirements of your specific application. It is recommended to use uv ir flame detector outdoors.
Tips: What are the advantages of using indoor uv flame detector?
An indoor ultraviolet flame detector offers fast and reliable flame detection by sensing ultraviolet radiation emitted by a flame. One key advantage is its rapid response time, typically within seconds, which helps minimize damage by triggering immediate alarms or safety actions. Additionally, UV detectors require low maintenance and provide continuous, around-the-clock monitoring for enhanced safety.
