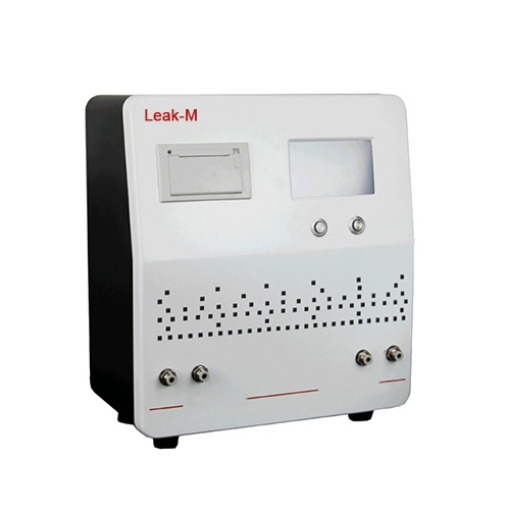

    Multi-Channel Vacuum Leak Detector

    The multi-channel leak detector has a 4-channel design to test 4 samples at the same time, which makes the sample data independent, and the test efficiency is higher. The measuring range is 0~400.0KPa, the air source interface is Ф8mm polyurethane tube, and the measuring accuracy is up to ±1%. The data interface of the air pressure leak tester is RS232, which can be connected to the user's LIMS system, 220V 50Hz. The pressure leak detector has an automatic constant-pressure water replenishment function to ensure that the experimental process is carried out under the preset pressure. The leak tester equipment is suitable for overall sealing performance detection and fatigue testing of various medical devices, arm bags, etc.
    SKU: SISCO-VLD-LEAK-M
    $10,948.77
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview



    The pressure leak detector works at (15, 50℃). The relative humidity of leak tester is up to 80%, with no condensation. Equipped with a large-screen LCD, the status of the automotive leakage tester module is visible. Pressure leak tester is suitable for all kinds of medical instruments, balloons, hoses, packaging, valves, joints, arm sac and other integral sealing performance test and fatigue test.

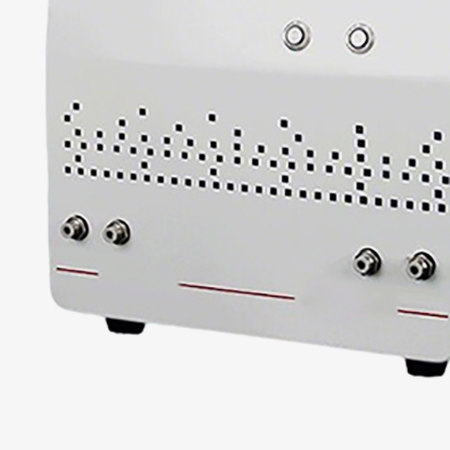

    Four channels design of leak tester

    Four-channel design, higher test efficiency

    • Equipped with a four-channel design, it can test 4 samples at the same time, and the test efficiency is higher. The leak detector uses an independent test unit to ensure that each sample of data is independent. Multiple sets of pressure decay leak tester data can be stored for user queries.
    • Automatic constant-pressure water replenishment to ensure that the experimental process is carried out under the preset pressure. The high-speed processing chip is used to greatly improve the running speed. The pressure decay tester uses high-precision pressure elements, which have stable performance and are durable.

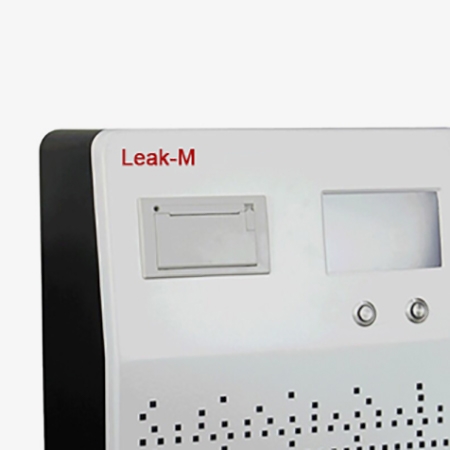

    LCD and micro printer of leak tester

    Clear LCD display, ISP online upgrade function

    • The LCD of the leak tester machine can display the status of each test module at a glance. A variety of test modes are available, providing users with more choices.
    • The system program has the ISP online upgrade function and can provide personalized services. The packaging leak tester uses high-precision pressure elements, stable performance and durability.

    Application

    Multi-channel leak testers ensure that the sealing performance of product packaging meets standards and requirements. In the food industry, seal testers are used to test the sealing performance of food packaging to avoid external contamination and oxidation. The sealing performance of pharmaceutical packaging is crucial to maintaining the quality and safety of drugs, and seal testers can be used to test the sealing performance of pharmaceutical packaging. Cosmetic packaging needs to be protected from oxidation and external contamination to maintain product quality and stability.

    BFS for high voltage leak tester

    BFS

    Ampoules for high voltage leak tester

    Ampoules

    Infusion glass bottle for high voltage leak-tester

    Infusion Bottle

    Vials for high voltage leak tester

    Vials

    Specs



    Model SISCO-VLD-LEAK-M
    Measuring Range 0~400KPa
    Measurement Accuracy ±1%
    Pressure Holding Time 0.1-999999.9s
    Number of Channels 4
    Air Source Interface Ф8mm Polyurethane pipe
    Data Interface RS232(Can connect to the user's LIMS system)
    Machine Size 430mm × 300mm × 500mm
    Weight 22kg
    Air Source Pressure 0.4MPa~0.9MPa (Air source provided by user)
    Operating Temperature 15℃-50℃
    Relative Humidity The highest 80%, condensation-free
    Power Supply 220V 50Hz
    FAQs

    Q1: What is a multi-channel positive pressure leak detector?
    A1: The multi-channel positive pressure leak detector is a device used to test the sealing performance of multiple samples at the same time. It is widely used in medical devices, packaging, and other fields. It evaluates leakage through the positive pressure test principle to ensure product quality and safety.

    Q2: How does a multi-channel leak detector work?
    A2: The multi-channel leak detector uses the differential pressure principle, that is, it uses positive pressure gas injection to detect whether the container leaks under the action of a pressure difference.

    Q3: What is the multi-channel positive pressure leak detector used for?
    A3: The multi-channel positive pressure leak detector is an advanced testing equipment designed for the overall sealing performance test of various medical devices, packaging, pipes, valves, joints, and other products. Its core feature is the multi-channel design, which can test multiple samples at the same time, greatly improving the test efficiency.

    Tips: What are the advantages of a multi-channel positive pressure leak detector?
    The device adopts a multi-channel design, and each channel can be tested independently without interfering with each others. This feature enables the instrument to process multiple samples at the same time, significantly improving the test efficiency. The multi-channel positive pressure leak detector is equipped with high-precision sensors and advanced control systems to ensure the accuracy and reliability of the test results.
