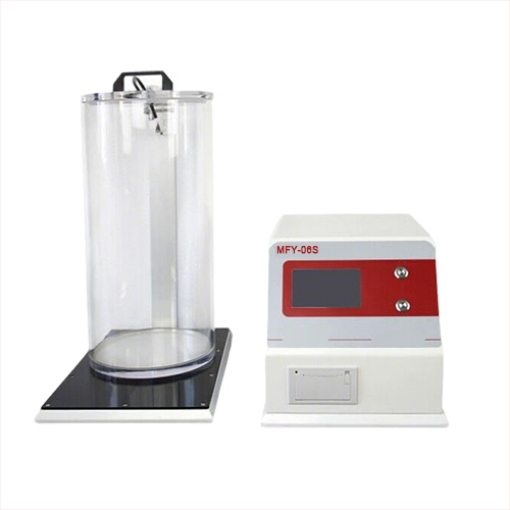

Equipped with a touch LCD screen, the package leak detector can test the sealing leakage and burst strength of plastic safety covers, composite hoses, packaging bags, sphygmomanometer wall capsules, medical devices, and pressure vessels. The pressure leak tester's voltage is 220V 50Hz, and the test data can be stored. A variety of test items can be performed by changing different fixtures.

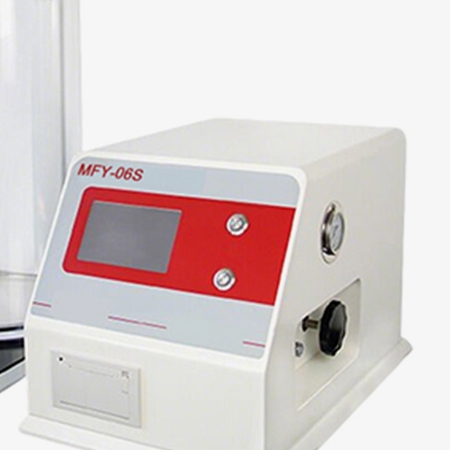

Clear touch screen, information storage can run independently
- The large touch screen of air pressure leak tester can display the experimental process curve. The host can store and query test results and can run independently without a computer.
- The vacuum decay tester has sufficient password protection level, and each operator has a unique login name and password combination to enter the vacuum leak tester for packaging operation. Using the positive pressure principle, one vacuum leak test machine can perform multiple independent experimental projects.

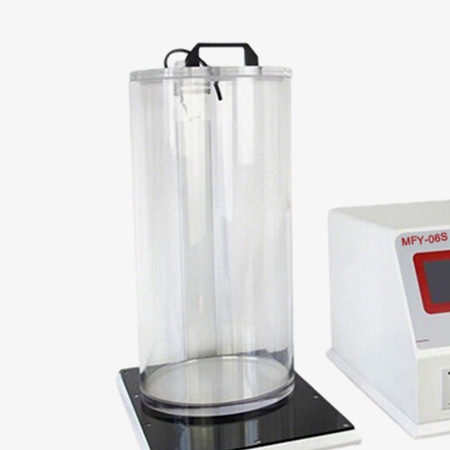

Hard sealing chamber, convenient for observing the testing changes
- The transparent sealing barrel of the leak detector is one of the core components of the equipment. It is mainly used to provide a visual testing environment, which is convenient for directly observing the changes in the sealing performance of the sample being tested. It is especially suitable for the immersion method or the negative pressure test.
- Using an imported sensor system, the pressure decay test equipment’s test accuracy is far ahead of the industry, effectively ensuring the accuracy of the prssure leak test results.
Application
The package leak testers ensure that the sealing performance of product packaging meets standards and requirements. In the food industry, seal testers are used to test the sealing performance of food packaging to avoid external contamination and oxidation. The sealing performance of pharmaceutical packaging is crucial to maintaining the quality and safety of drugs, and seal testers can be used to test the sealing performance of pharmaceutical packaging. Cosmetic packaging needs to be protected from oxidation and external contamination to maintain product quality and stability.
Food
Injections
Cosmetics
Tablets
| Model | SISCO-VLD-MFY-06S |
| Test Range | 0～1.25MPa; 0～174.2psi (Standard) |
| 0～250kPa; 0～36.3 psi (Optional) | |
| 0～1MPa; 0～145.2psi (Optional) | |
| Test Accuracy | ±1% |
| Air Connection | Ф8mm Polyurethane Tube |
| Host Size | 500mm × 400mm × 300mm |
| Host Weight | 15kg |
| Sealing Chamber Size | 350 x 350 x 600 (mm) |
| Sealing Chamber Weight | 15kg |
| Environment Temperature | 15℃-50℃ |
| Relative Humidity | No more than 80%, no dewdrop |
| Power Supply | 220V 50Hz |
| Air Source Pressure | 0.4Pa~0.9MPa (air source to be prepared by the user) |
| Standard | ASTM F1140, ASTM F2054, ISO 11607-1, ISO 11607-2, |
| Standard Configuration | Host, test stand, micro printer |
Q1: What is the vacuum leak tester for packaging?
A1: A vacuum leak tester for packaging is a device used to detect leaks in sealed packaging by applying a vacuum and observing the package's response. It is commonly used in industries such as food, pharmaceutical, and consumer goods to ensure package integrity, prevent contamination, and maintain shelf life.
Q2: How does the vacuum leak tester for packaging work?
A2: The leak tester uses the negative pressure method principle to evacuate the vacuum chamber, causing a pressure difference between the inside and outside of the sample immersed in water, and observing the gas escape to judge the sealing performance of the sample.
Q3: What does the vacuum leak tester for packaging do?
A3: A vacuum leak tester for packaging is used to check whether a sealed package has any leaks by creating a vacuum around it and observing how it reacts. Its main function is to ensure the packaging is airtight and secure, which is critical for protecting the contents from air, moisture, bacteria, or other contaminants.
Tips: What is the positive pressure principle of a packaging leak tester?
The positive pressure principle uses the pressure difference between the inside and outside of the object being tested. During the test process, the vacuum leak detector will apply a positive pressure (i.e., pressure higher than atmospheric pressure) to the inside of the object being tested.
