Highly sensitive and portable nuclear radiation meter with a measurement range of 0.08 μSv/h ~ 9999 μSv/h. The operating environment of the handheld nuclear radiation detector is between -10 ℃ and 50 ℃, humidity ≤ 95 ℃, RH without condensation. The nuclear radiation detector can be preset with alarm thresholds for instantaneous dose rate/accumulative dose and average dose rate.
Features
- Can monitor X, R and β rays.
- Support Chinese/Korean and other eight languages, can be freely switched.
- TFT high-definition display, real-time measurement and can display data in multiple units.
- Easy to operate and sensitive to ensure the accuracy of the measurement results.
- The nuclear radiation detector can be preset over-limit alarm reminder, timely alarm to ensure safety.
- Three selective alarm modes: sound, flash and vibration.

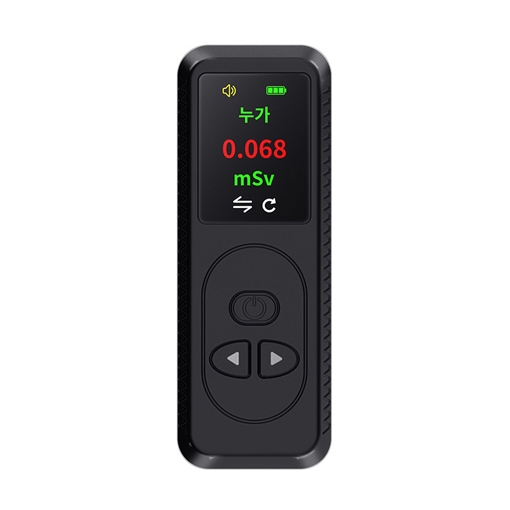

Portable nuclear radiation meter panel details
- Display screen
Adopting TFT high-definition display, the screen display for power tips, speakers, test results, units, language and menu display icons, convenient for users to understand the real-time data view. - Power/menu
Long press to turn on/off, real-time value for the current measurement value, short press to menu switching interface (real-time value/average value/accumulative value/bar graph) - Elimination
Right direction key, power on state, in the cumulative interface or column interface, short press to clear zero for that data. - Language display
The instrument supports eight languages display such as Chinese/English, which can be freely switched to facilitate the user's use and improve the experience. - Test result
Multiple unit display, real-time view of instantaneous dose rate/accumulative dose rate/average dose rate data. - Turn the horn on/off
Under the power-on state, short press to select on/off for the alarm sound of the buzzer. Long press left button to enter language switching and alarm value setting, press power button to enter menu, press left/right button to switch language or set alarm value size, long press left button to confirm and exit.
Applications
SISCO nuclear radiation detector are widely used in daily life, medical environment, industrial environment and workplace health. etc.
| SKU | SISCO-PNRM-68 |
| Detection and Counting | 90mm Geiger counting tube |
| Measuring Range | 0.08uSv/h ~ 9999μSv/h |
| Operating Environment | -10~50°C; Humidity ≤95%RH without condensation |
| Charging Method | USB-Type-C |
| Product Size | 100*40*25mm |
| Screen Size | 0.96 inch TFT color screen |
| Product Weight | 0.5kg |
| Refresh Frequency | 1 second each time |
| Response Speed | 10 seconds or less, 2 minutes to reach a stable value |
| Battery Capacity | 300mah |
Q1: What should I do if the nuclear radiation meter shows abnormal values?
A1: First, make sure the nuclear radiation meter is functioning properly and is not damaged or contaminated. If the problem persists, it may be caused by interference in the environment, try changing the measurement position or calibrating the nuclear radiation meter.
Q2: How do I resolve a nuclear radiation meter that is not as expected?
A2: Check that the nuclear radiation meter is properly calibrated and that the correct operating procedures are followed. Also consider environmental factors such as weather or nearby radioactive sources, which may affect the measurement results.
Q3: How can I extend the battery life of my nuclear radiation meter?
A3: Ensure that you use high quality batteries and charge or replace them regularly. Reducing the amount of time the nuclear radiation meter is used unnecessarily, such as turning the nuclear radiation meter off when not in use, can help extend battery life.
Tips: How to ensure the accuracy and reliability of nuclear radiation meters?
- Periodic Calibration: Calibrate the measuring instrument periodically according to the manufacturer's recommendations to ensure accuracy.
- Cleaning and Protection: Keep the instrument clean, wipe it with a soft cloth and avoid chemical contact. Protect the instrument with a protective cover or case.
- Avoid Severe Shocks: Avoid severe shocks or impacts to the instrument to prevent damage to internal components.
- Proper Storage: Store the instrument in a dry, ventilated area away from extremes of temperature and humidity.
- Battery Management: Check the battery regularly to avoid damage to the battery due to prolonged storage and replace the battery as needed.
- Follow the User's Guide: Read and follow the instrument's User's Guide carefully to ensure proper operation and maintenance.
