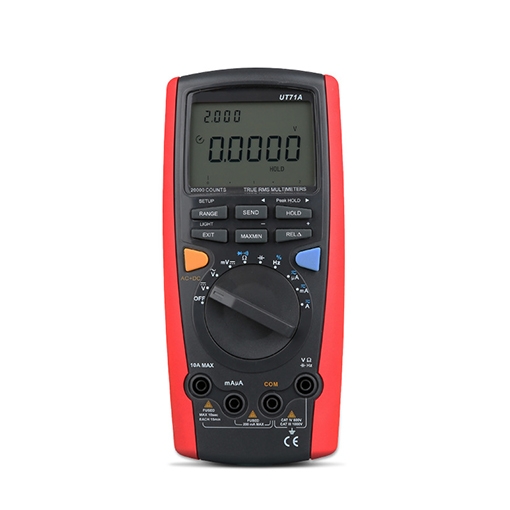

High-resolution digital multimeter accurately measures AC/DC Voltage, AC/DC current, and resistance. The smart multimeter can be connected to the mobile phone via wireless (Bluetooth) to ensure safer monitoring, data logging and diagnosis.

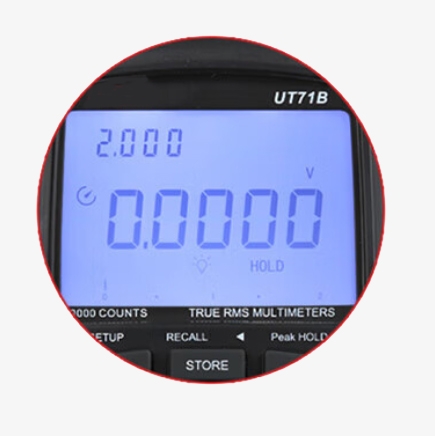

LCD large screen backlight display
- The measurement data function symbol display.
- The digital multimeter with ultra-large screen with high definition can accurately display data with backlight.

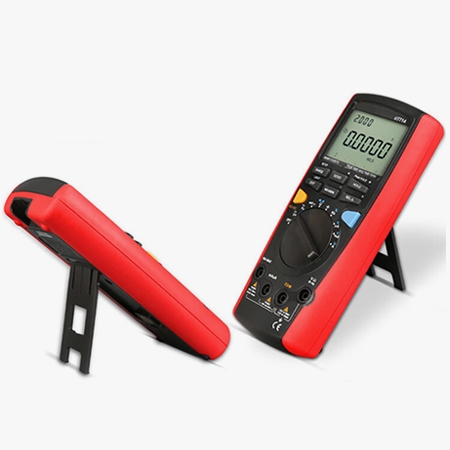

Smart digital multimeter with vertical stand design
- A vertical stand can be fixed to support the placement of the machine body.
- Free your hands for easy operation and reading.

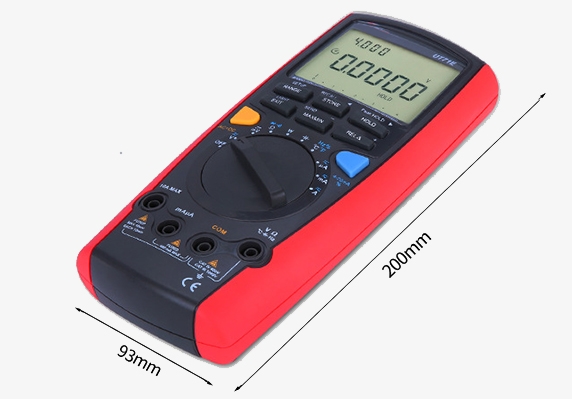

Dimension
Applications
SISCO digital multimeter is a versatile tool used in various applications, including electronics repair, electrical maintenance, car repair and laboratory testing. It measures voltage, current, and resistance, and often includes additional features such as capacitance, frequency, and temperature measurement. Its precision and multifunctionality make it essential for diagnosing and troubleshooting electrical issues in both professional and educational settings.
Car Repair
Electronics Repair
Laboratory Testing
Electrical Maintenance
Β
| Model | SISCO-DM-71E | |
| Basic functions | Range | Basic accuracy |
| DC Voltage | 400mV/4V/40V/400V/1000V | Β±(0.025%+5) |
| AC Voltage | 4V/40V/400V/1000V | Β±(0.4%+30) |
| DC Current | 400γ/4000γ/40γ/400γ/10A | Β±(0.1%+15) |
| AC Current | 400γ/4000γ/40γ/400γ/10A | Β±(0.7%+15) |
| Resistance | 400Ξ©/4γ/40γ/4γ/40γ | Β±(0.3%+8) |
| Frequency | 40Hz~400MHz | Β±(0.1%+5) |
| Resistor | 40γ/400γ/4γ/40γ/400γ/4mF/40mF | Β±(1%+20) |
| Power | 2500W | Β±(2%+5) |
| Special Function | Range | Basic accuracy |
| Maximum Display | 39999 | |
| Data Storage | 100 groups | |
| Frequency Response | 100kHz | β |
| Duty Cycle | 10%~90% | β |
| Input Impedance | DC 200mA: Around 2.5G, All other range:10M | β |
| 4-20mA% | 0~100% | β |
| Auto Range | β | |
| True RMS | β | |
| Diode Test | β | |
| Auto Shutdown | β | |
| On/off Beep | β | |
| Low Voltage Display | β | |
| Digital Hold | β | |
| Relative Measurement | β | |
| Maximum/Minimum Value | β | |
| USB Data Transmission | β | |
| LCD Dual Backlight | β | |
| Analog Bar | β | |
| Full Symbol Display | β | |
| Function Setting | β | |
| 10A Fuse | β | |
| Current Measurement Misalignment Alarm | β | |
| Voltage and Current: AC=+DC | β | |

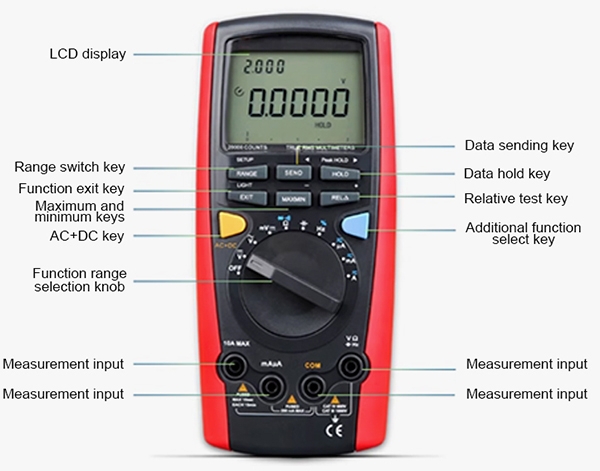

Structure
Q1: What is a digital multimeter?
A1: A digital multimeter (DMM) is an electronic measuring instrument that combines several measurement functions in one unit. It can measure voltage, current, and resistance, and some models can also measure additional parameters like capacitance, frequency, and temperature.
Q2: Can a digital multimeter perform a diode test?
A2: Yes, a digital multimeter can perform a diode test if it has the diode test function. Set the dial to the diode test mode, insert the probes into the correct ports, and touch the probes to the diode's anode and cathode. The multimeter will display the forward voltage drop of the diode.
Q3: Can a digital multimeter perform a continuity test?
A3: Yes, a digital multimeter can perform a continuity test. Set the dial to the continuity test mode, insert the probes into the correct ports, and touch the probes to the two points in the circuit you want to test. If the circuit is continuous, the multimeter will beep.
Tips: Safety Precautions When Using a Pen Type Digital Multimeter
Using a pen-type digital multimeter safely involves understanding the device and adhering to specific guidelines to prevent accidents and ensure accurate measurements. Here are key safety precautions:
- Inspect the Multimeter: Check for any damage on the multimeter and probes before use.
- Correct Mode and Range: Always set the multimeter to the correct measurement mode (voltage, current, resistance) before use.
- Power Off: If possible, turn off power to the circuit before connecting or disconnecting the probes.
- Use One Hand: When measuring high voltage, use one hand to reduce the risk of electric shock.
- Dry Environment: Ensure the environment is dry to prevent short circuits or inaccurate readings.
