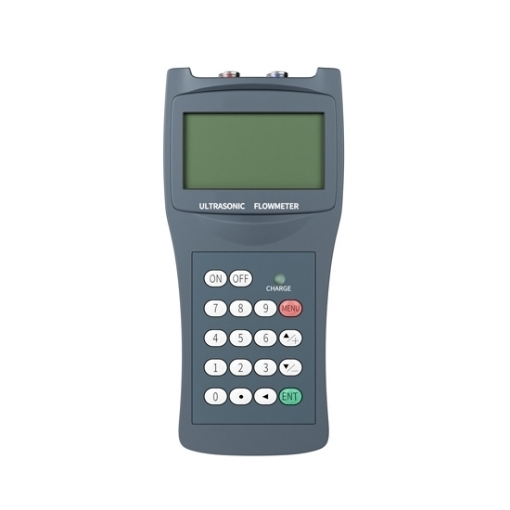

Low price small size ultrasonic flow meter, built-in data logger, the ultrasonic flowmeter can store 2000 lines of data, more than 12 hours of continuous work,
easy installation of the sensor, suitable for measuring a variety of small and large pipeline conductive sound media.

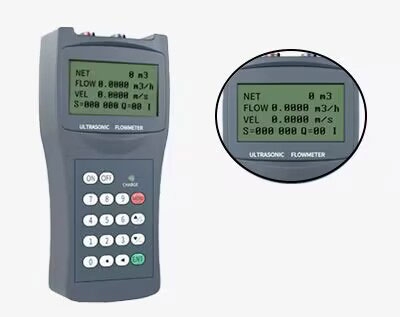

Large screen backlight LCD display

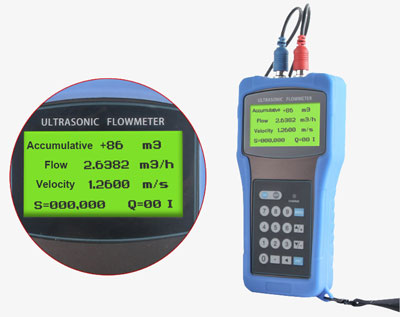

- Instantaneous flow, cumulative flow, and instantaneous velocity are displayed on the same screen.
- Anti-skid design of an ultrasonic flow meter.
- High precision, strong anti-interference.

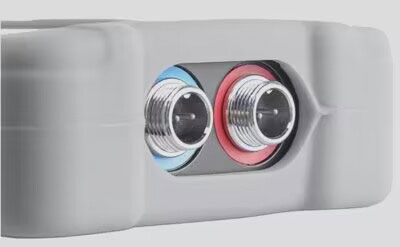

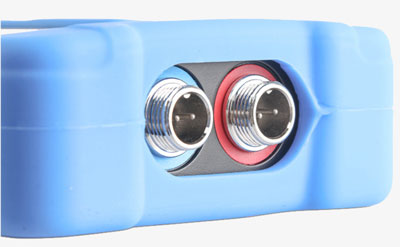

International standard aviation plug
- The signal line adopts an aviation plug design.
- Easy to plug and unplug, easy to operate.
- portable clamp-on ultrasonic flow meter waterproof anti-skid anti-corrosion design.

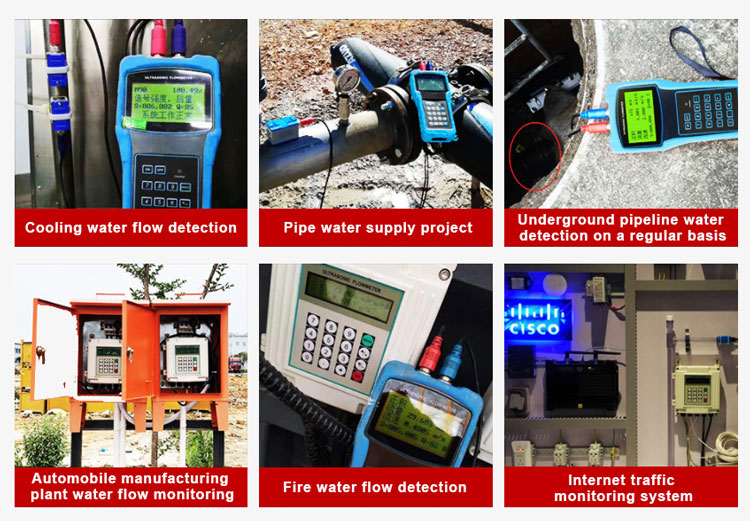

Application
The vortex flow meter is a kind of flowmeter applying the Carmen vortex principle, used to measure the flow of liquid, gas, and steam, also can measure the turbid liquid containing tiny particles, and impurities, widely used in petroleum, chemical, pharmaceutical, paper, metallurgy, electric power, environmental protection, food, and other industries.
| Model | SISCO-SPE-2000H |
| Accuracy | ±1% of reading @ flow rate >0.2m/s |
| Linearity | 0.50% |
| Repeatability | 0.20% |
| Response Time | 0-999 seconds, user-selectable |
| Velocity | 0.2~32m/s |
| Pipe Size | 40mm-1200mm |
| Totalizer | 7-digit totals for net, positive and negative flow respectively |
| Liquid Type | Virtually all liquids |
| Transducer (Optional)* | Standard clamp-on transducers: small/medium/large; High-temperature clamp-on transducers: small/medium/large (See the "Transducer Selection" table below for the details) |
| Protection Grade | Transducer: IP67 |
| Transducer Cable Length | Standard 5m x 2 |
| Operating Temperature | Main unit: -30℃~90℃, Transducers: -30℃~160℃ |
| Operating Humidity | Main unit: ≤85%RH |
| Power Supply | 3 AAA built-in Ni-H batteries (Can work over 12 hours after a full charge), external charger with 100V-240VAC |
| Display | 4 x 16 English letters |
| Signal Output | OCT output (6~1000ms) |
| Data Logger | Built-in data logger, can store over 2000 lines of data |
| Housing Material | ABS |
| Main Unit Size | 100x66x20mm |
| Main Unit Weight | 500g with batteries |
Transducer Selection
| Transducer | Measuring Pipe Size Range | Temperature Range | Dimensions (mm) |
| Standard clamp-on transducer - Small | DN40-DN100 | -30℃~90℃ | 45*25*32 |
| Standard clamp-on transducer - Medium | DN50-DN700 | 64*39*44 | |
| Standard clamp-on transducer - Large | DN300-DN1200 | 97*54*33 | |
| High-temp clamp-on transducer - Small | DN40-DN100 | -30℃~160℃ | 45*25*32 |
| High-temp clamp-on transducer - Medium | DN50-DN700 | 64*39*44 | |
| High-temp clamp-on transducer - Large | DN300-DN1200 | 97*54*33 |
Transducer Installation
1. Choosing right installation position

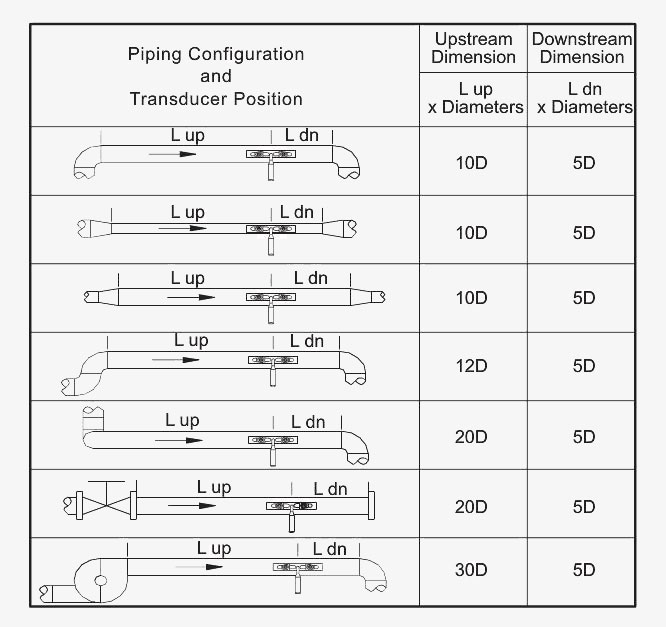

- The pipeline where the transducer is installed must have a long enough straight pipe section, of course, the longer the better, generally 10 times the pipe diameter upstream, 5 times the pipe diameter downstream, and 30 times the pipe diameter from the pump port. At the same time, ensure that the liquid in this section must be full.
- Make sure that the temperature range of the pipe under test is within the applicable range of the sensor, usually at room temperature.
- Take the corrosion or scaling of the pipeline into consideration. It is better to choose a newer pipeline for the measurement. If it is not available, subtract the corrosion from the pipe wall thickness or consider scaling as the pipe lining.
2. Transducer installation method

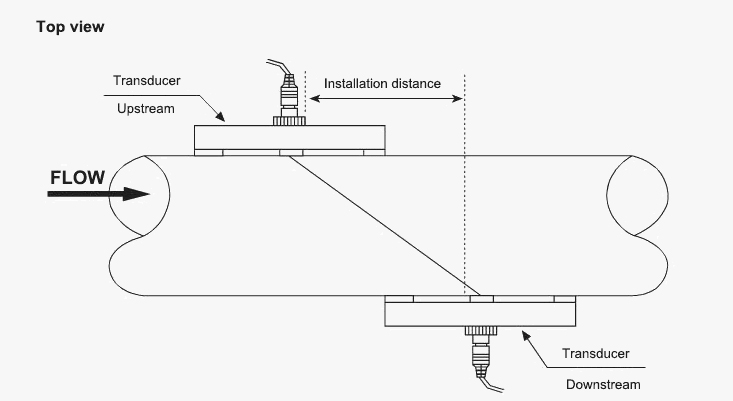

- Z-installation method: generally suitable for the pipes above DN100mm

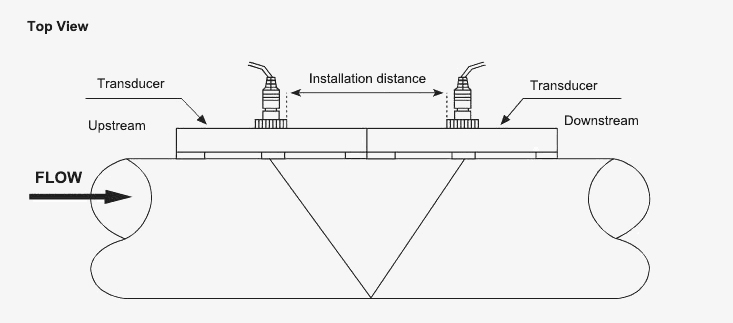

- V-installation method: generally suitable for the DN20-300mm pipes
