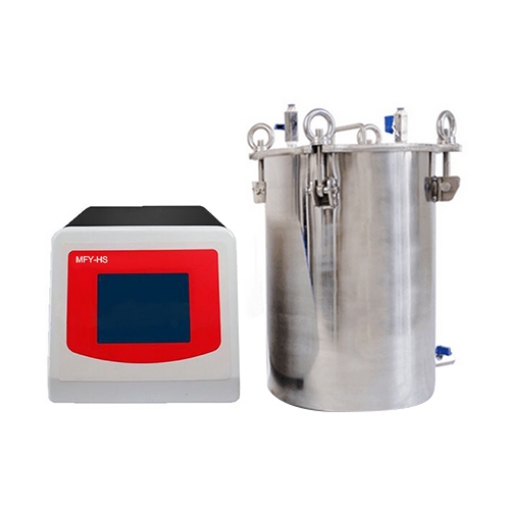

    Vacuum Decay Leak Tester

    The vacuum decay leak tester adopts positive pressure and negative pressure test principles for package sealing test. Comes with a touch LCD screen and micro printer, the vacuum decay tester provides a variety of test conditions for the color water method and microbial invasion test. RS232 data interface, pressure setting 0.1-5.0 KPa, and pressure range 0-400.0 KPa (free setting), and 220V 50Hz power supply. The vacuum leak tester can complete vacuum (negative pressure) and pressure (positive pressure) tests, and suitable for sealing tests of medical devices such as pharmaceutical soft packaging, oral liquid bottles, injection bottles, etc.
    SKU: SISCO-VLD-MFY-HS
    $10,978.46
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview



    The pressure decay leak tester with RS232 port can automatically replenish air at a constant pressure, display the test curve in real time, and has the function of automatic data storage. High-precision and non-destructive testing techniques can detect leaks in micro-holes.

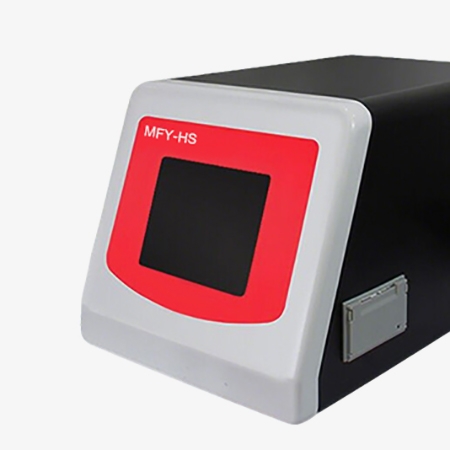

    Vacuum decay leak tester touch display

    Clear touch screen, come with a micro printer

    • The touch screen of the vacuum decay leak detector is convenient for users to operate and monitor. The screen of the leak detector uses an LCD, which can display various test parameters and test results. Users can complete the corresponding operation with just a touch.
    • The LCD screen of the vacuum detector can also process and store data. Users can save the test results to the internal memory of the device or an external storage device through the touch screen for subsequent analysis and processing. The leak tester supports connection with printers, computers, etc.
    Pressure tank of vacuum decay leak tester

    Stainless steel sealing barrel, user authority management function

    • The sealing barrel of the vacuum decay leak tester, made of stainless steel, is corrosion-resistant and high-strength, and is suitable for acidic and alkaline liquids or high-cleanliness environments (such as medical devices and food packaging).
    • The pressure leak tester has a four-level user authority management function to ensure data integrity and traceability. Equipped with a stainless steel pressure barrel, the sealing ring and locking assembly can ensure the airtightness of the pressure barrel.
    • The microcomputer controls the pressure, time and other parameters of the vacuum decay tester, and supports automatic air replenishment and data recording.

    Application

    The vacuum decay leak testers ensure that the sealing performance of product packaging meets standards and requirements. In the food industry, seal testers are used to test the sealing performance of food packaging to avoid external contamination and oxidation. The sealing performance of pharmaceutical packaging is crucial to maintaining the quality and safety of drugs, and seal testers can be used to test the sealing performance of pharmaceutical packaging. Cosmetic packaging needs to be protected from oxidation and external contamination to maintain product quality and stability.

    Food packaging for vacuum leak tester

    Food

    Injections packaging for vacuum leak tester

    Injections

    Cosmetics packaging for vacuum leak tester

    Cosmetics

    Tablets packaging for vacuum leak tester

    Tablets

    Specs



    Model SISCO-VLD-MFY-HS
    Vacuum Degree 0--90Kpa (free setting)
    Pressure Range 0-400Kpa (free setting)
    Resolution 0.1Kpa
    Pressurization Accuracy Level 1
    Sealing Chamber Capacity 10L (standard), 20L, 30L (optional)
    Gas Source Pressure 0.5MPa-0.7MPa (self-provided gas source)
    Operating Temperature 15°C-50°C
    Relative Humidity ≤80%, no condensation
    Power Supply 220V 50Hz
    Host Size 510 mm x 340 mm x 330mm (L / W / H)
    Host Weight
    25kg
    Sealing Chamber Size (10L)
    350 x 360 x 510 (mm)
    Sealing Chamber Weight
    25kg
    FAQs

    Q1: What is the vacuum decay leak tester?
    A1: Vacuum Pressure Decay Leak Tester is a high-precision hermeticity testing equipment based on the principle of vacuum decay method, which is widely used in pharmaceutical, food packaging, medical devices and other industries. Its core is to identify the leakage of the tested object by monitoring the pressure change under vacuum environment.

    Q2: How does the vacuum decay leak tester work?
    A2: Vacuum decay method is a non-destructive sealing inspection technology based on the principle of pressure difference and gas diffusion, the core of which is to evaluate the sealing performance by monitoring the pressure change in the vacuum environment, which has the advantages of high sensitivity and non-destructiveness.

    Q3: What does the vacuum decay leak tester do?
    A3: Used to test the sealing performance of pharmaceutical packaging such as xylin vials, ampoules, etc., to ensure the quality and shelf life of pharmaceuticals. Evaluate the sealing performance of food packaging to ensure the safety and quality of food. To detect the leakage of sealed containers of various medical devices to ensure the safety and effectiveness of medical devices.

    Tips: What are the positive and negative pressure tests of the vacuum decay leak detector?

    The positive and negative pressure test of the vacuum leak detector is based on the basic principle of physics, to create an environment lower or higher than the atmospheric pressure in a closed container, and then monitor the changes in the pressure in the environment to determine whether there is a leak.
