Equipped with a micro printer, supporting a power supply of 220V 50Hz. The vacuum detector has a custom user hierarchical authority management function to ensure data integrity and standardization. The packaging leak tester is used for sealing leakage tests of packaging materials such as medicinal glass bottles, vials, aluminum-plastic soft bags, cans, liquid bags, cosmetics, etc.

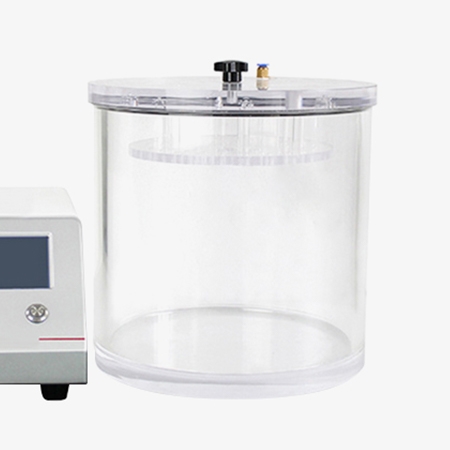

Transparent vacuum chamber, visualization of the detection method
- The transparent vacuum chamber of the automotive vacuum leak detector is an important part. It is usually made of special transparent materials to form a closed test environment.
- The transparent vacuum chamber makes the vacuum leak detection methods process visual, and allows direct observation of the leakage of the sample. Therefore, the vacuum tester is widely used in various scenarios that require sealing tests, such as flexible packaging products, cosmetic packaging, electronic semiconductor packaging products, medical devices, etc.
Accurate LCD display, high degree of automation
- The vacuum detector can realize functions such as microcomputer control, LCD display, digital preset test vacuum degree, and vacuum holding time, which improves the accuracy and efficiency of the test.
- The vacuum system leak detection can automatically replenish air at constant pressure, automatically end the test, and automatically backflush and unload. The vacuum leak testing machine can preset test parameters, is equipped with high-quality accessories, and accurately detects and solves potential leakage
Application
Package seal testers ensure that the sealing performance of product packaging meets standards and requirements. In the food industry, seal testers are used to test the sealing performance of food packaging to avoid external contamination and oxidation. The sealing performance of pharmaceutical packaging is crucial to maintaining the quality and safety of drugs, and seal testers can be used to test the sealing performance of pharmaceutical packaging. Cosmetic packaging needs to be protected from oxidation and external contamination to maintain product quality and stability.
Food
Injections
Cosmetics
Tablets
| Model | SISCO-VLD-MFY-05S |
| Vacuum Degree | 0--90kPa |
| Vacuum Accuracy | Level 1 |
| Air Source Pressure | 0.5MPa~0.7MPa |
| Vacuum Holding Time | 0-60min |
| Host Size | 500 x 400 x 300 (mm) |
| Host Weight | 15kg |
| Sealing Chamber Size | 400 x 400 x 500 (mm) |
| Sealing Chamber Weight | 15kg |
| Segment Test | 1-5 segments (free setting) |
| Hysteresis Setting | 0.01-5.00KPa (free setting) |
| Test Results | 1000 groups (unlimited groups with matching software) |
| Audit Trails | 1000 records (unlimited groups with supporting software) |
| Users | 50 (usernames are numbers, letters or special symbols) |
| Data Interface | RS232 (can be connected to user system) |
| Standard Configuration | Host, vacuum chamber, micro printer |
| Environmental Requirements | |
| Working Temperature | 15℃-50℃ |
| Power Supply | 220V 50Hz |
Q1: What is the vacuum leak tester for lab?
A1: A vacuum leak tester for packaging is a device used to detect leaks in sealed packaging by applying a vacuum and observing the package's response. It is commonly used in industries such as food, pharmaceutical, and consumer goods to ensure package integrity, prevent contamination, and maintain shelf life.
Q2: How does the vacuum leak tester for lab work?
A2: The leak tester uses the negative pressure method principle to evacuate the vacuum chamber, causing a pressure difference between the inside and outside of the sample immersed in water, and observing the gas escape to judge the sealing performance of the sample.
Q3: What does the vacuum leak tester for lab do?
A3: A vacuum leak tester for packaging is used to check whether a sealed package has any leaks by creating a vacuum around it and observing how it reacts. Its main function is to ensure the packaging is airtight and secure, which is critical for protecting the contents from air, moisture, bacteria, or other contaminants.
Tips: What are the functions of a vacuum leak tester for lab?
By simulating the pressure and other conditions that the package may encounter during transportation and storage, the sealing performance of the package can be tested to see if it meets the standard. The sealing quality of the package and whether there are minor damages or defects can be determined. The package vacuum leak detector can also monitor the pressure changes inside the package in real time. In order to meet the needs of different users, the package vacuum leak detector usually provides multiple test modes.
