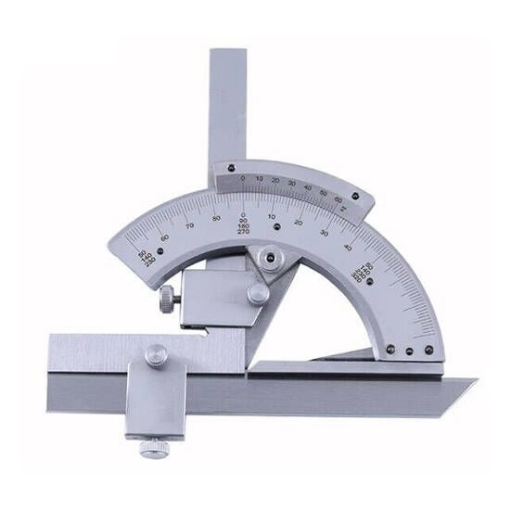

Universal Vernier Bevel Protractor, 0-320 Degrees

• Model: SISCO-SSP-VBP320
• Range: 0-320°
• Body Process: Surface chrome plating
• Scale Process: Laser scale
• Material: Stainless steel
• Reading Mode: Cursor reading
• Reading Value: 2''
• Packing: Plastic box packing

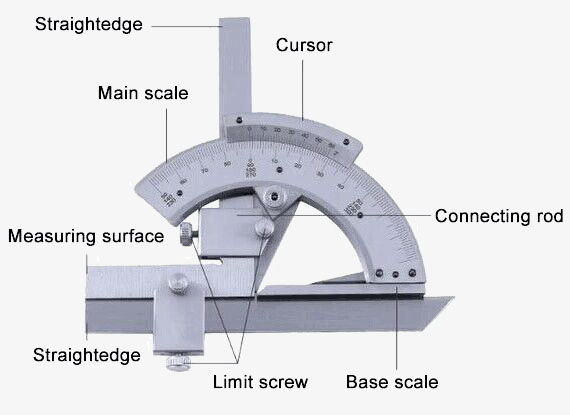

Details

Q1: What is a vernier bevel protractor and how does it work?
A1: A Vernier Bevel Protractor is a measuring tool used to measure angles with a high degree of accuracy. It consists of a base, a blade or arm, and a Vernier scale. The blade or arm can be rotated and locked to measure the angle between two surfaces. The Vernier scale provides a more precise reading of the angle, typically down to 5 or 10 arc seconds.

Q2: How to use a vernier bevel protractor to measure an angle?
A2: To measure an angle with a Vernier Bevel Protractor, place the base on one surface and the blade on the other surface. Adjust the blade so that it is parallel to the surface being measured. Lock the blade in place and read the angle from the Vernier scale. Be sure to take into account any error caused by the misalignment of the protractor with the surface being measured.

Q3: How to maintain my vernier bevel protractor?
A3: To maintain the accuracy and longevity of your Vernier Bevel Protractor, keep it clean and free from debris. Store it in a dry location, preferably in a protective case. Periodically inspect the protractor for signs of wear or damage, and replace any damaged parts immediately. Calibrate the protractor regularly to ensure it remains accurate. If you are unsure how to calibrate the protractor, consult the manufacturer's instructions or seek the advice of a qualified professional.

Tips: How to use vernier bevel protractor?

A Vernier bevel protractor is a measuring tool that is used to measure angles with a high degree of precision. Here are the steps to use a Vernier bevel  protractor:

1. Place the base of the Vernier bevel protractor on a flat surface and adjust the locking screw to secure it in place.
2. Place the blade or the surface whose angle needs to be measured between the two arms of the Vernier bevel protractor, aligning it with the base.
3. Use the bevel adjustment knob to align the Vernier scale with the blade or surface to be measured.
4. Read the angle measurement from the Vernier scale and the main scale. The main scale measures in whole degrees, while the Vernier scale measures the fraction of the degree.
5. To take a precise measurement, read the smallest line on the Vernier scale that coincides with a line on the main scale. This is the value to add to the whole degree measurement.
6. Add the values obtained from the Vernier and main scales to get the final angle measurement.
7. When finished, loosen the locking screw to release the blade or surface being measured, and store the Vernier bevel protractor in a safe place.

Note: It is important to handle the Vernier bevel protractor carefully and avoid dropping it, as it can affect its accuracy.
