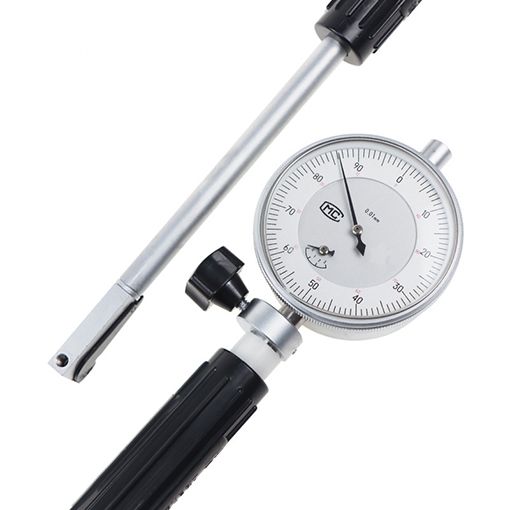

50-100mm Dial Bore Gauge, 0.001mm

Get a dial bore gauge from sisco.com, the cylinder bore gauge with a measuring range of 50-100mm and a division value of 0.001mm, and the measuring depth is 150mm. The dial bore indicator is mainly used to measure the roundness error, cylindricity error or parts wear of the engine cylinder and bearing seat hole.

SKU: SISCO-DBG-50100

$320.15

Qty:

i h

Free shipping

Delivery date: 7-12 days

Overview
Specs
FAQs
Warranty
Reviews

Overview

sisco bore gauge with bore diameter measurement as deep as 150mm, 50-100mm measuring range, precision ±0.01mm. The bore gauge has the advantages of small in size, lightweight and long service life.

Insulated handle design

Effectively insulate the heat and measure hot parts
The product has an anti-counterfeiting code

Locking device design

The measurement data is locked and the data is more accurate
Dial clear scale, intuitive and convenient reading

Applications

SISCO dial bore gauges are used in applications where holes, cylinders, and pipes need the be measured, such as automotive, manufacturing, and inspection and calibration uses. Mechanics and machinists use bore gauges to measure wear in cylinder heads.

Dial bore gauge application

Specs

Model: SISCO-DBG-206000
Measuring Range: 50-100mm
Precision: ±0.01mm
Division value: 0.001mm
Measuring Depth: 150mm
Weight: 3kg

FAQs

Q1: What is a dial bore gauge?
A1: A dial bore gauge is an instrument that measures the inner diameter of small holes. Bore gages are critical when it comes to measuring parts that have small holes in them. Typically, these versatile instruments are used as part of a quality control process to ensure that bore sizes are standardized.

Q2: Why is a bore dial gauge used?
A2: A Bore Gage is used to measure the inside diameter of a hole or cylinder. This explains why it is referred to by so many different names. You are actually measuring the bore size.

Q3: How does a dial bore gauge work?
A3: A typical bore gauge is comprised of a shaft with a dial indicator at the top and a measuring sled at the base. The measuring sled consists of three guides and an actuating plunger. Dial bore gauges give you quick and accurate readings on the size, less than perfect roundness, or wear.

Tips: How to calibrate a dial bore gauge?

Calibrate the working stroke of the movable probe.

Compress the movable probe of the inner diameter gauge with the positioning bridge by hand, and read the data on the indicator gauge.
Compress the expansion spring measuring head of the expansion spring inner diameter gauge by hand to measure twice, and read on the indicator gauge.
Use a micrometer to measure the steel ball's inner diameter gauge to measure the working stroke of the steel ball.
When measuring, pay attention to placing the two measuring steel balls between the micrometer anvil and the micrometer screw, and make the axis of the two steel balls coincide with the axis of the micrometer screw.

Warranty

Thank you for buying industrial test and measurement equipment on sisco.com, all products sold by sisco and the partner cover a 12 months warranty, effective from the date of receiving the products.

What is covered?

sisco is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.

What is not covered?

Product purchased from anyone other than a sisco store or a sisco authorized reseller.
Expendable parts.
Routine cleaning or normal cosmetic and mechanical wear.
Damage from misuse, abuse or neglect.
Damage from use of parts other than sisco approved.
Damage from use outside the product’s usage or storage parameters.
Damage from use of parts not sold by sisco.
Damage from modification or incorporation into other products.
Damage from repair or replacement of warranted parts by a service provider other than a sisco authorized service provider.
Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Nicholas | Date: 3/22/2023 6:20 PM

This dial gauge provides accurate measurements every time!

I have been using this dial gauge and it has never let me down. The meter is sturdy and the readings are always consistent. It is easy to use and provides accurate measurements every time. My co-workers have also complimented it on how well it works.
