An analog force gauge is a mechanical device used to measure force, typically in both tension (pull) and compression (push) applications. Unlike digital models, it operates without batteries or electronics, relying on a spring mechanism that moves a needle across a dial to display the measurement. Analog Force Gauges are durable, straightforward to use, and ideal for environments where electronics may be impractical or unnecessary. They’re commonly used in quality control, material testing, and industrial applications, providing reliable force measurements in units like Newtons (N), pounds-force (lbf), or kilograms-force (kgf).
Overview
The shell of the tension force gauge is made of high-quality ABS plastic, with high strength and good toughness. The pointer dial is convenient for reading, accurate measurement and high precision. The force gauge tester is widely applied in pull-push load testing industries like electric, high & low voltage electric appliances.

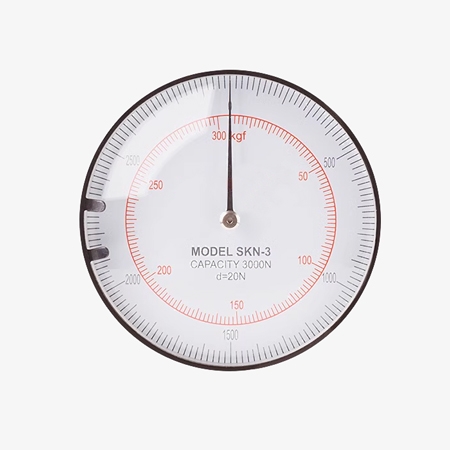

Large screen display, clear and intuitive display
- The analog force gauge features a high-contrast, well-marked dial, making readings quick and easy, even in low-light environments.
- The dial includes bold, legible numbers, allowing users to obtain precise readings at a glance.
- The dial is protected with an anti-glare cover, ensuring visibility from various angles and reducing eye strain during extended use.

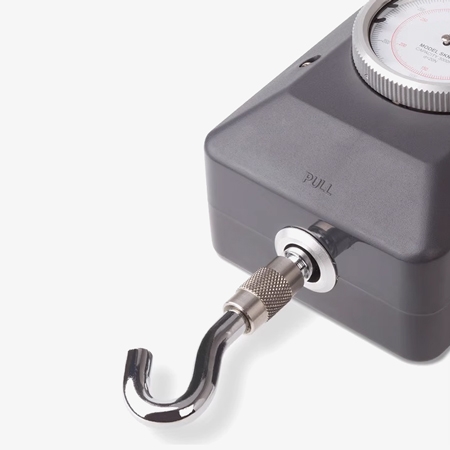

The analog force gauge design with a alloy tie rod which has stronger load-bearing capacity
- The push-pull rod is made of alloy material, which can withstand greater push-pull force, has clear threads, and can be fitted with different probes to cope with different environments.
- The alloy design significantly improves the gauge's capacity for both compression and tension testing, making it suitable for demanding applications.
- The pull rod features a corrosion-resistant coating, ensuring longevity and durability in varied testing environments.

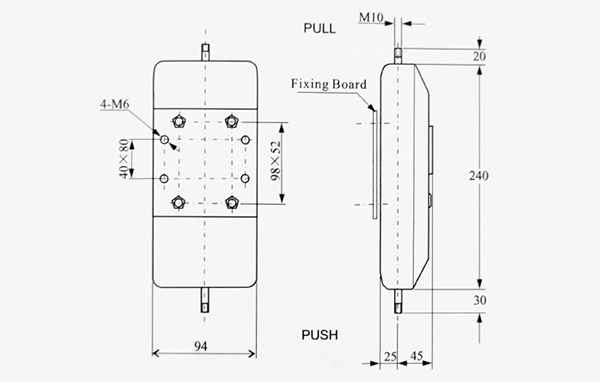

Dimension
Applications
SISCO pull push force gauge is suitable for push-pull load test in industries such as electronic appliances, light industry textiles, construction hardware, lighters and ignition devices, fire-fighting equipment, pens, locks, fishing gear, power machinery, scientific research institutions, etc.
Building Hardware
Light Industry and Textiles
Auto Parts
Electronic Appliances
Specs
| Model | SISCO-DFG-SKN-1 | SISCO-DFG-SKN-2 | SISCO-DFG-SKN-3 | SISCO-DFG-SKN-5 |
| Measuring Range | 1000N | 2000N | 3000N | 5000N |
| Graduation Value | 5N | 10N | 20N | 20N |
| Accuracy | ±2% FS | |||
| Center Axis Travel | 10mm | |||
| Operating Temperature | 20±10℃ | |||
| Transportation Temperature | -27℃~70℃ | |||
| Dimensions | 290*94*70mm | |||
| Weight | 3.5kg | |||
FAQs
Q1: What is a digital force gauge?
A1: The digital force gauges are force-measuring devices with built-in load cells and are used to measure compression, tension, peel, or the coefficient of friction.
Q2: What does a force gauge measure?
A2: A Force Gauge is a measuring instrument used across all industries to measure the force during a push or pull test. Applications exist in research and development, laboratory, quality, production, and field environment. There are two kinds of force gauges today: mechanical and digital force gauges.
Q3: How do you read a force gauge?
A3: The switch is usually located on the face of the tool. Remember that tension (a pulling force) will be displayed as a positive number. Compression (a pushing force) will be displayed as a negative number.
Tips: What is an Analog Force Gauge?
