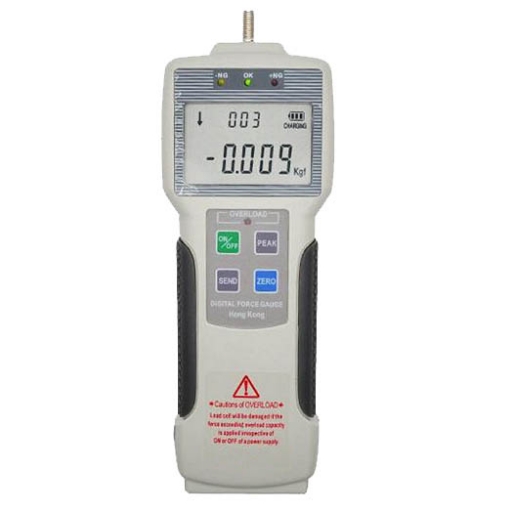

SISCO digital pull force gauge with 0-5 N measuring range. The digital force gauge with an overload warning LED light, is suitable for push-pull load tests in industries such as electronic appliances, light industry textiles, construction hardware, fire-fighting equipment and scientific research institutions, etc.
Note: This device does not have the ability to connect to a computer to transfer data or perform other operations.
- High precision and high resolution of digital force meter
- There are five test modes and three display modes to choose from-to maximize test efficiency
- Three measurement units, N/KGF/LBF, are available for selection and mutual conversion
- Gravity acceleration value setting function -The user can input the exact value of the gravity acceleration of the place of use. Make tests and unit conversions more accurate
- Peak hold function, keep the peak display until manually cleared
- Automatic peak value function, keep displaying the peak value for 2 seconds and then release it automatically
- The upper and lower limits and comparison values can be set for statistical analysis, and the buzzer will alarm if the comparison value is exceeded
- The data storage function can store 128-bit test values
- Green and environmentally friendly, it will automatically shut down if there is no operation in 10 minutes
- High-quality charging power supply, the charging voltage is available from 100V to 240V, which can be adapted to most areas at home and abroad. There are also short circuit, leakage, and overload protection functions
- 2 sets of installation dimensions, suitable for most testing machines at home and abroad, convenient for users to install on the machine for use
- The unique switch contact on-off force test function makes the switch on-off force test more accurate
Applications
SISCO digital force gauge is suitable for push-pull load test in industries such as electronic appliances, light industry textiles, construction hardware, lighters and ignition devices, fire-fighting equipment, pens, locks, fishing gear, power machinery, scientific research institutions, etc.
- Model: SISCO-ZP-5
- Range: 10mN~5N
- Resolution: 0.001N
- Display: 5N
- Display Unit: N/KGF/LBF
- Size: 78*32.2*220.5mm
- Operating Temperature: 0-40℃
- Show Update: 10 times/ sec
- Weight: 500g
Dimension (mm)
Q1: What is a digital force gauge?
A1: The digital force gauges are force-measuring devices with built-in load cells and are used to measure compression, tension, peel, or the coefficient of friction.Â
Q2: What does a force gauge measure?
A2: A Force Gauge is a measuring instrument used across all industries to measure the force during a push or pull test. Applications exist in research and development, laboratory, quality, production, and field environment. There are two kinds of force gauges today: mechanical and digital force gauges.
Q3: How do you read a force gauge?
A3: The switch is usually located on the face of the tool. Remember that tension (a pulling force) will be displayed as a positive number. Compression (a pushing force) will be displayed as a negative number.
Tips: Why choose a digital force gauge?
- Hand-held design, the overall structure is relatively small in size, it is more convenient to carry, and it will be easier and more convenient to test. Especially in terms of application, it can be used in combination with various fixtures, and the force value tested will become more and more accurate.
- The pointer reading method has high test accuracy, and the selected sensors are all first-line brands. The accuracy of SISCO digital push-pull force gauge will be significantly improved in use, and it will become more convenient and efficient when reading at ordinary times.
- The peak hold function is good, and the time for reading will be sufficient. If the test frequency is high, the instructions can be switched quickly and freely, and the program will record the data of each test. Then, the SISCO digital display push-pull gauge can be connected to a printer, and the data of each test can be printed out directly after the connection.
- The conversion units are relatively complete, with no need for unit conversion, and can be displayed simultaneously for Newtons and kilograms. So, it will be more and more helpful for reading or reference.
- When designing the digital push-pull force gauge, it is equipped with a tolerance indicator device, so that if there is a large error, it can be adjusted reasonably, so as to ensure that the test data will be more accurate, so The reference value it possesses will also be greater.
