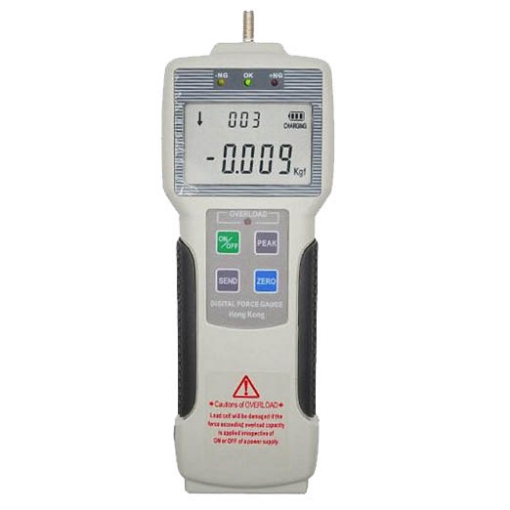

    0-50 N Digital Force Gauge, 0.01N

    High-precision digital force gauge with a measuring range of 0-50 N, 0.01N resolution. The electronic force gauge has multiple displays in N/KG/LB, auto unit conversion which is a small, simple, multi-functional and high-precision push and pull test instrument.
    SKU: SISCO-DFG-50N
    $206.78
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    The digital force gauge comes with a 0-50N range, and 0.01N resolution. The digital push-pull force gauge has upper and lower limits that can be set for statistic analysis, the buzzer will alarm if exceeding the limits.

    Note: This device does not have the ability to connect to a computer to transfer data or perform other operations.

    Digital force gauge detail
    • High precision and high resolution
    • There are five test modes and three display modes to choose from—to maximize test efficiency
    • Three measurement units, N/KGF/LBF, are available for selection and mutual conversion
    • Gravity acceleration value setting function -The user can input the exact value of the gravity acceleration of the place of use. Make tests and unit conversions more accurate
    • Peak hold function, keep the peak display until manually cleared
    •  Automatic peak value function, keep displaying the peak value for 2 seconds and then release it automatically
    • The upper and lower limits and comparison values can be set for statistical analysis, and the buzzer will alarm if the comparison value is exceeded
    • The data storage function can store 128-bit test values
    • Green and environmentally friendly, it will automatically shut down if there is no operation in 10 minutes
    • High-quality charging power supply, the charging voltage is available from 100V to 240V, which can be adapted to most areas at home and abroad. There are also short circuit, leakage, and overload protection functions
    • 2 sets of installation dimensions, suitable for most testing machines at home and abroad, convenient for users to install on the machine for use
    • The unique switch contact on-off force test function makes the switch on-off force test more accurate


    Applications

    SISCO digital force gauge is suitable for push-pull load test in industries such as electronic appliances, light industry textiles, construction hardware, lighters and ignition devices, fire-fighting equipment, pens, locks, fishing gear, power machinery, scientific research institutions, etc.

    Digital force gauge application

    Specs
    • Model: SISCO-ZP-50
    • Range: 0-50 N
    • Resolution: 0.01N
    • Display: 50N
    • Display Unit: N/KGF/LBF
    • Size: 78*32.2*220.5mm
    • Operating Temperature: 0-40℃
    • Show Update: 10 times/ sec
    • Weight: 500g

    Dimension (mm)

    Digital force gauge dimension

    FAQs

    Q1: What is a digital force gauge?
    A1: The digital force gauges are force-measuring devices with built-in load cells and are used to measure compression, tension, peel, or the coefficient of friction.

    Q2: What does a force gauge measure?
    A2: A Force Gauge is a measuring instrument used across all industries to measure the force during a push or pull test. Applications exist in research and development, laboratory, quality, production, and field environment. There are two kinds of force gauges today: mechanical and digital force gauges.

    Q3: How do you read a force gauge?
    A3: The switch is usually located on the face of the tool. Remember that tension (a pulling force) will be displayed as a positive number. Compression (a pushing force) will be displayed as a negative number.

    Tips: Tips for using a digital force gauge

    • Do not knock or place heavy objects on the display board.
    • When not in use, use the zero adjustment knob to make the digital push-pull gauge display at the "0000" position, and turn off the power.
    • Do not drop, drop or collide with the digital force gauge, or use it roughly and carelessly, as it is a precision measuring instrument that will be damaged.
    • Do not store the digital gauge in a high humidity. or high-cold place, which will make the inside of the instrument prone to condensation, degrade the function and cause damage.
    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
