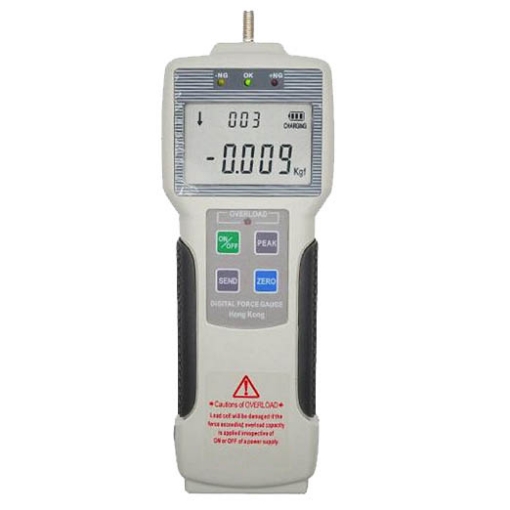

0-500 N Digital Force Gauge, 0.1N

High-accuracy digital force gauge with a measuring range of 0-500 N, 0.1N resolution. The digital pull force gauge support three different units display of Lb, Kg, N, one-button switching, easy to operate.

SKU: SISCO-DFG-500N

$221.39

Qty:

i h

Free shipping

Delivery date: 7-12 days

Overview
Specs
FAQs
Warranty
Reviews

Overview

The digital force gauge comes with a 0-500N range, and 0.01N resolution. The battery of the digital push-pull force gauge has short circuit, leakage, and overload protection, and effectively protect the safety of the product.

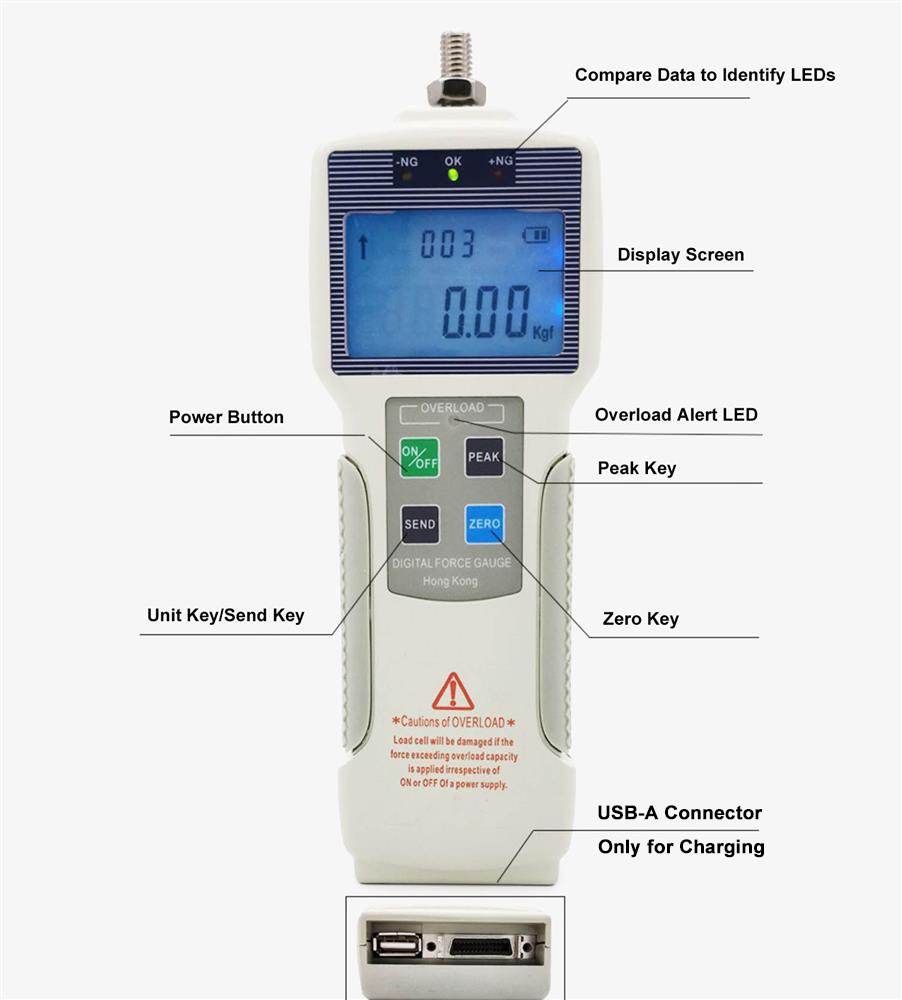

High precision and high resolution
There are five test modes and three display modes to choose from—to maximize test efficiency
Three measurement units, kg (kilogram), lb (list), and N (Newton), are available for selection and mutual conversion
Gravity acceleration value setting function -The user can input the exact value of the gravity acceleration of the place of use. Make tests and unit conversions more accurate
Peak hold function, keep the peak display until manually cleared
Automatic peak value function, keep displaying the peak value for 2 seconds and then release it automatically
The upper and lower limits and comparison values can be set for statistical analysis, and the buzzer will alarm if the comparison value is exceeded
The data storage function can store 128-bit test values;
Data output function, the data can be input into the computer through the data line for various analyses;
Green and environmentally friendly, it will automatically shut down if there is no operation in 10 minutes;
High-quality charging power supply, the charging voltage is available from 100V to 240V, which can be adapted to most areas at home and abroad. There are also short circuit, leakage, and overload protection functions;
2 sets of installation dimensions, suitable for most testing machines at home and abroad, convenient for users to install on the machine for use
The unique switch contact on-off force test function makes the switch on-off force test more accurate

Applications

SISCO digital force gauge is suitable for push-pull load test in industries such as electronic appliances, light industry textiles, construction hardware, lighters and ignition devices, fire-fighting equipment, pens, locks, fishing gear, power machinery, scientific research institutions, etc.

Digital force gauge application

Specs

Model: SISCO-ZP-500
Range: 0-500 N
Resolution: 0.1N

Display: 500N
Display Unit: N/KGF/LBF
Size: 78*32.2*220.5mm

Operating Temperature: 0-40℃
Show Update: 10 times/ sec
Weight: 500g

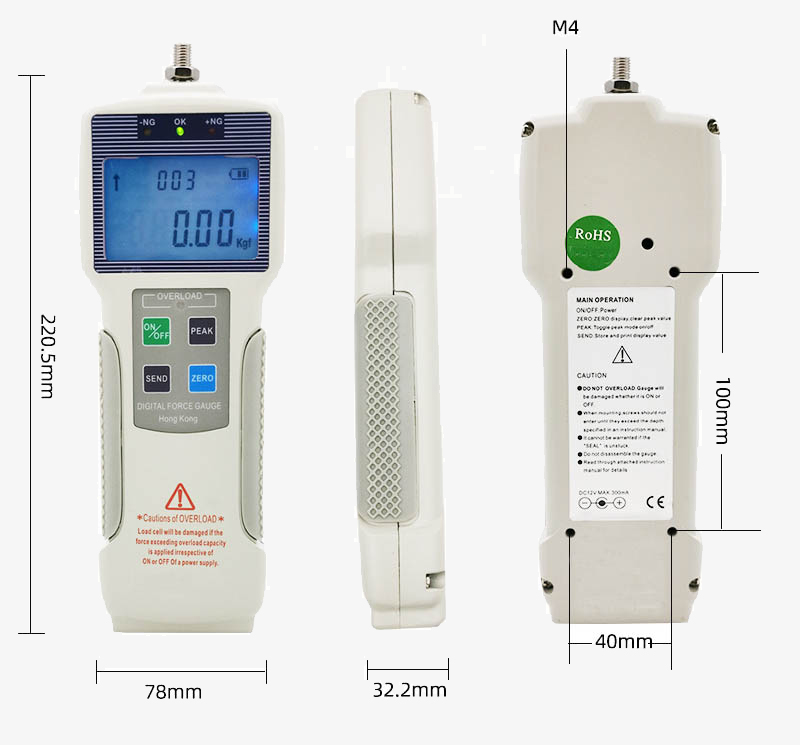

Dimension (mm)

Digital force gauge dimension

FAQs

Q1: What is a digital force gauge?
A1: The digital force gauges are force-measuring devices with built-in load cells and are used to measure compression, tension, peel, or the coefficient of friction. Digital force gauges feature data management on a PC and detailed analysis based on the data.

Q2: What does a force gauge measure?
A2: A Force Gauge is a measuring instrument used across all industries to measure the force during a push or pull test. Applications exist in research and development, laboratory, quality, production, and field environment. There are two kinds of force gauges today: mechanical and digital force gauges.

Q3: How do you read a force gauge?
A3: The switch is usually located on the face of the tool. Remember that tension (a pulling force) will be displayed as a positive number. Compression (a pushing force) will be displayed as a negative number.

Tips: What does a force gauge do?

Force gauges are measuring tools that measure the magnitude of the force on an object during a test or operation. Various industries use them for test and quality control purposes, including manufacturing. The most common use of force gauges is to complete push or pull tests.

Warranty

Thank you for buying industrial test and measurement equipment on sisco.com, all products sold by sisco and the partner cover a 12 months warranty, effective from the date of receiving the products.

What is covered?

sisco is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.

What is not covered?

Product purchased from anyone other than a sisco store or a sisco authorized reseller.
Expendable parts.
Routine cleaning or normal cosmetic and mechanical wear.
Damage from misuse, abuse or neglect.
Damage from use of parts other than sisco approved.
Damage from use outside the product’s usage or storage parameters.
Damage from use of parts not sold by sisco.
Damage from modification or incorporation into other products.
Damage from repair or replacement of warranted parts by a service provider other than a sisco authorized service provider.
Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.

2 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Leander | Date: 11/26/2023 6:20 PM

Lightweight, portable and versatile

This digital force gauge is really great! I needed a lightweight and portable force measuring tool to use in different occasions. This product meets my needs perfectly, not only is it accurate and reliable, but it is also very portable.The 0.1N resolution is more than enough for my application and the price is relatively reasonable.

From: Ryan | Date: 8/24/2023 11:13 PM

Compact and easy to use

I'm an engineer and have used many instruments. I was very happy with this force gauge. Perfect for compression, and tensile testing in a compact form. Wide range of force measurability and high resolution.
