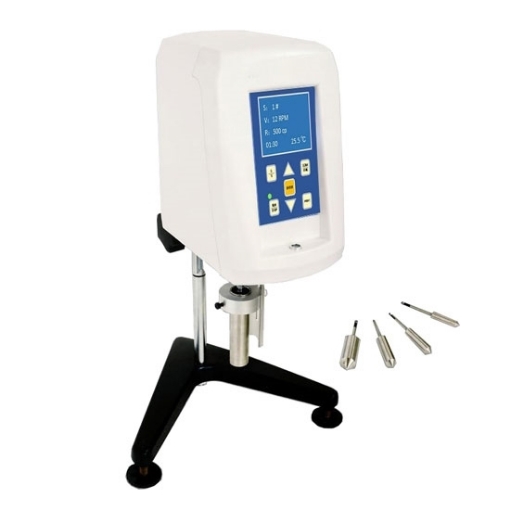

Digital rotational viscometer comes with 4 spindles of 21#, 27#, 28#, 29#, which provides accurate and fast measurement of 10 to 200,000 mPa路s, easy operation and direct readout of viscosity at power supply 110~230V 50Hz/60Hz. This rotary viscometer is suitable for a variety of industrial and laboratory applications.
Features
- The digital rotational viscometer can measure the viscosity of a Newtonian liquid or the apparent viscosity of a non-Newtonian liquid.
- Adopt the advanced micro-computer drive technology and stepper motor, accurate and stable rotating speed.
- The horizontal display unit is at the front of the viscometer, convenient to adjust.
- The measuring range and viscosity value can be accurately display with resolution of 0.01mPa路s.
- With timing measurement function, it is practical for measuring the non-Newtonian liquid.
- With automatic scanning, the viscometer can automatically recommend a preferred combination of rotor and speed.
- The viscosity measurement range of the selected rotor and rotating speed is automatically displayed.
- With the printing interface, a micro-printer can be connected to print various data.
All metal lifting parts
- Digital rotary viscometer has all-metal lifting parts, high stability, strong and durable. The operating knob is covered with rubber, which is comfortable and labor-saving.
- Digital rotary viscometer uses a large number of high-quality aluminum-magnesium alloy, stainless steel and other materials, and is processed by high-precision processing equipment to ensure the reliability and accuracy of the whole machine.
- The whole lifting column and rack part are made of pure copper, and cooperate with the high-precision gear components in the lifting slider to provide the host with a stable and smooth operating experience.
Rich extension interface
The digital rotational viscometer has an external power supply, wide voltage input, which can be equipped with high-precision temperature sensor, PC data acquisition software, portable printer, etc.
Applications
sisco digital rotary viscometer is widely used in the manufacturing, scientific research institutes or laboratory for viscosity measurement of oils, greases, paints, coatings, pulp, textiles, food, pharmaceuticals, adhesives and cosmetics, etc.
| Model | SISCO-SNB-1A |
| Measuring Range | 10~200,000 mPa路s |
| Rotating Speed (r/min) | 0.5, 1, 2, 5, 10, 20, 50 |
| Resolution | 0.01 mPa路s |
| Rotor | 21#, 27#, 28#, 29# |
| Sample Consumption | 15mL-25mL |
| Measuring Accuracy | 卤2% (full range) |
| Repeatability | 卤0.5% |
| Display | LCD display |
| Timing Measurement Function | Yes |
| Auto Scanning Function | Automatically recommending the optimal combination of the rotor and rotating speed according to the sample viscosity. |
| Measuring Range Display Function | Automatically displaying the maximum viscosity value measurable for the selected rotor and speed combination. |
| Data Output Interface | Yes |
| Power Supply | AC 100-230V 50/60Hz |
| Net Weight | 7kg |
| Size | 300*300*450mm |
| Standard Packing List | Viscometer main machine Rotor 21#, 27#, 28#, 29# Rotor protective frame Sample cylinder Triangular base and column Aluminum alloy carrying case Power adapter |
| Optional Accessories | Temperature probe, Software, Mini printer |
Q1: What is a viscometer?
A1: A viscometer is an instrument used to measure the viscosity of fluids (liquids and gases). Viscosity is a physical quantity that indicates the internal friction within the fluid when the fluid is flowing. It is the ability of the fluid to resist deformation. It is an important indicator used to identify some finished or semi-finished products. Viscosity varies from fluid to fluid and varies with temperature. There are mainly three types of capillary viscometers, rotational viscometers and falling ball viscometers.
Q2: What is the definition of viscosity?
A2: When a liquid is flowing, the property of internal friction between its molecules is called the viscosity of the liquid. The viscosity of the liquid is expressed by viscosity, which is a resistance factor used to characterize the properties of the liquid. The viscosity of insulating oil is the same as the viscosity of general liquid, that is, the internal friction of the liquid, that is, when the insulating oil moves relative to laminar flow under the action of external force. The properties of insulating oil molecules that generate internal frictional resistance. The greater the internal friction of the insulating oil, the greater the viscosity, the more difficult the flow, and the poorer heat dissipation performance.
Q3: What is a viscometer used for?
A3: Viscosity is an important physical parameter used to measure the ability of liquids to resist flow. Using a viscometer to measure the viscosity of a liquid is an important means of industrial process control, improving product quality, and saving and developing energy. It is closely related to the fields of petroleum, chemical, electric power, metallurgy and national defense. Status plays an important role.
Tips for installing viscometer
- Care should be taken when loading and unloading the rotor. When loading and unloading, the connecting screw should be slightly lifted for operation. Do not use too much force, and do not force the rotor laterally to prevent the rotor from bending.
- Please do not put the viscometer with the rotor installed on its side or upside down.
- The connecting end face and thread of the connecting screw and rotor should be kept clean, otherwise the shaking of the rotor will be affected.
- The viscometer should be supported by hand when it goes up and down to prevent the viscometer from falling due to its own weight.
- After replacing the rotor, please input the new rotor number in time. After each use, the replaced rotor should be cleaned (wiped clean) in time and put back in the rotor holder. Please do not leave the rotor on the instrument for cleaning.
- When changing the liquid under test, please clean (wipe clean) the rotor and the rotor protection frame in time to avoid measurement errors caused by the confusion of the liquid under test.
- Viscometers and rotors are matched one-to-one, please do not confuse several instruments and rotors.
- Please do not disassemble and adjust the instrument parts at will.
- When moving and transporting the instrument, put the yellow cap on the connecting screw, tighten the screw, and put it in the packing box.
- After installing the rotor, please do not rotate it for a long time without liquid, so as not to damage the shaft tip.
- Many of suspensions, emulsions, polymers and other high-viscosity liquids are "non-Newtonian liquids", and their viscosity values vary with conditions such as shear speed and time. The inconsistency between the results measured under time and time is a normal situation, not an instrument error. The determination of non-Newtonian liquids should generally specify the rotor, speed and time.
