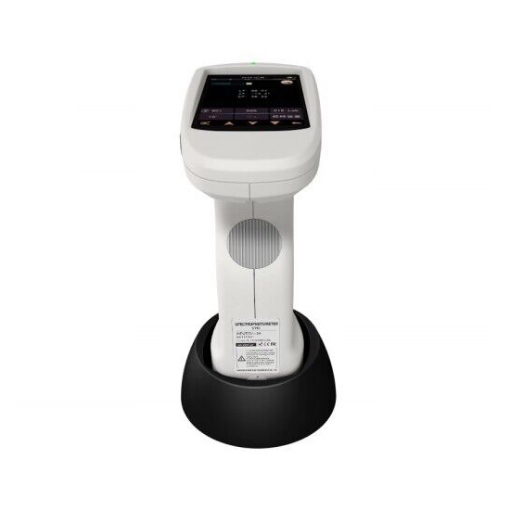

SISCO digital spectral colorimeter delivers high accuracy at an unbeatable price, making it the ideal choice for those who demand quality without overspending. Whether you’re testing materials for industrial applications or conducting research, this electronic colorimeter provides the consistency you need.
- Large Area Photodiode Array: Hand-held spectral colorimeter equipped with 32 groups of dual-column sensors for enhanced accuracy.

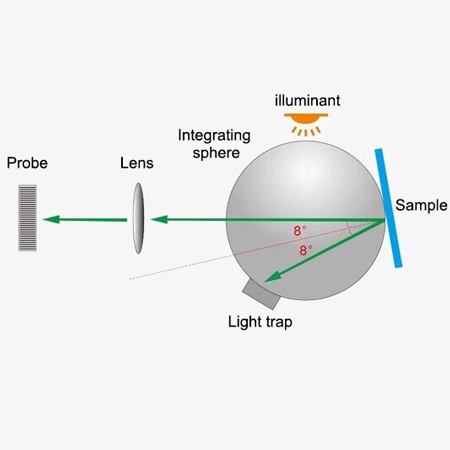

- International D/8 Structure: Colorimeter instruments support SCI+SCE simultaneous fast measurement, ensuring precise color evaluation.
- Advanced Light Sources: A colorimeter spectrometer combines a full spectrum LED light source with a UV light source for comprehensive color analysis.
- Multiple Aperture Options: The SISCO-CM-ST60 model offers 4 measurement apertures, while the SISCO-CM-ST70 model provides 5 apertures to cater to different measurement needs.
- Built-in Camera for ST70: The ST70 model features an integrated camera, allowing for clear observation of the measurement area.
- Non-Contact Automatic Calibration: Utilizes a professional imported whiteboard that is more resistant to wear and dirt, ensuring stable performance.
- Rich Chromaticity Index: SISCO electric colorimeter offers a wide range of chromaticity indices for detailed color assessment.

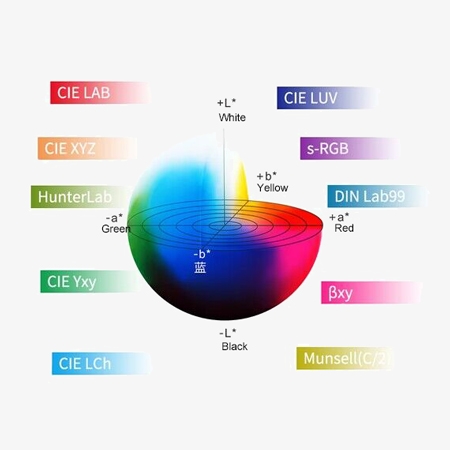

- Versatile Color Measurement: Supports 10 color measurement spaces and 41 observation light sources, providing flexibility for various applications.
Application
The colorimeter can easily achieve accurate color transmission and be used as precision color testing equipment. It is widely used in plastic, electronics, paint, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetic and food industries, research institutes, schools and laboratories.
Â
| Model | SISCO-CM-ST60 | SISCO-CM-ST70 |
| Optical Geometry | D/8 (diffused ilumination, 8-degree viewing angle)SCI (specular component included)/SCE (specular component excluded) | |
| Integrating Sphere Size | φ40mm | |
| Light Source | Combined full spectrum L ED light source, UV light source | |
| Spectrophotometric Mode | Â Flat Grating | |
| Sensor | Silicon photodiode array (double row 26 groups) | |
| Wavelength Range | 360~700nm | 360~780nm |
| Wavelength Interval | 10nm | |
| Measured Reflectance Range | 0-200% | |
| Measuring Aperture | 4 Apertures(φ8mm/φ10mm/φ4mm/φ5mm) | 5 Apertures(φ8mm/φ10mm/φ4mm/φ5mm/1x3mm) |
| Specular Component | SCI&SCE | |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, Bxy, DIN Lab99, Munsell(C/2) | |
| Color Difference Formula | â–³E*ab, â–³E*uv,AE*94, â–³E*cmc(2:1), â–³E* cmc(1:1), â–³E*00, DINAE99, â–³E(Hunter) | |
| Other Colorimetric Index | Spectral reflectance, WI(ASTM E313,CIE/ISO, AATCC, Hunter, TaubeBergerStensby) | |
| Observer Angle | 2°/10° | |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8,F9, F10(TPL5), F11(TL84) | |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color simulation, Color Offset |
|
| Measuring Time | About 1.5s | |
| Repeatability | Chromaticity value: MAV/SCI, withinâ–³E*ab 0.025 | Chromaticity value: MAV/SCI, within DE*ab 0.02 |
| Inter-instrument Error | MAV/SCI, Within AE*ab 0.15 (Average for 12 BCRA Series II color tiles) | |
| Display Resolution | 0.01 | |
| Measurement Mode | Single Measurement, Average Measurement(2-99 times) | |
| Locating Method | Camera Locating stabilizer cross position | |
| Battery | Liion battery, 8800 measurements within 8 hours | |
| lluminant Life Span | 10 years, more than 1.5 million times measurements | |
| Displayed Data | 3.5-inch TFT color LCD, Capacitive Touch Screen | |
| Data Port | USB, Bluetooth | |
| Data Storage | Standard 1000 Pcs, Sample 30000 Pcs, APP/PC mass storage | |
| Software Support | Andriod, IOS, Windows, Harmony OS, Wechat applets | |
| Operating Environment | 0~40°C, 0~85%RH (no condensing ), Altitude < 2000m | |
| Dimension | 129x76x217mm | |
| Weight | 600g | |
SISCO-ST60 Spectral Colorimeter User Manual.pdfQ1:Â How does a colorimeter work?
A1:Â Colorimeters rely on the concept of the Beer-Lambert law, which assumes that the absorbance of a substance is proportional to its concentration. For example, the higher the concentration of a solution, the higher the absorbance reading. Many chemical and biological experiments are based on this concept. To obtain a Beer's law curve, several standards (solutions of known concentration) are prepared and their absorbance values are determined using a colorimeter.
Q2:Â What is colorimetry?
A2: A colorimeter is a device that measures light absorbance (how much light is absorbed) and light transmission (how much light passes through) in a liquid by analyzing the intensity of the color.
Q3:Â What are the limitations of a colorimeter?
A3: One limitation of chemical colorimeters is that differences in certain substances may lead to inaccurate test results. According to Global Water Instrumentation, because these differences are different for each substance, a chemical colorimeter alone is not a completely foolproof testing device.
Tips: Do I need to perform manual calibration with your colorimeter?
While our colorimeter is designed with automatic calibration to maintain accuracy, you can still perform manual calibration if needed for specific applications or verification purposes. However, the automatic function significantly reduces the frequency and need for manual adjustments.
