Flexible Current Transformer, 10000A AC, 7.5mm

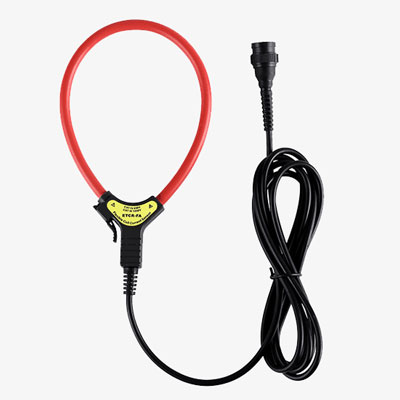

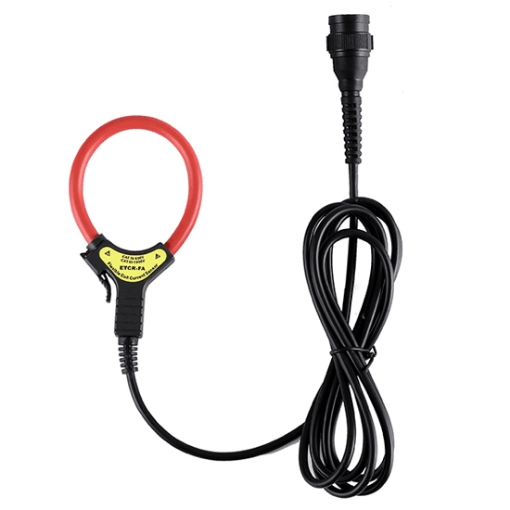

The flexible current transformer coil diameter Φ7.5mm, range 0A~10000A, coil inner diameter φ50mm,100mm, 500mm optional. The Coil current transformer is soft and flexible, with no exposed metal conductors in the coil section, making it suitable for measuring current in conductors of very large size or irregular shape.

SKU: SISCO-FCT-FA

Model *
Integrator Output Connector *

$99.87

Qty:

i h

Free shipping

Delivery date: 7-12 days

Overview
Specs
FAQs
Warranty
Reviews

Overview

Buy 10000A AC flexible current transformer online, resolution 10mA, coil diameter Φ7.5mm, coil length and interface are customizable. Flexible current transformer is the ideal tool for detecting AC currents, high harmonic currents, complex waveform currents, transient inrush currents.

Non-contact measurement, safe and reliable.

The flexible coil current transformer consists of a coil and a handle, without any exposed metal conductor in the coil part, non-contact measurement, safe and reliable.
The flexible current transformer is small, light, flexible, and suitable for narrow environments and densely lined places, as well as for measuring conductor currents of large size or irregular shape.
Wide measurement range, high accuracy, high reliability, and wide response band. It is especially suitable for relay protection, silicon-controlled rectification, frequency control, semiconductor switching, power electronic conversion equipment, arc welding, and other industrial environments with severe signal distortion.

Application

Flexible current transformers are an indispensable accessory for small, medium, and large electronic companies. The sisco flexible current transformer is suitable for use in power equipment testing, communications and telecommunications, railway and oilfield monitoring, building and construction companies, research and teaching units, industrial and mining records, and other fields.

Clamp-on current transformer applications

Specs

Model	SISCO-ETCR-FA
Measuring Range	AC 0A～10000A
Coil Diameter	7.5mm
Resolution	10mA
Accuracy Level	1%FS (50Hz/60Hz; 23°C to 2°C, below 70%RH, wire in the center of the coil)
Phase Error	≤0.1°(50Hz/60Hz; 23℃±2℃)
Integrator Output Connector	3.5mm audio plug/BNC connector/bare wire(optional)
Wire Length	2M
Integrator Mass	Approx. 205g
Integrator Output Connector	3.5mm audio plug/BNC connector/tip (optional)
Integrator Output Cable Length	2m
Electric Field Interference	No hysteresis effect, no external electric field interference
Wire Position	The test wire is in the center of the coil, position error ≤ 0.5% FS
Response Frequency	0.1Hz ~ 1MHz
Line Voltage	AC 1000V or less line test
Random Accessories	Flexible coil x 1, integrator x 1, 6F229V battery x 1
Working Temperature and Humidity	-20℃～50℃; 80%rh or less
Storage Temperature and Humidity	-10℃～60℃；70%rh below
Dielectric Strength	AC 2000V/rms (both ends of the coil after unlocking and unfolding)
Safety Regulation	CAT IV 500V, CAT Ⅲ 1000V

Model (optional)

Model	Coil Inner Diameter	Coil Length	Coil Mass
SISCO-ETCR50FA	Φ50mm	160mm	80g
SISCO-ETCR100FA	Φ100mm	320mm	90g
SISCO-ETCR150FA	Φ150mm	480mm	100g
SISCO-ETCR200FA	Φ200mm	640mm	110g
SISCO-ETCR300FA	Φ300mm	950mm	132g
SISCO-ETCR500FA	Φ500mm	1580mm	170g
SISCO-ETCR1000FA	Φ1000mm	3150mm	290g
SISCO-ETCR1500FA	Φ1500mm	4720mm	390g

Details

Integrator Output Connector

FAQs

Q1: What is a flexible current transformer?
A1: A flexible current transformer is an AC current sensor consisting of a toroidal coil uniformly wound on a non-ferromagnetic material and an integrator. The output signal is the differentiation of current against time and can be directly applied to the conductor being measured to measure AC current.

Q2: What are the advantages of flexible current transformers?
A2: Flexible current transformers are essentially just a pair of cables, allowing you to easily reach even the tightest sections. This feature is also particularly handy when you are working in high places. The design of the flexible current transformer eliminates the risk of encountering a secondary open circuit. As a result, the risk of electrocution or transformer overload is mitigated. Of course, this doesn't mean you can be lax about safety procedures, but it does provide a sense of security when working.

Q3: What are the wiring methods of current transformers?
A3: There are two types of current transformer wiring, the first is the use of two current transformers two-phase V-shaped wiring and two-phase current differential wiring, and the second is the use of three current transformers three-phase Y-shaped wiring, three-phase triangle wiring, and zero sequence wiring.

Tips: Current transformer wiring principles

Do not allow open circuits. A secondary open circuit is easy to cause safety accidents because the secondary open circuit will lead to core overheating and induction of high voltage.
There must be a point of grounding. A current transformer is a measurement for high voltage, if there is a point of grounding, you can introduce high voltage to the earth, but note that grounding can not be two points, so as not to shunt.
Protection level and measurement level can not be connected to the wrong. Once the two are connected wrong, then it may lead to relay protection is not responsive and inaccurate power measurement.
Unused windings need to be shorted to avoid affecting the measurement accuracy, but the current transformer has multiple taps, the unused taps that need to be carried out and can not be shorted.

Warranty

Thank you for buying industrial test and measurement equipment on sisco.com, all products sold by sisco and the partner cover a 12 months warranty, effective from the date of receiving the products.

What is covered?

sisco is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.

What is not covered?

Product purchased from anyone other than a sisco store or a sisco authorized reseller.
Expendable parts.
Routine cleaning or normal cosmetic and mechanical wear.
Damage from misuse, abuse or neglect.
Damage from use of parts other than sisco approved.
Damage from use outside the product’s usage or storage parameters.
Damage from use of parts not sold by sisco.
Damage from modification or incorporation into other products.
Damage from repair or replacement of warranted parts by a service provider other than a sisco authorized service provider.
Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
