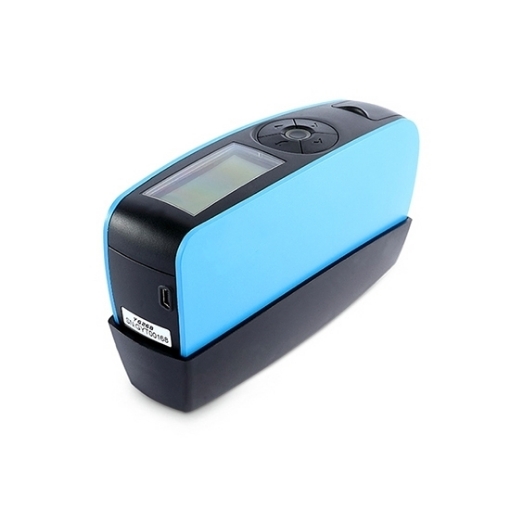

Digital Gloss Meter 85/60/20 Degree, 0~160/1000/2000 GU

The digital gloss meter is available for measuring 20°/60°/85°, measuring range 0~2000/1000/160GU, maximum spot area of 5×38mm, the gloss meter is suitable for gloss measurement and data transmission of paint, marble, ceramic, automobile, metal, and other materials.
SKU: SISCO-GM-20862
$1,104.92
i h
Free shipping
Delivery date: 7-12 days
Overview


The digital gloss meter can measure 20/60/85 degrees, the corresponding gloss unit value is 2000/1000/160GU, the maximum spot area is 5*38mm, repeatability is 0.2~0.2%GU, and the USB/Bluetooth interface supports USB and Bluetooth interfaces. The gloss tester supports basic mode, quality control mode, statistical mode, and continuous mode.

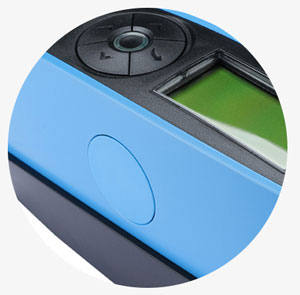

85 degree glossmeter measurement button

Black and white display

  • 2.3 inch black and white display, multiple working modes to choose from, multiple function settings to meet different glossiness measurement requirements.
  • Large storage capacity can store 35000 measurement data.

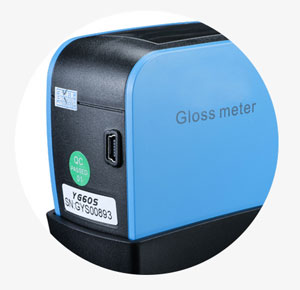

Gloss meter usb interface



Measurement button

  • The ergonomic design of the measurement button is on the right side of the machine.
  • Make sure the calibration plate is clean before calibration, and check if the SN code is the same as the instrument.



Application

Gloss meters are used for floor maintenance, quality control of surface cleaning, gloss measurement of stones and tiles, an inspection of painted objects, quality control of paints, inks, and polished metal surfaces, an inspection of paint protection layers, wax films, car body paint, plastic moldings, detergents, scrubbers, masonry, evaluation of building exteriors.

Gloss meter applications

Specs
Model SISCO-YG268
Measuring Angle 20°, 60°, 85°
Measuring Range 20° 0~2000 GU
60° 0-1000 GU
85° 0-160 GU
Measuring Spot Area 20° 9 x 10 mm
60° 9 x 15 mm
85° 5 x 38mm
Division Value 0.1 GU
Repeatability 0~100 GU: ± 0.2 GU
100~2000 GU: ± 0.2% GU
Auto Power-off Time Within 30s-120s
Long-Time Calibration Automatically check and made the calibration
Storage Total 35000
Basic mode & Statistic mode: 15000
Continuous mode : 10000
QC mode: 10000
Display 2.3 inch white and black screen
Dimension 160*52*84mm
Weight 300g
Power Supply 1pc dry-cell battery (can measure 10000 times) or use USB charge
Interface USB & Bluetooth 2.1 version
PC Software GQC6 QC software can printing testing report and with more extended functions
Operation Temperature 0~40℃ (32~104℉)
Storage Temperature -20~50℃ (-4~122℉)
Humidity <85% relative humidity, no condensation
Standard Accessories USB cable, user manual, calibration plate, QC software
Optional Accessories Miniature printer (Please contact us if you need one)
FAQs

A1: What is a gloss meter?
Q1: Gloss meters are used to measure the surface gloss of materials. A gloss meter is used to measure the reflectance of light on the surface of an object, that is, the specular gloss. Depending on the angle of incidence selected during measurement, the results are also different. The larger the angle of incidence, the higher the specular reflectance, the higher the gloss, and vice versa.

A2: What are the measurement angles of the gloss meter?
Q2: Gloss meter, mainly contains three measuring angles, respectively 20 °, 60 °, and 85 °, different measuring angles for different glossy object surfaces.

A3: How to choose the measuring angle of the gloss meter?
Q3: For different object surfaces, the suitable measurement angle is not the same, general materials, generally use a 60 ° gloss meter can be measured, high gloss materials, you can choose a 20 ° gloss meter, for low gloss materials, you can choose 85 ° gloss meter.

Tips: How often is a gloss meter calibrated?

A gloss meter is a measuring instrument and should be regularly calibrated according to its usage to ensure the accuracy of the instrument. The calibration  period of gloss meter and gloss board generally does not exceed 1 year.
