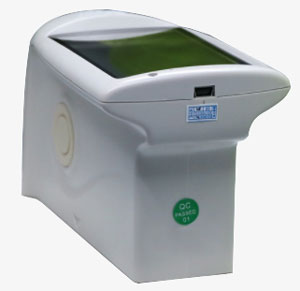

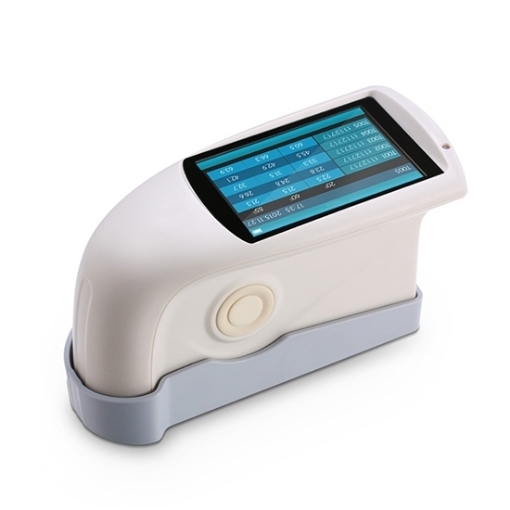

Gloss meter has TFT true color 3.5inch display, capacitive touch screen, can display 5 groups of test data at the same time, easy to compare, large capacity data storage, suitable for testing gloss of paint, ink, baking paint, coating, wood products, etc.
Measurement button
- The ergonomic design of the measurement button is on the right side of the machine.

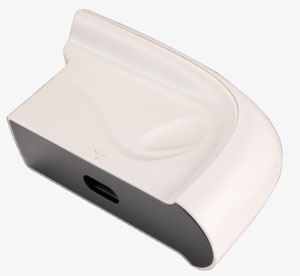

- Make sure the calibration plate is clean before calibration, and check if the SN code is the same as the instrument.
Measurement spot
- Measuring spot 9x15 mm, 60° measurement, gloss meter can measure most applications.
- The gloss meter has stable performance, the range is 0~300GU, and it can measure low gloss.
Application
Gloss meters are used for floor maintenance, quality control of surface cleaning, gloss measurement of stones and tiles, an inspection of painted objects, quality control of paints, inks, and polished metal surfaces, an inspection of paint protection layers, wax films, car body paint, plastic moldings, detergents, scrubbers, masonry, evaluation of building exteriors.
| Model | SISCO-GM-NHG60 |
| Measuring Angle | 60° |
| Measuring Range | 0~1000 GU |
| Measuring Spot Area | 9 x 15 mm |
| Division Value | 0.1 GU |
| Repeatability | 0-10 GU: ± 0.1 GU 10-100 GU: ± 0.2 GU 100-1000 GU: ± 0.2% GU |
| Reproducibility | 0-10 GU: ± 0.2 GU 10-100 GU: ± 0.5 GU 100-1000 GU: ± 0.5% GU |
| Chromaticity Corresponding | Corresponding with CIE 1931 (2°) under CIE C light source |
| Errors | ± 1.2, ± 1.2% |
| Measuring Time | 0.5s |
| Dimension | L*W*H 160mm*75mm*90mm |
| Weight | 350g |
| Battery | 3.7V, 3200mAh Li-ion Battery, ＞10000 times (within 8 hours) |
| Display | TFT 3.5 inch, capacitive touch screen |
| Interface | USB/RS-232 |
| Storage | Basic mode: 1000 Statistical mode: 5000 Continuous mode : 5000 |
| Software | GQC6 Quality Control Software with QC report printing functions and more extended functions |
| Operation Temperature | 0~40℃ (32~104℉) |
| Storage Temperature | -20~50℃ (-4~122℉) |
| Humidity | <85% relative humidity, no condensation |
| Standard Accessories | Power adapter, USB cable, user manual, GQC6 software CD, calibration plate |
| Optional Accessories | Miniature printer (Please contact us if you need one) |
A1:Â What is a gloss meter?
Q1: Gloss meters are used to measure the surface gloss of materials. A gloss meter is used to measure the reflectance of light on the surface of an object, that is, the specular gloss. Depending on the angle of incidence selected during measurement, the results are also different. The larger the angle of incidence, the higher the specular reflectance, the higher the gloss, and vice versa.
A2:Â What are the measurement angles of the gloss meter?
Q2: Gloss meter, mainly contains three measuring angles, respectively 20 °, 60 °, and 85 °, different measuring angles for different glossy object surfaces.
A3:Â How to choose the measuring angle of the gloss meter?
Q3: For different object surfaces, the suitable measurement angle is not the same, general materials, generally use a 60 ° gloss meter can be measured, high gloss materials, you can choose a 20 ° gloss meter, for low gloss materials, you can choose 85 ° gloss meter.
Tips:Â Does the texture of the surface of the object to be measured affect the measurement of the gloss meter?
The texture is glossy to the touch but has dark grain, and the unsmooth is a convex and uneven surface. The texture does not easily jeopardize the gloss meter's accurate measurement of smoothness, but can jeopardize the colorimeter's accurate measurement of hue. Conversely, a non-smooth surface layer can affect the accurate measurement of smoothness, but not easily affect the accurate measurement of hue.
