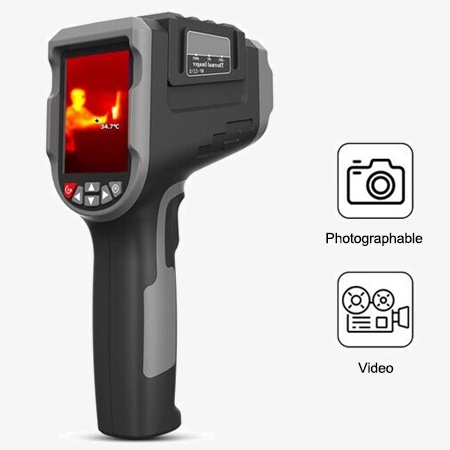

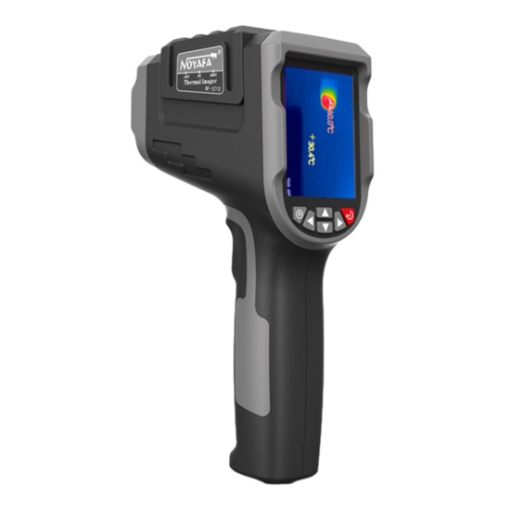

Handheld Digital Thermal Imaging Camera, 120x90 IR Resolution

Details

Q1: How does a thermal imaging camera work?
A1: Thermal imaging camera works by detecting infrared radiation, which is emitted by all objects based on their temperature. The camera's sensor captures this radiation and converts it into an electronic signal. This signal is then processed to create a thermal image or thermogram, where different temperatures are represented by various colors or shades of gray, allowing users to visualize heat patterns and temperature variations.

The camera uses a special lens to focus the infrared light emitted by objects in its field of view. Inside the camera, a phased array of infrared-detector elements creates a detailed temperature pattern called a thermogram. This thermogram is translated into electric impulses, which are then processed by the camera's circuitry to produce a visible image on the display, illustrating the heat distribution of the scene. This technology is widely used in various applications such as detecting termites and mice, conducting electrical and HVAC inspections, firefighting, locating water leaks, and performing building and home inspections.

Q2: Can an infrared thermal imaging camera detect water leaks?
A2: Yes, an infrared thermal imaging camera can effectively detect water leaks. It identifies temperature variations on surfaces, which can indicate the presence of moisture. When water leaks occur, they often cause cooler or warmer spots on walls, floors, or ceilings due to the difference in thermal conductivity compared to dry areas.

By using the thermal imaging camera, technicians can quickly and non-invasively locate the source of the leak without needing to dismantle structures. This makes it a valuable tool for early detection and repair, preventing further damage and reducing maintenance costs.

Q3: Can an infrared thermal imaging camera be used outdoors in various weather conditions?
A3: Yes, infrared thermal imaging cameras can be used outdoors in a variety of weather conditions. They are designed to detect temperature differences and can function effectively in both day and night. However, certain environmental factors like heavy rain, fog, or extreme temperatures can affect the clarity and accuracy of the thermal images. For optimal performance, it is advisable to use the camera in conditions where visibility is not severely obstructed. Additionally, many models are built to withstand harsh outdoor conditions, including being resistant to dust and water, ensuring durability and reliable operation in different environments.

Tips: Can a thermal imaging camera detect water leaks?

Yes, a thermal imaging camera can detect water leaks. While the camera itself doesn't detect water directly, it identifies temperature differences on surfaces. When water leaks, it often causes temperature changes in the surrounding materials due to the water's thermal properties. For example, a damp area might be cooler than the dry surrounding area if the water is cooler, or warmer if the water is heated. By visualizing these temperature variations, a thermal imaging camera can help identify the presence and location of water leaks.

Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.

What is covered?

SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.

What is not covered?

• Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
• Expendable parts.
• Routine cleaning or normal cosmetic and mechanical wear.
• Damage from misuse, abuse or neglect.
• Damage from use of parts other than SISCO approved.
• Damage from use outside the product’s usage or storage parameters.
• Damage from use of parts not sold by SISCO.
• Damage from modification or incorporation into other products.
• Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
• Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
