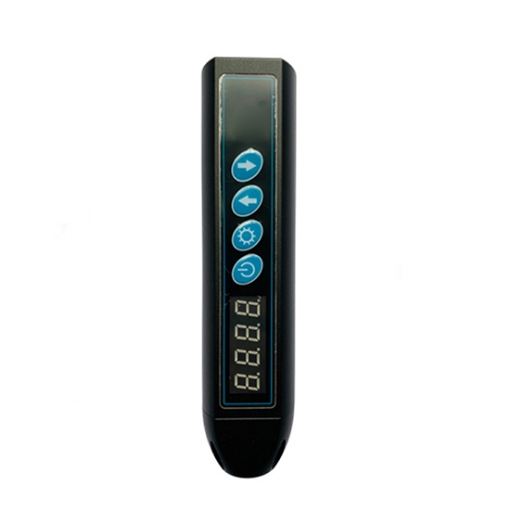

A pen-type electromagnetic ultrasonic thickness gauge is a compact, handheld device used for non-destructive measurement of material thickness, particularly in metals. Its pen-like design offers excellent portability and ease of use, especially in tight or hard-to-reach spaces.

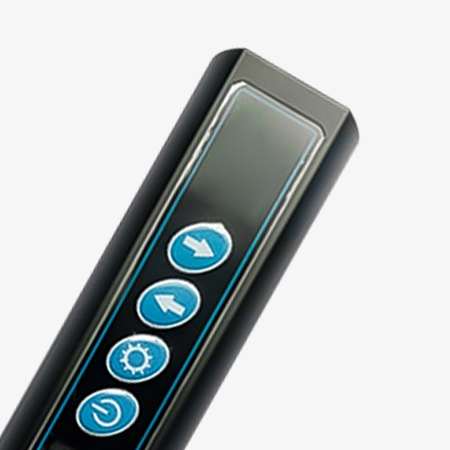

EMAT Thickness Gauge With Metal Shell
- High Durability and Protection. The metal shell significantly enhances the robustness of this ultrasonic thickness gauge. Unlike plastic housings, a metal shell provides superior resistance against impacts, drops, and harsh environmental conditions, such as heat, dust, and moisture.
- Enhanced Durability and Protection. The metal shell provides superior mechanical strength and resistance to physical damage compared to plastic housings. It protects the internal components from impacts, drops, and environmental stress, such as vibration and pressure. Furthermore, the metal casing resists warping and cracking under temperature fluctuations, making it suitable for both indoor and outdoor applications.

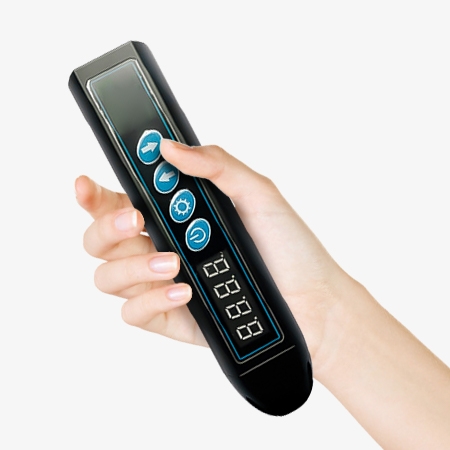

Easy to Carry
- Convenient Size and Lightweight Design. One of the most prominent advantages of a pen-type electromagnetic ultrasonic thickness gauge is its compact and lightweight construction. Shaped like a pen or marker, it can easily fit in a technician’s pocket or tool bag, enabling quick access whenever thickness measurements are needed.
- Time-Saving and Efficient. The portability of this EMAT thickness gauge significantly reduces the time required for setup and measurement. Users can quickly move from one test point to another, enabling faster data collection across large surfaces or multiple components.
Applications
Key application fields of SISCO pen-type electromagnetic ultrasonic thickness gauge include shipbuilding, aerospace, and automotive industries. The compact, pen-style design makes it convenient for on-site inspections and maintenance, particularly in confined spaces or at height. Additionally, the gauge is useful in quality control during manufacturing processes, helping ensure material integrity and compliance with safety standards.
Shipbuilding Industry
Automobile Manufacturing
Metal Processing
Aviation Industry
| Model | SISCO-UTG-CT1000 |
| Measurement Range | 1.0 mm~240.0 mm (measurement range depends on the material) |
| Resolution | 0.01mm |
| Probe | Room Temperature Probe; ≤ 150°C, 4MHz; mainly used to detect fine-grained materials (e.g., low-carbon steel, aluminum) |
| Error Range of Measurement | Thickness＜10mm, error±0.05mm; thickness＞10mm, error±（0.01+H/200）mm, H=thickness |
| Minimum Pipe Diameter (Curvature) | 8mm |
| Maximum Probe Tilt Angle | ±25° |
| Sound Wave Type | Shear wave |
| Sound Velocity Adjustment | 1000~9999m/s |
| Power Supply | Built-in Lithium battery, USB rechargeable |
| Operating Temperature | -10℃~50℃ |
| Storage Temperature | 0℃~40℃ |
| Receive Gain | ≤100dB |
| Dimension | 170*40*33mm (L*W*H) |
| Net Weight | About 200g |
Q1: What is pen-type electromagnetic ultrasonic thickness gauge?
A1: A pen-type electromagnetic ultrasonic thickness gauge is a compact, handheld device designed for non-contact measurement of material thickness. Its pen-like design allows for easy access to tight or hard-to-reach areas. This gauge is ideal for measuring corrosion, erosion, and wear in pipelines, tanks, and structural components.
Q2: How to maintain pen-type electromagnetic ultrasonic thickness gauge?
A2: To maintain a pen-type electromagnetic ultrasonic thickness meter, regularly clean the probe and device housing with a soft, dry cloth to prevent dust and debris buildup. Avoid exposing the gauge to excessive moisture, heat, or corrosive environments. Check battery levels and recharge as needed to ensure accurate operation. Periodically inspect the probe cable for signs of wear or damage. Store the device in a protective case when not in use to prevent accidental damage.
Q3: What materials can be measured using this electromagnetic ultrasonic thickness gauge?
A3: An electromagnetic ultrasonic thickness tester is ideal for measuring the thickness of conductive materials. It can accurately measure metals such as steel, aluminum, copper, and titanium, as well as their alloys.
Tips: What are the limitations of a pen-type electromagnetic ultrasonic thickness gauge?
A pen-type electromagnetic ultrasonic thickness gauge, while convenient and compact, has several limitations. It typically requires a clean, smooth surface for accurate measurements, as rough or corroded surfaces can reduce signal strength. EMAT thickness gauges are generally less effective on non-ferromagnetic or low-conductivity materials. The measurement range may be limited compared to larger, conventional ultrasonic gauges.
