    Phase Detector, Wireless, 10V~500kV, 260m

    Phase detector can measure phase in very low voltage lines and fully realize automatic phase detection from 10V to 500kV voltage, phase range 0°~360°, frequency range 45.0Hz~65.0Hz, phase distance up to 260m. Wireless phase tester uses a 3.5-inch true-color LCD screen, which can display phase, frequency, phase sequence and phase results on the same screen.
    SKU: SISCO-PD-152
    $756.66
    i h
    Free shipping
    Delivery date: 7-12 days
    Overview


    The phase tester is designed for high-voltage lines and high-voltage switch cabinets, and can also test phase, frequency, phase sequence, etc.  With a wireless transmission, phase distance up to 260 meters, accurate and convenient. sisco phase detector comes with phase detection from 10V to 500kV voltage,  0°~360° phase range and  45.0Hz~65.0Hz frequency range, widely used in the power industry, electronic manufacturing, industrial control and other industries.

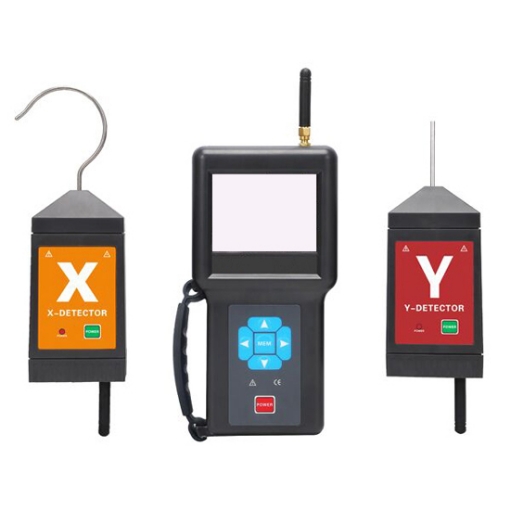

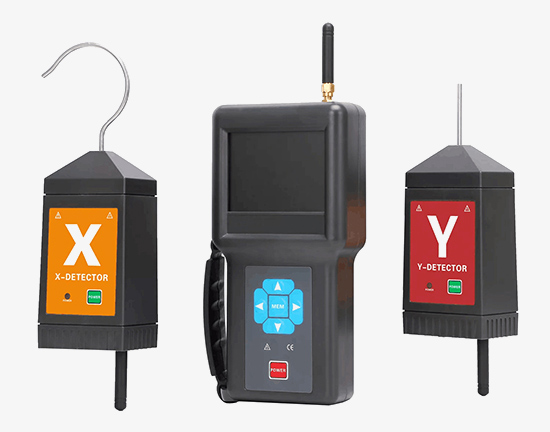

    Phase detector

    Phase detector, wireless, with 10V to 500kV voltage range, 0°~360° phase range, 45.0Hz~65.0Hz frequency range, phase distance up to 260m.

    • The phase detector is applied to electric power lines below 500KV, high voltage switchgear (metal clad withdraw switchgear, ring main unit, etc.) or substation phase detecting, phase test, phase sequence judgment and electrical inspection, etc.
    • Phase tester adopts wireless transmission technology, phase detecting distance of 200m, phase detecting accurately, and operation convenient.
    • Voice prompt: "X signal is normal, Y signal is normal, same phase, out phase".
    • Digital phase detector with a 3.5-inch LCD color screen can display the phase, frequency, phase sequence, and phase-detecting results on the same screen. The dynamic vector diagram indication is clear and obvious.
    • The phase sequence meter also has an electricity inspection function and can display the voltage class.
    • Data storage can store 200 groups of data.USB interface with data upload function, stored data can be uploaded to the computer, save and print.

    Details

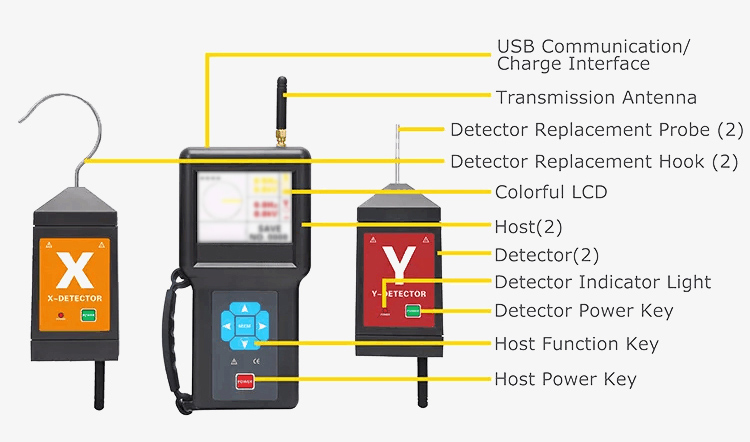

    Phase detector details

    Applications

    sisco phase detector can perform phase tests and phase sequence tests of power lines and substations, with phase verification, phase sequence measurement, and electrical inspection functions. Strong anti-interference performance and is suitable for various electromagnetic field interference occasions. Phase detector is widely used in the power industry, electronic manufacturing, industrial control and other industries.

    Phase tester applications

    Specs
    Model SISCO-PT-1500
    Power Supply

    Host: 3.7V 2600mAh,rechargeable lithium battery; Detector: 3.7V 600mAh, rechargeable lithium battery

    Phase Detection Method 1. Contact mode phase detecting: circuit line below 35kV
    2. Non-Contact mode phase detecting: when the line voltage exceeds 35kV, must adopt non-contact mode to testing, the probe gradually approaches the conductor to phase detecting
    Phase Detection Voltage AC 10V~500kV
    phase detection distance 260m
    Voice Prompt “X signal is normal, Y signal is normal, same phase, out phase”
    Phase Qualitative Same phase: -20°~ 20°; Out of phase: 100°~140° and 220°~ 260°
    Phase Range 0°~ 360°; Accuracy: ≤±10°; Resolution: 1°
    Frequency Range 45.0Hz~65.0Hz; Accuracy: ≤±2Hz;Resolution: 0.1Hz
    Electricity Test Indication “du--du--du” buzzing sound
    Voltage Display Display voltage class
    Transmitting Frequency 433MHz、315MHz
    Phase Indication Vector diagram and digital display at the same time
    Satellite Timing Service Accuracy <20nS
    Search Satellite Indication When searching satellite, dynamic display“----” symbol
    Data Storage 200 groups(Power down or replace the battery will not lose data)
    Automatic Shutdown 15 minutes after boot up, the meter shuts down automatically without any operation
    Rated Current Detector: 30mA max;Host:150mA max
    LCD Size 3.5 inch color screen; Display area:71mm×53mm
    Instrument Weight Host:887g (include battery); Package and insulation: about 7.84kg (include insulation rod and accessories)
    Instrument Dimension Host 195mm×100mm×45mm; Detector: 130mm×65mm×45mm
    Insulation Rod Length Max Diameter: Φ45mm; Length: contraction state 1000mm; stretched state: 4500mm
    Insulation Test The insulation rod stretched to both ends: AC 220kV/rms; host, detector AC3700V/rms (between exposed metal and plastic shell)

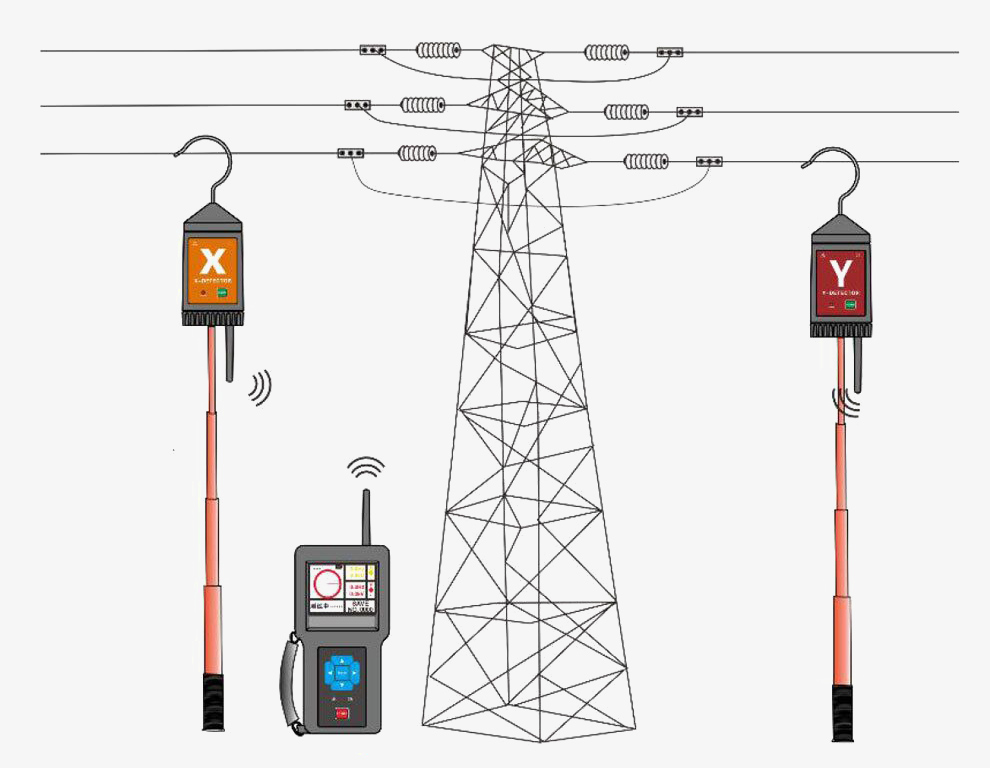

    Diagram

    Phase detector diagram

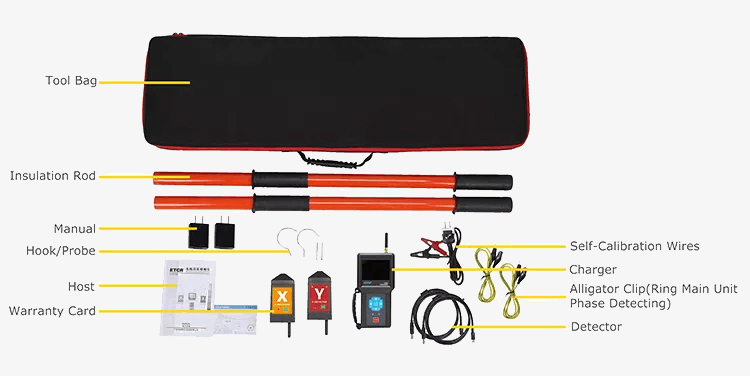

    Package List

    Phase detector package list

    FAQs

    Q1: How does a phase tester work?
    A1: When the phase tester is working, the digital signal is sent to the receiving end through the wireless sending module, thereby reducing the interference and error, and greatly improving the working performance of the phase tester. When the phase detector is in use, first hang the transmitter on the conductor of the power grid under test, and then touch the receiving device to another grid conductor to be tested.

    Q2: Functions of phase detectors
    A2: sisco phase detectors can perform phase sequence detection (positive phase, anti-phase, default phase), live line inspection, simple electrical inspection, fire line identification, default phase judgment, broken line location search, DC line breakpoint detection, and line maintenance.

    Q3: Why do you need a phase tester?
    A3: If AC power supplies with different phases or phase sequences are paralleled or closed, a large current will be generated, which will cause damage to the generator or electrical equipment, so a phase detector is required for measurement.

    Phase verification refers to the use of a tester or other means to check whether the phases and phase sequences of two power sources or loops are the same in the electrical operation of the power system, which means the measurement of the phase difference in the actual operation. Newly built, rebuilt and expanded substations and transmission lines, as well as after the line is overhauled and before power is sent to users, must conduct three-phase circuit phase verification tests. Therefore, a phase tester is required.

    Tips: How to choose a phase detector?

    1. First of all, pay attention to the voltage level of the phase detector. It has 10KV, 35KV, 110KV, 220KV, 500KV, and it should be purchased according to the on-site voltage.
    2. Because it is an online test, you must pay attention to the withstand voltage of the insulating rod of the phase detector, and the withstand voltage level must be higher than the line voltage.
    3. Before the test, it is necessary to conduct a self-inspection on the phase detector. If there is no problem in the self-inspection, it can be tested on site.
