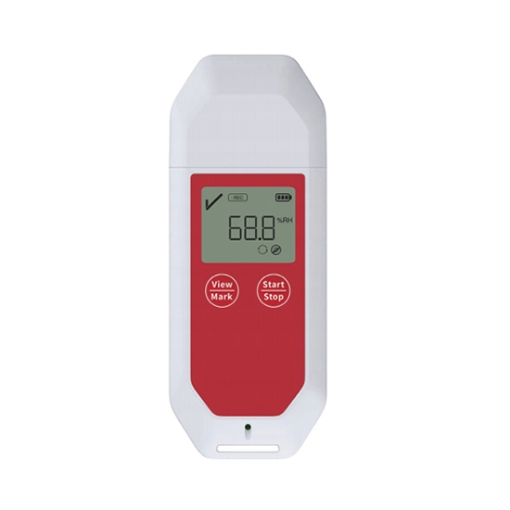

Weighing only 35g, this temperature and humidity data logger is lightweight and portable, making it suitable for a wide range of applications, including vegetable greenhouses, farms, warehouses, indoor spaces, and nurseries.
Dual-Core Excellence in Environmental Monitoring
- This temperature and humidity logger operates stably across a wide temperature and humidity range, accurately capturing even subtle environmental fluctuations and ensuring reliable data.
- This USB temperature and humidity data logger allows for six configurable high and low alarm levels. It often features an LCD display with an intuitive user interface, supports real-time data viewing and alarm status display, and offers comprehensive data storage and analysis capabilities, providing multi-dimensional, accurate warnings to meet the needs of complex environments.
One-Click 4-Class Presets & Instant PDF Reporting

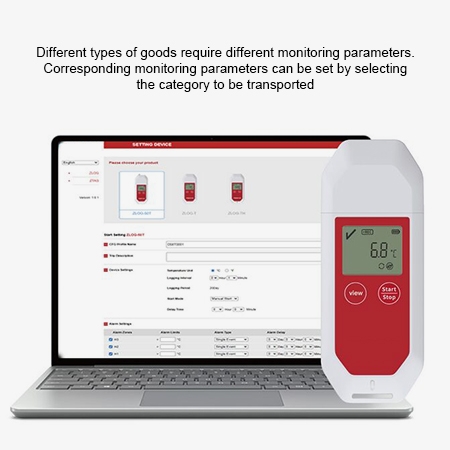

- This temperature and humidity logger allows for one-click configuration of monitoring data. Based on the monitoring parameters required by different types of cargo, it can categorize the temperature and humidity requirements of transported fruits and vegetables into four categories: low temperature, high moisture; medium low temperature, high humidity; medium low temperature, medium moisture; and medium temperature, medium humidity.

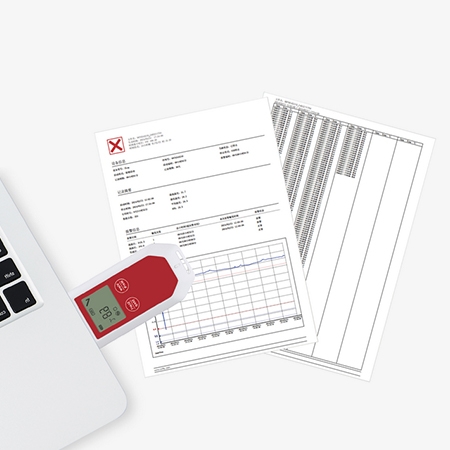

- The temp humidity data logger can store 3300 sets of data and uses a USB 2.0 interface. When plugged into a computer, it can automatically generate a standard PDF report data file without installing any plug-ins, making data acquisition and analysis more efficient and convenient.
Applications
Suitable for use in pharmacy storage, cold chain transportation, agricultural cultivation, and equipment room monitoring, it records temperature changes in real time to ensure environmental stability and safeguard the safety of medicines, food, crops, and equipment. Its precise data recording and alarm functions provide reliable environmental monitoring support for various industries.
Agricultural Cultivation
Data Center Monitoring
Pharmacy Storage
Cold Chain Transportation
Â
| Model | SISCO-TDL-ZLOGTH |
| LED Indicator | Green (Recording, OK), Red (Alarm) |
| Battery Life | Up to 2 years (1 year storage/ 1 year useful life) @25℃, 5 minutes logging interval |
| Period&Cycle | 7/30/60/90/120 days |
| Operation Temperature | -30℃~+70℃ (0-100%RH) |
| Measurement Accuracy | ±0.5°C (±3%RH@20-80%RH, ±4%RH@other） |
| Resolution | 0.1°C (0.1%RH) |
| Alarm Limit | Up to 6 individually programmable alarm limits |
| Memory Space | Up to 33,000 points |
| Logging Interval | 1 minute ~24 hours optional, Default 5 minutes |
| Start Delay | 0 minute ~24 hours optional, Default 10 minutes |
| Start Mode | Manual/ Auto start |
| Report Format | PDF/ CSV/ PDF&CSV (optional) |
| IP Grade | IP65 |
| Battery Type | 3.0V CR2450 |
| Connection | USB 2.0 |
| Dimensions | 102.5mm×40mm×13.5mm |
| Weight | 35.6g |
| Certification | CE，EN12830:2018，RoHS |
Q1: What is a temperature data logger?
A1: A temperature data logger is one of the types of temperature measuring instruments. With the popularization and wide application of computers, temperature data recorders have been produced. And because of its more accurate data recording, more convenient data storage, and more convenient data analysis functions, it has been widely used. Paperless temp data logger with USB interface also greatly facilitates the downloading and saving of data.
Q2: What are the functions of temperature data loggers?
A2: Measurement: Built-in temperature sensor or connectable external temperature sensor to measure temperature.
Record Storage: Automatically record and store measured temperature values.
Data transfer: transfer or download the saved measurement data to the computer through the USB interface.
Programming: such as setting sampling rate, data transmission method and interval, selecting temperature sensor type, alarm setting, etc.
Analysis: Perform the necessary analysis on the temperature data through the built-in software.
Q3: What are the advantages of temperature data loggers?
A3: The portable temperature and humidity data logger can regularly collect and record temperature and humidity parameters according to the configured time interval, and can transmit the collected and recorded data to the computer for processing and drawing charts. It is widely used in environmental protection, health and epidemic prevention, warehousing and transportation, museums, greenhouses and other fields. This recorder is powered by high precision sensors and high-energy lithium batteries. It is designed with low-power technology and requires no external power supply. It is small in size, low in power consumption, and high in precision. It can work continuously for more than three years.
Tips: How can Correctly Use a Temperature and Humidity Recorder to Better Control Errors?
To properly use a temperature and humidity recorder, hang it in a central location, away from heat sources and walls. Calibrate it before use and every 6-12 months. Wear gloves when handling it and avoid touching the probe. Allow it to sit for 30 minutes before recording. Clean the probe after exposure to high humidity. Store it in a dry place when not in use for extended periods. Keep usage records for traceability.
