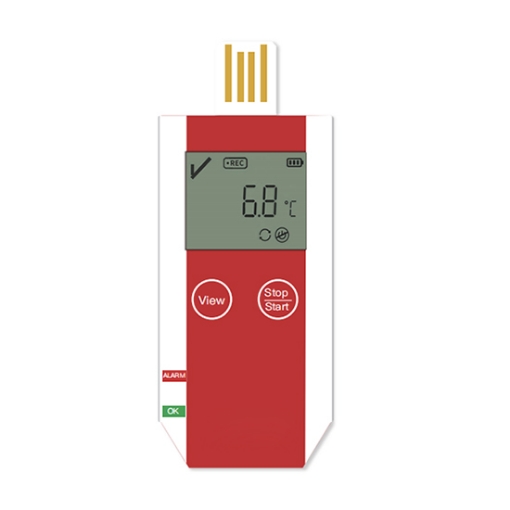

The fridge temp logger is compact and easy to install, making it suitable for a variety of cold chain applications in warehousing and logistics, including refrigerated containers, refrigerated trucks, refrigerated bags, and cold storage, ensuring accurate and reliable temperature control throughout the entire process.
Note: This is a disposable temperature data logger. Once you start recording and exporting data, you cannot start recording again. Please wait until you are ready to start and stop recording.
Extremely Long Battery Life and Massive Storage
- The built-in high-performance battery provides up to 24 hours of continuous operation, enabling uninterrupted monitoring around the clock. Under normal storage, the battery lasts for one year, ensuring the device is always ready for long-term monitoring needs.
- The refrigerator data logger can store up to 3,300 temperature data records, covering the storage and transportation cycles of most fresh food products. Comprehensive data recording reduces the need for frequent exporting and improves ease of use.
One-touch Start and Stop, Ultra-fast Export
- This temperature & humidity datalogger automatically monitors and records temperature changes during storage and transportation of fresh food (especially seafood) with simple operation, ensuring food safety and quality.

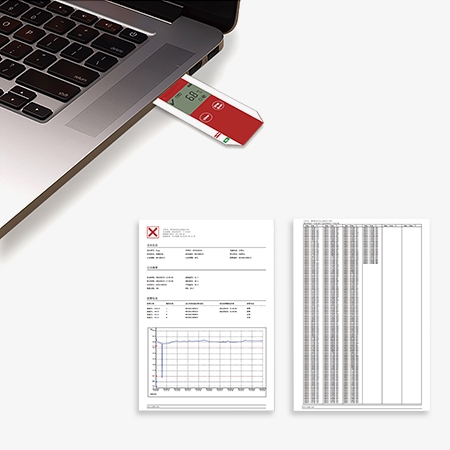

- The data logger's temperature uses a USB 2.0 interface, plug it into a computer to automatically generate standard PDF report data files, eliminating the need for plugins. This makes data acquisition and analysis more efficient and convenient.
Applications
Suitable for use in pharmacy storage, cold chain transportation, agricultural cultivation, and equipment room monitoring, it records temperature changes in real time to ensure environmental stability and safeguard the safety of medicines, food, crops, and equipment. Its precise data recording and alarm functions provide reliable environmental monitoring support for various industries.
Agricultural Cultivation
Data Center Monitoring
Pharmacy Storage
Cold Chain Transportation
Â
| Model | SISCO-TDL-ZTAGDU |
| LED Indicator | Green (Recording, OK), Red (Alarm) |
| Battery Life | Up to 2 years (year storage/ 1 year useful life) @25℃, 5 minutes logging interval |
| Operation Temperature | -30℃~70℃ |
| Measurement Accuracy | ±0.5°C@-10~40℃, ±0.8℃@-30~-10℃&40~70℃ |
| Resolution | 0.1°C |
| Alarm Limit | p to 2 individually programmable alarm limits (Alarm threshold and over-temperature trigger time can be customized according to customer needs) |
| Logging Interval | 1 minute~24 hours optional (Default 5 minutes) |
| Memory Space | Up to 33,000 points |
| Recording Cycle | 7-90 days |
| Start Delay | 0 minute -24 hours optional (Default 10 minutes) |
| Start Model | Manual start |
| Report Format | PDF/ CSV/ PDF&CSV (Optional, configured before leaving the factory) |

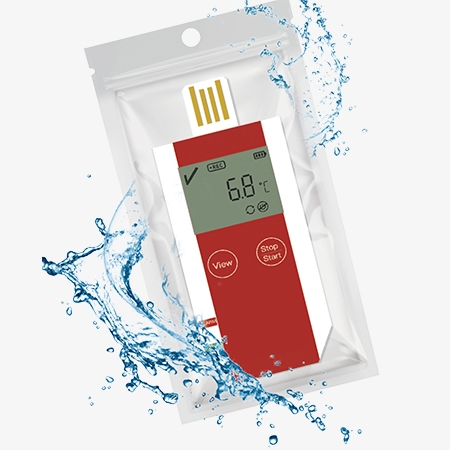

| IP Grade | IP67 |
| Battery Type | 3.0V CR2032 |
| Connection | USB 2.0 |
| Weight | 25g |
| Dimensions | 85mm×34mm×7.5mm (product), 110mm×60mm (include bag) |
| Certification | CE, EN12830:2018, RTCA/ DO-160G, RoHS |
Â

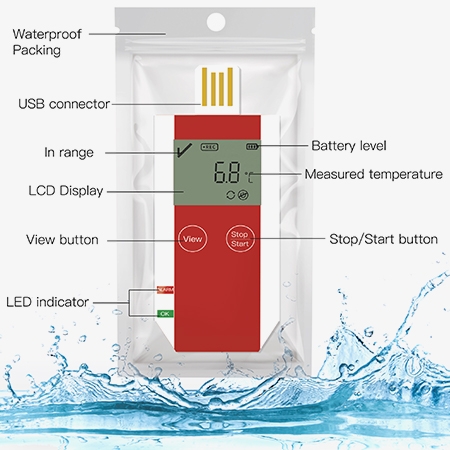

Structure diagram
Q1: What is a temperature data logger?
A1: A temperature data logger is one of the types of temperature measuring instruments. With the popularization and wide application of computers, temperature data recorders have been produced. And because of its more accurate data recording, more convenient data storage, and more convenient data analysis functions, it has been widely used. Paperless temp data logger with USB interface also greatly facilitates the downloading and saving of data.
Q2: What are the functions of temperature data loggers?
A2: Measurement: Built-in temperature sensor or connectable external temperature sensor to measure temperature.
Record Storage: Automatically record and store measured temperature values.
Data transfer: transfer or download the saved measurement data to the computer through the USB interface.
Programming: such as setting sampling rate, data transmission method and interval, selecting temperature sensor type, alarm setting, etc.
Analysis: Perform the necessary analysis on the temperature data through the built-in software.
Q3: What are the advantages of temperature data loggers?
A3: The portable temperature and humidity data logger can regularly collect and record temperature and humidity parameters according to the configured time interval, and can transmit the collected and recorded data to the computer for processing and drawing charts. It is widely used in environmental protection, health and epidemic prevention, warehousing and transportation, museums, greenhouses and other fields. This recorder is powered by high precision sensors and high-energy lithium batteries. It is designed with low-power technology and requires no external power supply. It is small in size, low in power consumption, and high in precision. It can work continuously for more than three years.
Tips: How Should Disposable Temperature Data Loggers be Stored?
It is recommended to store them in a dry, well-ventilated environment, away from direct sunlight and rain, and within a temperature range of -10°C to 40°C. When not in use, no external power supply is required; the built-in battery provides a stable storage life of one year. Keep away from strong magnetic fields and severe vibration to ensure secure data storage.
