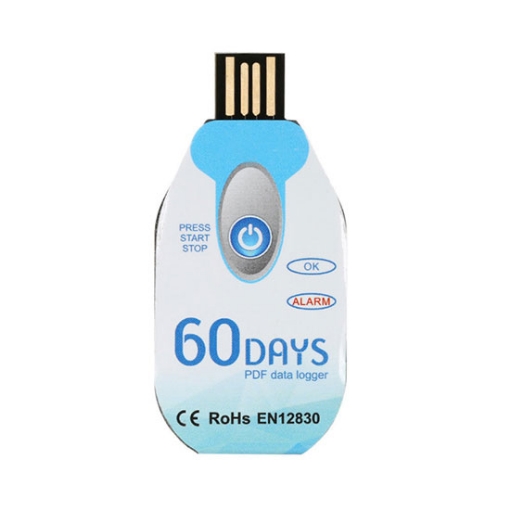

    Disposable Temperature Data Logger, USB, Single Use

    Disposable temperature data logger is used for shipping, vaccine storage and cold chain. temperature recording range -30℃ ~ +60℃ (22℉ or 140℉), 30/60/90 days recording duration available. This single use temp data logger can be inserted to computer’s USB port to get PDF report directly.
    SKU: SISCO-TDL-U02
    *
    $24.43
    This product has a minimum quantity of 5
    i h
    Free shipping
    Delivery date: 7-12 days
    Overview


    Disposable temperature data logger has USB interface to get PDF report directly. It has LED light indicator for different status, easy operation by pressing button on or off.

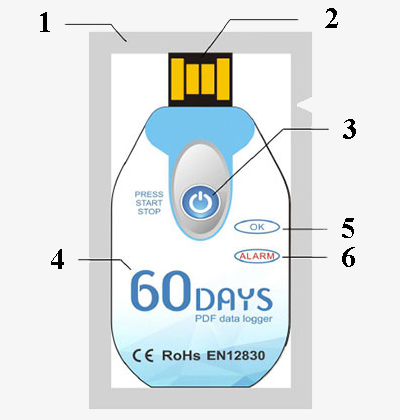

    Detail of disposable USB single use temperature data logger

    Disposable USB temperature data logger details

    1. Waterproof packaging
    2. USB interface
    3. Start/ Stop button
    4. 30 days/ 60 days/ 90 days could be choosed
    5. "OK" light
    6. "ALARM light

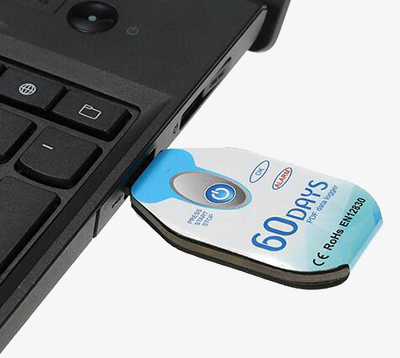

    USB plug and play

    USB plug and play

    The single use disposable temperature data logger has a plug-and-play USB port interface, easy to connect with a computer to get PDF report directly, allowing faster access to the data collected during any cold chain management process.

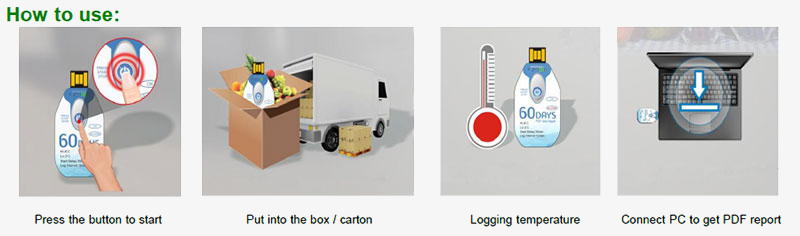

    How to Use

    How to use the disposable PDF USB temperature data logger

    Applications

    Disposable temperature data logger is mainly used for temperature mapping during storage, shipping and transportation of vaccines, food, medicine, chemicals and other products.

    Applcations of disposable USB single use temperature data logger

    Specs
    Model SISCO-TDL-U02
    Recording Option Single Use
    Recording Duration 30 Days 60 Days 90 Days
    Recording Interval 5 Minutes 10 Minutes 15 Minutes
    Temperature Range -30℃ ~ +60℃ (22℉ or 140℉)
    Temperature Accuracy ±0.5℃ (-20℃ ~ +40℃), ±1.0℃ (Other Range)
    Temperature Resolution 0.1℃
    Data Storage Capacity 10,000
    Shelf Life / Battery 2 Years / CR2032 Button Cell
    Temperature Alarm Range <2℃ or >8℃ (<35.6℉ or >46.4℉)
    Alarm Type The red LED will flash every 10s if the temperature has been out of range
    Start Delay 30 mins
    Communication Interface USB 2.0
    Report Generation Automatic PDF Report Generation
    Waterproof Level IP67 (with Seal-Bag)
    Software No need install any software
    Dimension 69mm * 33mm * 5mm
    Net Weight 10g

    Operation Instruction

    Status Action LED Indication
    Inactivated Short press the button once to judge if the logger is inactivated. ALARM and OK lights flash once at the same time, means the logger is inactivated.
    Activated The LED will flash every 10s automatically. If "OK" light flashes, the logged temperature has never been out of range. If "ALARM" light flashes, the logged temperature data was out of range before.
    Stopped No press the button Both ALARM and OK lights won't flash
    Short press the button OK light flash (normal temperature)
    ALARM light flash (temperature data was out of range)

    Note:

    1. Make sure the temperature data logger has been started before place it into the environment to use.
    2. Don't place the temp data logger directly into the corrosive liquid.
    3. Please do not operate the temp data logger under the bright light, because under the bright light, LED flashing will be difficult to be observed.
    4. Please no direct heating or micro-wave heating or charge the battery.
    5. Please recycle or dispose the temp data logger in accordance with local laws and regulations.

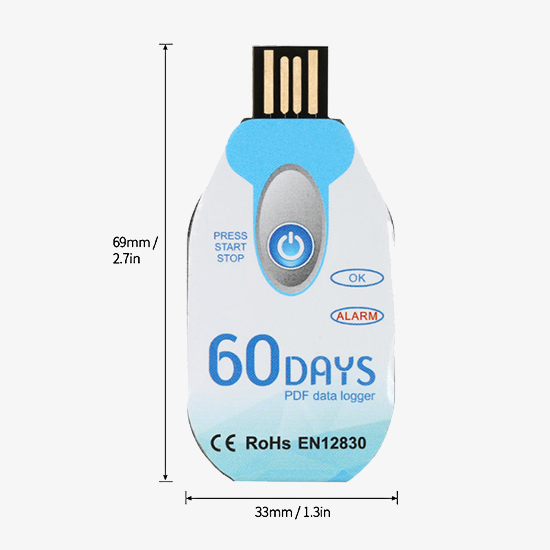

    Dimension

    Dimensions of disposable USB temperature data logger

    FAQs

    Q1: What is a temperature data logger?
    A1: A temperature data logger is one of the types of temperature measuring instruments. With the popularization and wide application of computers, temperature data recorders have been produced. And because of its more accurate data recording, more convenient data storage, and more convenient data analysis functions, it has been widely used. Paperless temp data logger with USB interface also greatly facilitates the downloading and saving of data.

    Q2: What are the functions of temperature data loggers?
    A2: Measurement: Built-in temperature sensor or connectable external temperature sensor to measure temperature.
    Record Storage: Automatically record and store measured temperature values.
    Data transfer: transfer or download the saved measurement data to the computer through the USB interface.
    Programming: such as setting sampling rate, data transmission method and interval, selecting temperature sensor type, alarm setting, etc.
    Analysis: Perform the necessary analysis on the temperature data through the built-in software.

    Q3: What are the advantages of temperature data loggers?
    A3: The portable temperature and humidity data logger can regularly collect and record temperature and humidity parameters according to the configured time interval, and can transmit the collected and recorded data to the computer for processing and drawing charts. It is widely used in environmental protection, health and epidemic prevention, warehousing and transportation, museums, greenhouses and other fields. This recorder is powered by high precision sensors and high-energy lithium batteries. It is designed with low-power technology and requires no external power supply. It is small in size, low in power consumption, and high in precision. It can work continuously for more than three years.

    Tips: Temperature data logger application in agriculture

    In the artificial climate and plastic greenhouse environment, the change of temperature and humidity directly affects the growth of crops, especially cash crops at the seedling stage. Using a temperature and humidity data logger, it will automatically record the temperature and humidity values, and output the recorded values in the form of graphic and text tables through the PC intelligent analysis software, which is convenient for administrators to analyze and manage. And with automatic alarm function, when the temperature and humidity exceed the set high and low limits, the alarm will automatically respond, and timely remind the staff to adjust the temperature and humidity in the greenhouse or nursery room. Use the temperature data logger to simplify your work, save costs, and not be disturbed by too many human factors, and truly reflect the recording process.

    Warranty

    Thank you for buying industrial test and measurement equipment on sisco.com, all products sold by sisco and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    sisco is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a sisco store or a sisco authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than sisco approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by sisco.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a sisco authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
