100 MHz PC Oscilloscope, Dual Channel, 1 GSa/s

sisco 2-channel PC-based oscilloscope has optional USB2.0 or USB 2.0 with LAN network port, with 100 MHz bandwidth, 1 GSa/s sampling rate, which is an instrument used to measure the shape of alternating current or pulse current waves. The 100 MHz PC oscilloscope has high technical performance, strong scalability, less development time, and excellent integration four advantages.
SKU: SISCO-PCO-100
*
$750.95
i h
Free shipping
Delivery date: 7-12 days
Overview


100 MHz PC oscilloscope with 1 GSa/s sampling rate, with multiple trigger modes: edge, video, ramp, pulse width, alternate. The digital oscilloscope has the first USB isolation function, effectively protecting the computer and reducing signal interference.

Detail of PC oscilloscope

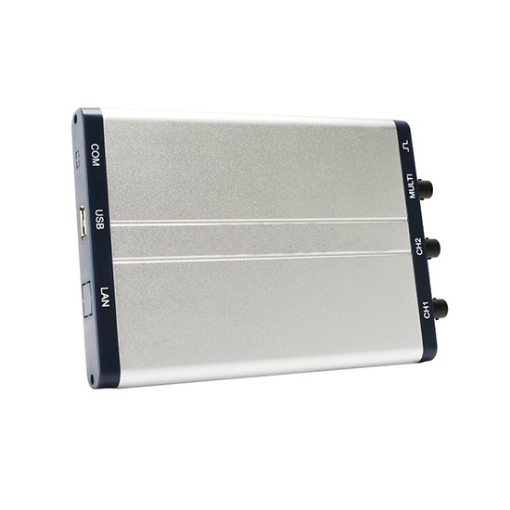

PC oscilloscope interface details

  • USB interface
  • Channel 1 signal input
  • Channel 2 signal input
  • External trigger input, trigger output or pass/fail output
  • Probe compensation
  • Lan network port configuration


Detail of PC oscilloscope

Support SCPI

  • Support SCPI secondary development
  • Shock isolation function to protect the safety of computers and equipment during transient electric shocks.



Dimension Unit (mm)

Dimension of PC oscilloscope

Application

The main application of a SISCO oscilloscope is used to display the waveforms of signals. It can be used in many fields such as automotive test, signal analysis, electrical, transducer test and measurement, electrical equipment design, medical equipment testing field, etc.

Application of laser distance meter

Specs



Model SISCO-VDC-3102 SISCO-VDC-3102L
Communication Interface USB2.0

USB 2.0 (with LAN network port)

Bandwidth 100 MHz
Channel 2 Channel+ Multi
Sample Rate 1 GSa/s
Max. Input Voltage 40V(DC + AC peak)
Horizontal Scale (s/div) 2ns/div - 100s/div, step by 1 - 2 - 5
Record Length 10M
Input Impedance 1MΩ ± 2%, in parallel with 10pF ± 5pF
Vertical Sensitivity 5mV/div - 5V/div
Vertical Resolution 8 bits
Trigger Type Edge, Pulse, Video, Slope, and Alternate
Automatic Measurement Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot,
Pre-shoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
Waveform Math +, -, *, /, FFT
Power Supply ≤6.5W
Dimension (W * H * D) 190* 18* 120mm
Weight 0.3 kg


Accessories

  • CD ROM
  • USB cable
  • Probe
  • Probe Adjust
  • Silicon Gel Case
  • Quick Guide
FAQs

Q1: Can an oscilloscope measure DC voltage?
A1: DC voltage can be measured using either an oscilloscope or a digital multimeter. Each piece of testing equipment has its advantages and disadvantages.

Q2: What is the maximum frequency for the oscilloscope?
A2: System bandwidth determines an oscilloscope's fundamental ability to measure an analog signal - the maximum frequency range that it can accurately measure. Entry-level scopes will often have a maximum bandwidth of 100 MHz. They can accurately (within 2%) show the amplitudes of sine-wave signals up to 20 MHz.

Q3: What is the record length for an oscilloscope?
A3: The record length, measured in points or samples, divided by the sample rate (in Samples/second) specifies the total time (in seconds) that is acquired. Example: With a record length of 1 M points and a sample rate of 250 MSa/sec, the oscilloscope will capture a signal of 4 msec in length.

Tips: The composition of PC oscilloscope

The components of the virtual oscilloscope mainly include signal acquisition and control, data analysis and processing, and display of measurement results.

  • Signal acquisition and control is a hardware platform composed of computer and instrument hardware to realize the acquisition, measurement, conversion and control of signals;
  • Data analysis and processing means that the virtual oscilloscope makes full use of the storage and operation functions of the computer, and realizes the analysis and processing of the input data signal through software;
  • The display of the measurement results of the virtual oscilloscope is to use the resources of the computer, such as display, memory, etc., to express and output the measurement results in various ways, and the computer can also be used for data transmission and utilization.
