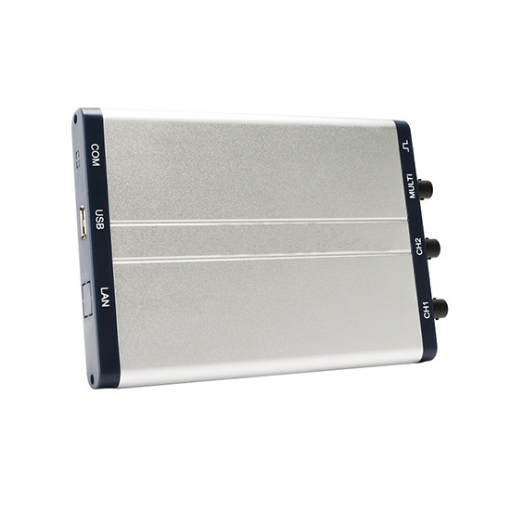

PC oscilloscope with 100 MHz bandwidth, 1 GSa/s sampling rate, 8 bits vertical resolution 40V Max input voltage. The operation interface is simple, easy to operate with high-cost performance, good mechanical design with a small size which is easy for carrying.

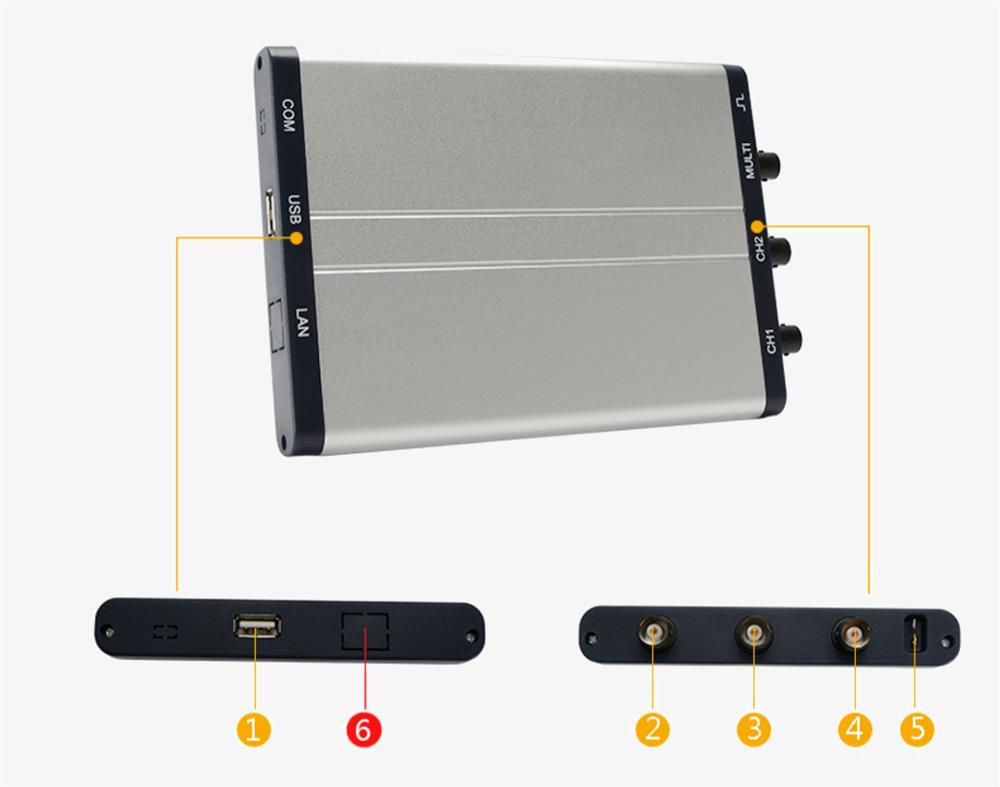

PC oscilloscope interface details
- USB interface
- Channel 1 signal input
- Channel 2 signal input
- External trigger input, trigger output or pass/fail output
- Probe compensation
- Lan network port configuration

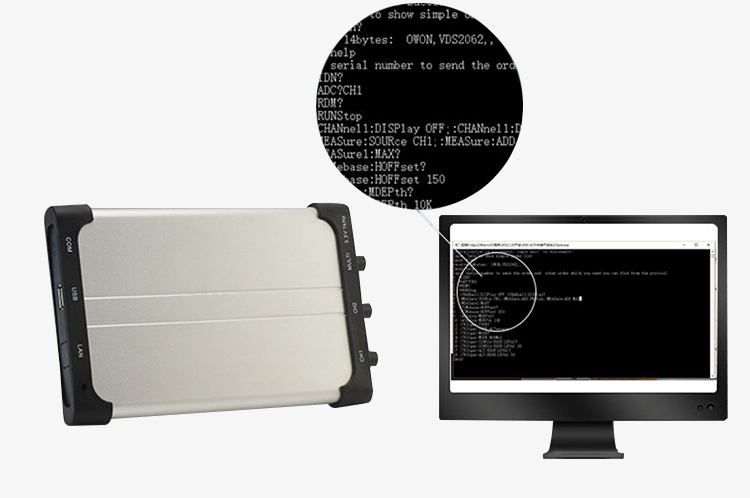

Support SCPI
- Support SCPI secondary development
- Shock isolation function to protect the safety of computers and equipment during transient electric shocks.

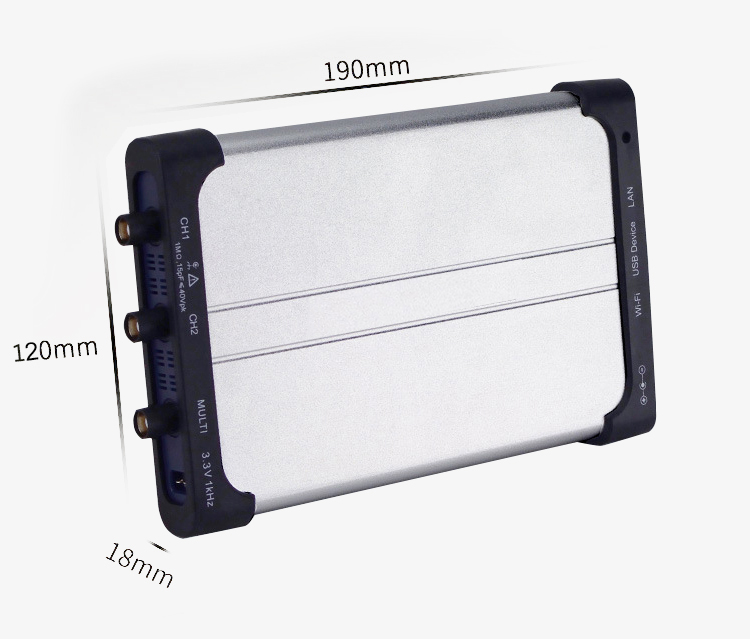

Dimension Unit (mm)
Application
The main application of a SISCO oscilloscope is used to display the waveforms of signals. It can be used in many fields such as automotive test, signal analysis, electrical, transducer test and measurement, electrical equipment design, medical equipment testing field, etc.
Â
| Model | SISCO-VDC-3104 | SISCO-VDC-3104L |
| Communication Interface | USB2.0 |
USB 2.0 (with LAN network port) |
| Bandwidth | 100 MHz | |
| Channel | 4 Channel+ Multi | |
| Sample Rate | 1 GSa/s | |
| Max. Input Voltage | 40V(DC + AC peak) | |
| Horizontal Scale (s/div) | 2ns/div - 100s/div, step by 1 - 2 - 5 | |
| Record Length | 5M | |
| Input Impedance | 1MΩ ± 2%, in parallel with 10pF ± 5pF | |
| Vertical Sensitivity | 5mV/div - 5V/div | |
| Vertical Resolution | 8 bits | |
| Trigger Type | Edge, Pulse, Video, Slope, and Alternate | |
| Automatic Measurement | Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Pre-shoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B |
|
| Waveform Math | +, -, *, /, FFT | |
| Power Supply | ≤6.5W | |
| Dimension (W * H * D) | 190* 18* 120mm | |
| Weight | 0.3 kg | |
Accessories
- CD ROM
- USB cable
- Probe
- Probe Adjust
- Silicon Gel Case
- Quick Guide
Q1: Can an oscilloscope measure DC voltage?
A1: DC voltage can be measured using either an oscilloscope or a digital multimeter. Each piece of testing equipment has its advantages and disadvantages.
Q2: What is the maximum frequency for the oscilloscope?
A2: System bandwidth determines an oscilloscope's fundamental ability to measure an analog signal - the maximum frequency range that it can accurately measure. Entry-level scopes will often have a maximum bandwidth of 100 MHz. They can accurately (within 2%) show the amplitudes of sine-wave signals up to 20 MHz.
Q3: What is the record length for an oscilloscope?
A3: The record length, measured in points or samples, divided by the sample rate (in Samples/second) specifies the total time (in seconds) that is acquired. Example: With a record length of 1 M points and a sample rate of 250 MSa/sec, the oscilloscope will capture a signal of 4 msec in length.
Tips: Features of PC oscilloscope
- The widely used USB interface is adopted to make the interface between the virtual instrument and the computer more convenient and the communication speed is higher;
- Use a high-speed analog-to-digital conversion chip for high-speed sampling;
- Use high-performance single-chip microcomputer for control, use high-speed large-capacity memory to save sampling data in real-time, and improve the performance of the instrument;
- Use the Labview language to design the host computer application program, which can realize waveform display, as well as data analysis and processing.
