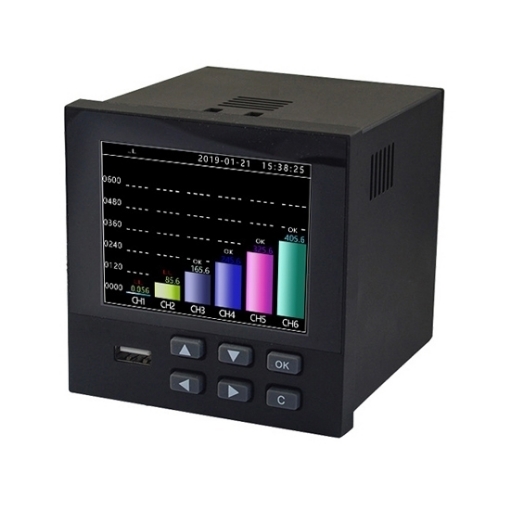

12 Channel Thermocouple Data Logger

Thermocouple data logger can measure temperature 0~50℃ and humidity 10~85%RH. Temperature data logger has high-brightness LCD display which can show real time data, 3 channel, 6 channel and 12 channel available.
SKU: SISCO-TDL-5100
*
$718.79
i h
Free shipping
Delivery date: 7-12 days
Overview


sisco 3/6/12 channel thermocouple data logger can intelligently match various sensors, and support various signal inputs such as pressure, temperature, flow, level, and electricity. This multi channel temperature data recorder is made of high-quality matte material shell, simple structure and durable.

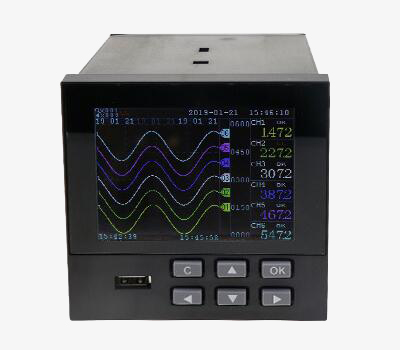

12 channel thermocouple data logger with display

3.5 inch LED display

The thermocouple data logger has a 3.5 inch TFT true color display with a resolution of 320*240, high-definition LED backlight, and 180° multi-directional data observation.

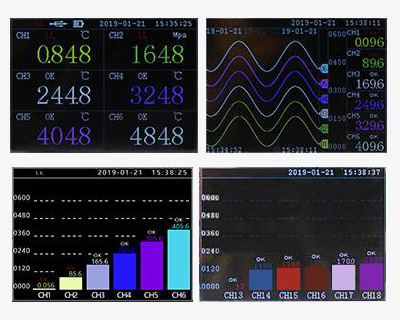

Thermocouple data logger with multiple display methods

Various display modes

The temperature data recorder can switch display modes such as numerical value, column graph, curve graph, bar graph, etc. with one click to meet the diverse needs of users.

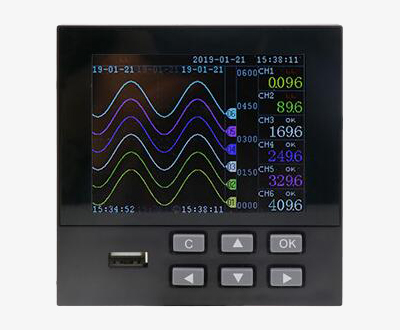

sisco 12 channel thermocouple data logger

3/ 6/ 12 channel available

The thermocouple data logger has 3/ 6/ 12 channel multi-function signal inputs, which can intelligently match various sensors, and support various signal inputs such as pressure, temperature, flow, level, and electricity.

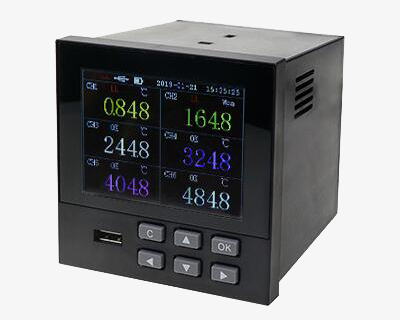

sisco 3/6/12 channel thermocouple data logger

Power-down data protection

All data are stored in Flash memory to ensure that all historical data and configuration parameters will not be lost due to power failure, and the lithium battery will supply power in real time after power failure.

Details

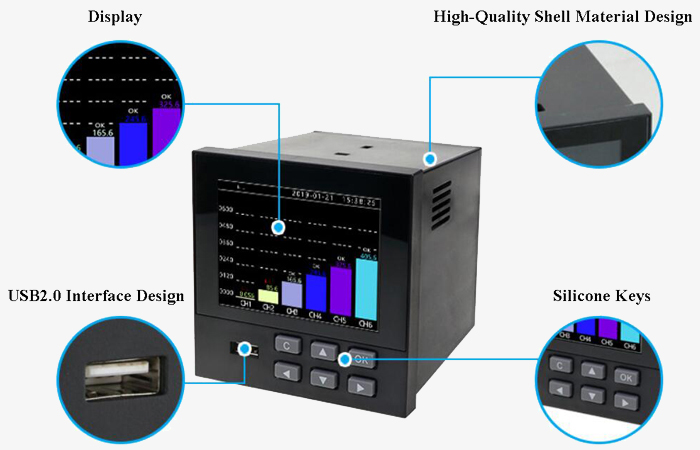

Details of 12 channel temperature data logger

Wiring

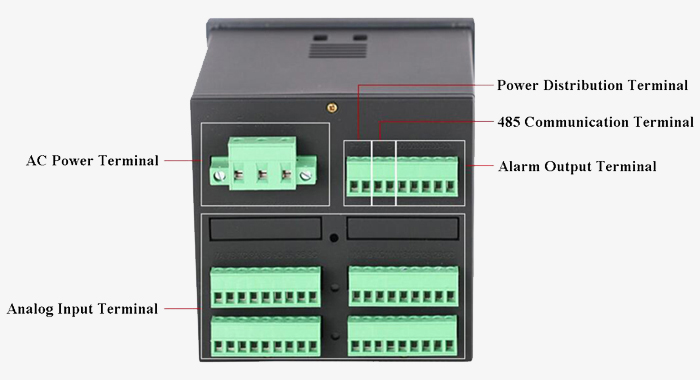

Wiring of 12 channel temperature data logger

Applications

sisco 3/ 6/ 12 channel thermocouple data logger meets the needs of different industries and working conditions, such as unattended data recording, experimental data testing, daily data measurement recording, etc.

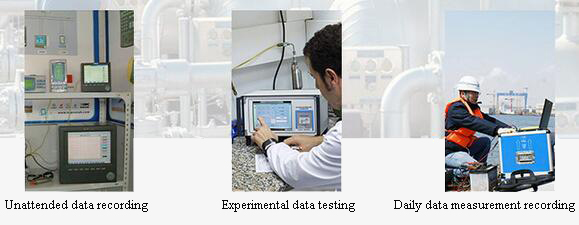

12 channel thermocouple data logger application

Specs
Model SISCO-BRW500-5100
Channel (Optional) 3 Channel, 6 Channel, 12 Channel
External Power Supply DC24V, 150mA
Communication Method 1 Channel RS485 Communication Interface, MODBUS Communication Protocol
Analog Input Select Input Signal by Parameter Setting
Thermocouple B/E/J/K/S/T/R/N
Thermal Resistance Pt100/Cu50
Voltage 1~5V
Current 4~20mA
Power Supply 176-264V AC 47~63Hz
Maximum Power 20VA
Operating Environment Temperature: 0~50℃, Humidity: 10~85%RH, No Condensation
Dimensions 96x96x100mm
Hole Size 92x92mm
Alarm Output Up to 4 relay outputs, 250V AC/ 2A, resistive load, all relays are normally open contacts.
Power-Off Protection All data are stored in Flash memory to ensure that all history, data and configuration parameters will not be lost due to power-off. After power-off, the real-time clock is powered by lithium battery.

Note: This thermocouple data logger does not come with software. It can only store the data in the U disk. And then you can insert the U disk on the computer to export the data in Excel format.

FAQs

Q1: What is a temperature data logger?
A1: A temperature data logger is one of the types of temperature measuring instruments. With the popularization and wide application of computers, temperature data recorders have been produced. And because of its more accurate data recording, more convenient data storage, and more convenient data analysis functions, it has been widely used. Paperless temp data logger with USB interface also greatly facilitates the downloading and saving of data.

Q2: What are the functions of temperature data loggers?
A2: Measurement: Built-in temperature sensor or connectable external temperature sensor to measure temperature.
Record Storage: Automatically record and store measured temperature values.
Data transfer: transfer or download the saved measurement data to the computer through the USB interface.
Programming: such as setting sampling rate, data transmission method and interval, selecting temperature sensor type, alarm setting, etc.
Analysis: Perform the necessary analysis on the temperature data through the built-in software.

Q3: What are the advantages of temperature data loggers?
A3: The portable temperature and humidity data logger can regularly collect and record temperature and humidity parameters according to the configured time interval, and can transmit the collected and recorded data to the computer for processing and drawing charts. It is widely used in environmental protection, health and epidemic prevention, warehousing and transportation, museums, greenhouses and other fields. This recorder is powered by high precision sensors and high-energy lithium batteries. It is designed with low-power technology and requires no external power supply. It is small in size, low in power consumption, and high in precision. It can work continuously for more than three years.

Tips: What are the functions of the multi-channel thermocouple data logger?

The multi-channel thermocouple data logger is designed and manufactured according to relevant standards, and is suitable for the detection of multi-point temperature places by manufacturers and quality supervision departments in the industries of home appliances, electrical heating appliances, thermostats, transformers, ovens, thermal protectors, etc. This instrument adopts a new generation of color screen paperless recorder, multi-channel universal input, can input standard current, standard voltage, frequency, millivolt, thermocouple, thermal resistance and other signals. With sensor isolation power distribution output, relay alarm output, transmission output, flow accumulation, temperature and pressure compensation, historical data dump, printing and remote communication functions.
