    6 Phase Relay Tester, Microcomputer Control

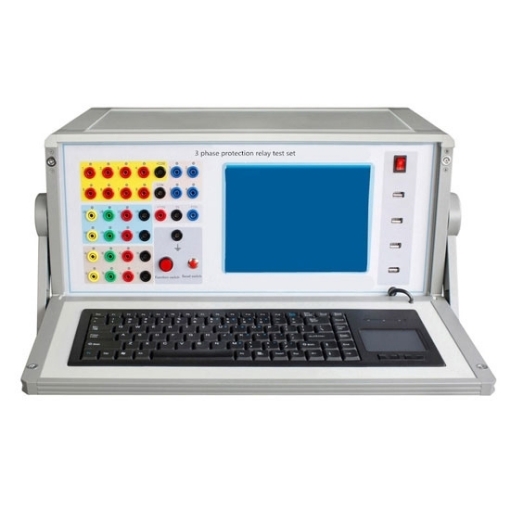

    Intelligent 6 Phase relay tester is equipped with WindowsXP interface, ultra-thin industrial keyboard and optical mouse. This 6 phase relay protection set with microcomputer control, 6 phase voltage output, Output voltage is 110V (1A) and 220V (0.6A), is used in relays or protection devices that require DC operating power.
    SKU: SISCO-RT1200
    i h
    Free shipping
    Delivery date: 7-12 days

    6 phase relay protection tester with microcomputer control can be used for a variety of relays and protective devices, a variety of microcomputer protection, transformer differential protection and standby self-switching devices.


    • 6 Phase relay test equipment meet all test requirements on site. The 6-phase microcomputer relay protection tester has a standard six-phase current, six-phase voltage output simultaneously, current 30A/phase, voltage 125V/phase. The six-phase current can be connected in parallel to 180A.
    • Classic WindowsXP operation interface, friendly man-machine interface, easy and fast operation, high-performance embedded industrial control computer and 8.4-inch TFT true color display with resolution of 800×600, can provide rich and intuitive information, including equipment Current working status and various help information.
    • The native Windows XP system comes with a recovery function to avoid system crashes caused by illegal shutdown or misoperation. Equipped with an ultra-thin industrial keyboard and optical mouse, you can perform various operations through the keyboard or mouse just like an ordinary PC.
    • The main control board adopts DSP+FPGA structure and 16-bit DAC output. It can generate high-density sine waves of 2000 points per week for the fundamental wave, which greatly improves the quality of the waveform and improves the accuracy of the tester.
    • The power amplifier adopts high-fidelity linear power amplifier, which not only ensures the accuracy of small current, but also ensures the stability of large current.
    • The 6-phase microcomputer relay protection tester uses the USB interface to directly communicate with the PC, without any adapter wiring, and is convenient to use. Can be connected to a laptop (optional) to run. The laptop and the industrial computer use the same software, no need to re-learn the operation method.
    • 6 phase protection relay test set equipped with independent dedicated DC auxiliary voltage source output, the output voltage is 110V (1A) and 220V (0.6A) respectively. Used for relays or protection devices that require DC operating power.
    • With software self-aligning function, it avoids the need to open the chassis to adjust the accuracy by adjusting the potentiometer, thus greatly improving the stability of accuracy.


    sisco relay tester is mainly used for 6 phase protection relay testing in electric power industry, transformer substation and ship industry, etc.

    Relay protection tester application

    Setting Range Model SISCO-RT1200
    DC Power Output 110V 220V
    6-Phase ac(L-N) 0-30A
    3-phase ac(L-N) 0-60A
    1-phase ac(L-N) 0-180A
    6-phase dc(L-N) 0-10A
    3-phase dc(L-N) 0-20A
    1-phase dc(L-N) 0-60A
    Power 6-phase ac 6*260VA/W
    3-phase ac 3*400VA/W
    1-phase ac 1*1080VA/W
    6-phase dc 6*180VA/W
    3-phase dc 3*320VA/W
    1-phase dc 1*780VA/W
    General Accuracy <0.2%
    Distortion ≤0. 5%
    Resolution 4.0mV
    Frequency Range Sine Signal DC 1000Hz
    Transient Signal DC 3000Hz
    Frequency Accuracy 0.01%
    Frequency Resolution 0.01Hz
    Phase Angle Range -360~+360
    Phase Angle Accuracy 0.1
    Digital Input Number 10
    Input Characteristic 10-250VDC or free contact
    Time Resolution 1m/s
    Max Measuring Time 9999s
    Digital Output Type Freerelay Contact
    Number 8
    Break Capacity ac 0.5A, 250V
    Break Capacity dc 0.5A, 60Vdc
    General Nominal Supply voltage 240Vac
    Permissible Supply Voltage 220~264Vac
    Nominal Frequency 50/60Hz
    Permissible Frequency 45~65Hz
    Operating Temperature -5~+50℃
    PC-Connection USB
    Ground Socket 4mm Banana Socket
    Weight (Combined with Case) 50kg
    Warranty 36 Months

    Q1: What is a relay tester?
    A1: Relay tester is an important test tool to ensure the safe and reliable operation of power system. With the continuous expansion of the scale of modern power systems and the continuous improvement of the reliability and efficiency requirements of power system operation and management, the testing work of relay protection personnel has become more frequent and complex. The relay protection tester uses a high-performance industrial computer as the control computer, and directly runs the Windows operating system. The back panel of the device is provided with USB ports, network ports, serial communication ports, etc., which can facilitate data access, data communication and software upgrades.

    Q2: What are the functions of protection relay tester?
    A2: Protection relay tester needs to be able to respond to the faults and abnormal actions of electrical equipment, and can automatically, quickly and selectively act on the circuit breaker, remove the faulty device from the system, and ensure that the faulty device continues to work. And limit the incident to a minimum, improve the reliability of the system operation, and maximize the safety of the user's connection to the power supply. The role of relay test equipment is the role of automation equipment. "Normal" and "abnormal" operating conditions must be in the correct zone, as well as "external faults" and "internal faults" of the components to be maintained to complete the relay. Electrical maintenance function. Therefore, changes in various physical quantities reflected under various conditions can be detected and identified.

    Q3: What are the advantages of relay tester?
    A3: The relay protection tester has various forms in the output of current intensity, which can meet the characteristics of actual field experiments. Relay test set is not only compatible with each traditional experimental method, but also can easily carry out three-phase transformer differential protection experiments and factory power fast switching and standby self-switching experiments. Its powerful software functions can realize a variety of high-level automation technology, and large and medium-sized complex verification work. It also has the characteristics of its high-performance host and flexible output of current intensity, which greatly improves the detection production efficiency. Not only its real-time data digital signal processing ability is strong, and the operation speed is faster, but also the output waveform of the instrument equipment has high precision, small frame loss and good linearity. The function of the relay protection tester is to check whether the operation of the comprehensive relay can work normally, in order to verify the technicians find the problem early, and then deal with it in a timely manner to protect the normal operation of the overall power system.

    Tips: The main circuit of the relay protection tester working principle

    The input AC220V power supply enters the input end of the double carbon brush voltage regulator T1 through the output control relay K1 through the insurance, and the power adjusted by the large knob of T1 enters the isolation transformer T2 (part-time booster). The booster is divided into three taps for output, one The tap is AC0-250V output, and the rated current is 3A; the output voltage of this tap can output 0-350V DC voltage after rectification and filtering; the second tap is 15V (10A), and the tap is controlled by the sensor through the relay to output 0-10A AC current, one channel outputs 0-500mA AC current through resistance, and one channel outputs 0-10A or 0-500mA DC current through relay conversion; the second tap is 10V (100A) high current end, which passes through the primary side of the sensor directly. The output current is 100A. The loop has a strong load capacity, but the output is slightly overloaded and cannot be in a high current state for a long time.


    Thank you for buying industrial test and measurement equipment on, all products sold by sisco and the partner cover a 12 months warranty, effective from the date of receiving the products.

    What is covered?

    sisco is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.

    What is not covered?

    • Product purchased from anyone other than a sisco store or a sisco authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than sisco approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by sisco.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a sisco authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
