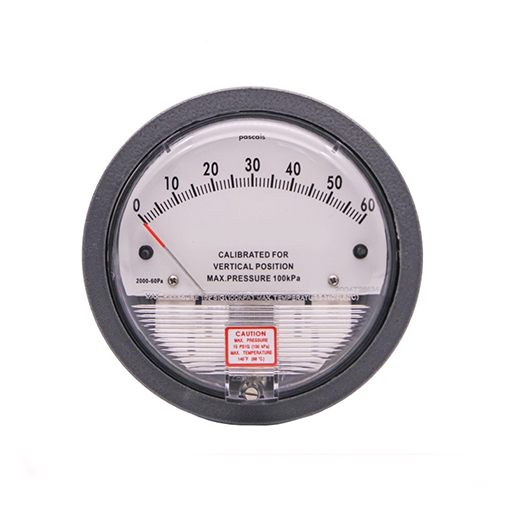

    Differential Pressure Gauge, 0~60Pa

    Good price differential pressure gauge with measuring range of 0-60Pa, 21℃ full scale ±4%. The differential pressure indicator combines high accuracy, durability, and ease of use, making it an essential tool for any environment where precise low-pressure measurement is crucial.
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days

    Diaphragm differential pressure gauge comes with 0-60Pa measuring range. The dp gauge features a clear, easy-to-read display that provides instant pressure readings, reducing the risk of errors and ensuring optimal operation.

    Differential pressure gauge details

    Precision cast all-aluminum shell

    • The dp gauge is sprayed with imported plastic powder, which has suitable thickness and drying temperature, high hardness, is not easy to foam, and is not easy to produce aluminum rust.
    • Drop test from a height of one meter, no damage to the surface.
    Differential pressure gauge details

    High strength plastic PC cover

    • The cover of diff pressure gauge with good permeability, clear viewing angle.
    • Excellent strength and high safety protection.


    Differential pressure gauge size


    SISCO differential pressure gauge is essential in various industries for monitoring filter conditions, measuring flow rates, determining liquid levels in tanks, ensuring pump efficiency, maintaining clean room pressure, assessing HVAC system performance, and safeguarding hydraulic, boiler, and environmental systems, as well as in specialized applications like pharmaceutical factories, purified air conditioners, microelectronics environments, and blower pressure measurements, all by accurately measuring the pressure difference between two points to ensure optimal operation, safety, and compliance with regulations.

    Differential pressure gauge for purify air conditioner

    Purify Air Conditioner

    Differential pressure gauge for microelectronics


    Differential pressure gauge for blower pressure measurement

    Blower Pressure Measurement

    Differential pressure gauge for pharmaceutical factory

    Pharmaceutical Factory



    Model SISCO-DPG-60
    Measuring Range  0~60Pa
    Accuracy 21℃ full scale ±4%
    Use interface 1/8 inner tooth normal temperature and pressure dual high and low pressure interface (back)
    Overvoltage The rubber overpressure plug was flushed open at about 172kPa.
    Size 120.65*55.6mm
    Ambient Temperature  -7°C~ 60°C
    Material Die cast aluminum

    DP Gauge Structure

    Differential pressure gauge structure


    Q1: Can a differential pressure gauge measure both positive and negative pressure differences?
    A1: Yes, a differential pressure gauge can measure both positive and negative pressure differences between two points. It is designed to indicate the difference regardless of which side has the higher pressure.

    Q2: Can a differential pressure gauge be used in high-temperature environments?
    A2: It depends on the specific gauge and its construction materials. Some diff pressure gauges are designed to withstand high temperatures, but it is important to check the manufacturer's specifications to ensure suitability for high-temperature applications.

    Q3: Can I calibrate a differential pressure gauge myself?
    A3: Yes, you can calibrate a differential pressure gauge if you have the proper equipment and follow the correct procedures. Calibration should be done using a known reference standard, and the process may vary depending on the gauge type. For critical applications, professional calibration services are recommended.

    Tips: What are the benefits of using a differential pressure gauge?

    The benefits include:

    • Accurate monitoring of pressure differences.
    • Early detection of issues such as filter clogging or equipment malfunction.
    • Improved process control and efficiency.
    • Reduced maintenance costs by identifying problems before they become severe.
