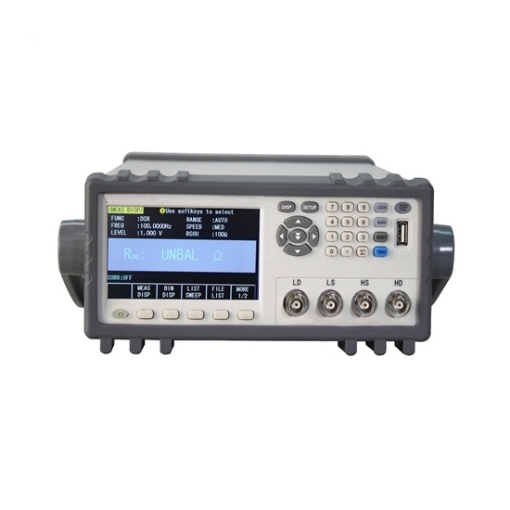

    Digital LCR Meter, 20Hz~200kHz

    Digital LCR meter measures inductance (L) max. 99.999kH, capacitance (C) max. 99999µF, resistance (R) max. 99.999MΩ, with frequency range 20Hz~200kHz, 0Hz~100kHz or 50Hz~200kHz for selection. Basic accuracy 0.05%. LCR bridge tester is high-performance and compact for various electronic component.
    SKU: SISCO-LCRM-2020
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days

    Digital LCR meter comes with 4.3-inch TFT LCD display, 20 typical test frequencies from 20Hz to 200kHz, 0Hz to 100kHz or 50Hz to 200kHz. Digital LCR bridge is equipped with RS232 interface, built-in comparator, 4-level sorting and level counting, high measurement stability and accuracy.


    • 4.3-inch TFT LCD display, compatible with standard SCPI instructions.
    • Ls-Rd/Lp-Rd function (L and Rd display at the same time).
    • Supports U disk file storage, can be upgraded through U disk.
    • Voltage and current monitoring and automatic level adjustment.
    • Specification test function for single transformer (part type only).
    • 10mVrms-2.0Vrms programmable test level, built-in 0- + 5V/50mA bias source.

    Panel details of digital LCR meter 20Hz~200kHz

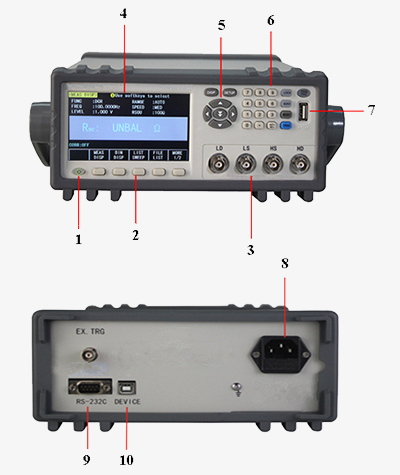

    Digital LCR meter panel details

    1. Power supply
    2. Function key
    3. Test terminal
    4. Display
    5. Cursor key
    6. Numeric keypad
    7. U-disk interface
    8. Power supply
    9. RS-323 interface
    10. DEVICE interface


    Digital LCR bridge meter is widely used in the fields of electric power, petrochemical industry, metallurgy, railway, meteorology, industrial and mining enterprises, metrology departments, scientific research institutions and so on.

    Digital LCR meter application

    Model SISCO-LCRM-2830 SISCO-LCRM-2831 SISCO-LCRM-2832
    Display 4.3 TFT LCD display 480*272
    Basic Measurement Readiness LCRZ 0.05% 0.05% 0.05%
    DCR 0.10%
    Test Signal Frequency 50Hz-100kHz, 0.01Hz step 50Hz-200kHz, 37 points 20Hz-200kHz, 0.01Hz step
    Signal Source Output Impedance 30Ω, 100Ω
    AC Test Signal Level 10mV-2Vrms
    RDC Test Signal Level 1V DC 1V DC 5mV-2V DC
    DC Bias Voltage Source - - 0mA--±5V/0mA -- ±50mA
    Test Specifications Basic L, C, R, |Z|, D, Q, |Y|, G, X, θd, θr, RDC, Vm, Im, △%
    Transformer DCR1 (primary, 2-terminal), DCR2 (secondary, 2-terminal), M (mutual inductance) N, 1/N, phase (phase), Lk (leakage inductance), C (primary and secondary capacitance)
    Measurement speed (ms/ times) High: 12.5ms, medium speed: 83ms, slow: 167ms
    Equivalent Circuit Series, parallel
    Range Mode auto, keep
    Trigger Mode Internal, manual, external, bus
    Average Number of Times 1-255
    Clear Function Open circuit, short circuit, load
    Mathematical Operation Direct reading, △ABS, △%
    Trigger Delay Setting 0--60.000s, 1ms step
    Step Selay Setting 0--60.000s, 1ms step
    Power Requirements 110V~240V
    List Scan 201 point
    Scanning specifications: Test frequency, AC voltage, AC current, DC BIAS voltage, DC BIAS current
    Graphic Scanning Analysis no
    Unique Function
    L-RDC At the same time test, soft power switch, one button screen function, data recording function.
    Comparator Function 10 gear sorting, BIN1∽BIN9, NG, AUX
    gear counting function
    PASS, FALL Front panel LED display
    Internal Nonvolatile Memory 100 sets of LCRZ instrument set file, 201 test results
    External USB Memory Instrument settings files, CSV data files, screenshots (GIF images)
    Certification CE
    Interface RS-232
    Size Upper frame size: 215mm (W)*88mm (H)*336mm (D)
    Shape size:236mm (W)*105mm (H)*363mm (D)
    Packing List LCR meter, CD (user manual included), test report, warranty card, test clip, fuse, power charger

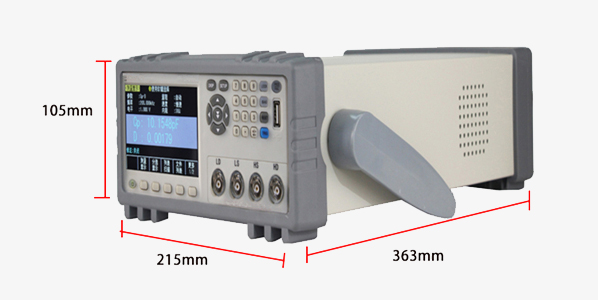

    Dimension drawing of digital LCR meter 20Hz~200kHz


    Q1: What is a LCR meter?
    LCR meter is also called LCR bridge or LCR tester. It can accurately and stably measure various component specifications, is a tester mainly used to test inductance (L), capacitance (C), and resistance (R). Digital LCR meter has two detection modes: series mode and parallel mode. The series mode is based on detection for component impedance Z, and the parallel mode is based on detection for component admittance Y. Digital LCR meter has the features of direct function and easy operation. It can meet test requirements of devices in production line quality assurance, incoming inspection, electronic repair and other industries with a lower budget.

    Q2: What are the functions of LCR meter?
    A2: The LCR tester is mainly used to measure the impedance of various electronic products, and can also measure the transmission performance of electronic components. In the actual measurement, there are many standard interfaces on the LCR tester, and the corresponding standard interface can be selected according to the situation of the electronic components to be measured, and the measurement can be performed automatically. The response time of this measurement is very fast, and the error is very small. The error of the current LCR tester can be less than 0.1%.

    Q3: How does a LCR meter work?
    A3: The measurement object of the digital LCR tester is the parameters of the impedance element, including the AC resistance R, the inductance L and its quality factor Q, the capacitance C and its loss factor D. Therefore, the digital LCR tester is often referred to as a digital LCR measuring instrument.

    It is measured at frequencies from the power frequency to about 100 kHz. The basic measurement error is 0.02%, generally around 0.1%. Its impedance is represented by Zx, and Rr is a standard resistor. The switch can measure the voltages Ux and Ur respectively, so there is the following formula: Zx = Ux/Ix = Rr * Ux/Ur

    This formula is a phasor relational formula. For example, the phase sensitive detector (PSD) is used to measure the in-phase component and quadrature component of Ux and Ur corresponding to a certain reference phasor, and then the analog-to-digital converter (A/D) converts them into digital quantities, and then The complex number operation is carried out by the computer, and the resistance value and reactance value that make up the measured impedance Zx can be obtained.

    Tips: Why you need a digital LCR meter?

    The LCR meter can measure DC resistance as well as AC resistance. During the measurement, the current value, voltage value, and output impedance value can be clearly reflected. These values are clearly displayed on the touch screen. These values can be further calculated and analyzed to judge the performance of various parameters of this electronic component. The digital LCR tester is relatively simple to operate, so it has been widely used. Practice has proved that the effect of the LCR bridge is very stable, and after using this kind of measurement equipment, the measurement and testing cost of the enterprise can be greatly saved, and then the measurement efficiency and accuracy can be greatly improved.


    Thank you for buying industrial test and measurement equipment on, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.

    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.

    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
