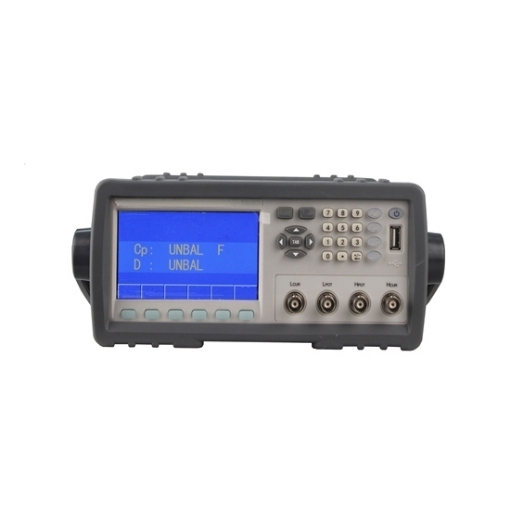

Digital LCR Meter, 50Hz~200kHz

Digital LCR meter with test frequency 50Hz~200kHz for inductance (L) max. 9999.99H, capacitance (C) max. 9.9999F, resistance (R) max. 99.9999MΩ measurement. Accuracy reach to 0.05%. Multi-functional precision digital LCR bridge is can be used to all kinds of electronic components.
SKU: SISCO-LCRM-5020
$1,396.62
i h
Free shipping
Delivery date: 7-12 days
Overview


Precision digital LCR multimeter is equipped with 4.3-inch color TFT screen, 32-bit processor core. This digital LCR tester has test voltage or current automatic level control of ALC function, which meets the demand of various occasions’ component parameter detection.

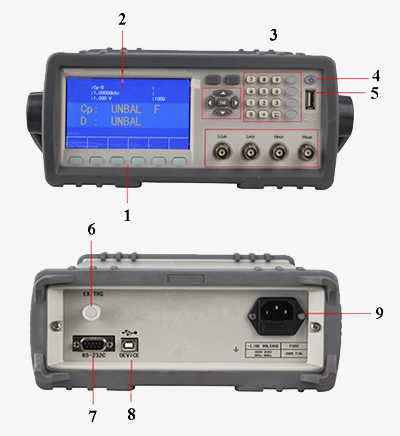

Panel details of digital LCR meter 50Hz~200kHz

Digital LCR meter panel details

  1. Function key
  2. Display
  3. Numeric keypad
  4. Power switch
  5. U-disk interface
  6. EX-TRG
  7. RS-232C
  8. DEVICE interface
  9. Power socket

Applications

Digital LCR bridge meter is widely used in the fields of electric power, petrochemical industry, metallurgy, railway, meteorology, industrial and mining enterprises, metrology departments, scientific research institutions and so on.

Digital LCR meter application

Specs
Model SISCO-LCRM-2816
Test Specifications |Z|, |Y|, C, L, X, B, R, G, D, Q (deg), θ (Rad)
Test Frequency 50Hz~200kHz total of 37 frequency points
Basic Test Accuracy 0.05%
Equivalent Circuit Series, parallel
Mathematical Function Absolute value deviation, △%
Range Mode Auto, Hold, manual
Trigger Mode Internal, Manual, External, Bus
Measurement Speed (≥1kHz) Fast: 75 time/second, Med: 12 time/second, Slow: 3 time/second
Averaging Rate 1—255
Delay Time time 0—60s, n 1 ms step by step
Correction Function Open, short, load
Test Configuration 5 ports
List Sweep 4 points
Display Mode Direct, Δ, Δ%, V/I (V/I monitor)
Display 6 resolution, 4.3 Inch LCD monitor
Output Impedance 30 Ω, 100 Ω selectable
Power Requirements 110V~240V
Test Level Normal: 5mV-2V, Accuracy: 10%, with step of 1 mV
Constant level: 10mV-1V, Accuracy: 5%, with step of 1mV
DC Bias Source 0V, 1.5V, 2V, Accuracy: 1% (customization)
Display Range |Z|, R, X: 0.01mΩ—99.9999MΩ
DCR: 0.001mΩ—99.9999MΩ
|Y|, G, B: 0.00001µS—99.9999S
C: 0.00001pF—9.9999F
L: 0.00001µH—9999.99H
D: 0.00001—9.9999
Q: 0.00001—9999.9
θ (DEG): -179.999º—179.999º
θ (RAD): -3.14159—3.14159
Comparator Function 10 bins: 9 pass bin, 1 fail bin, AUX bin
Certification CE
Memory 100 control setting memory for store/recall, Outside of 500
Interface RS232C, USB HOST, USB DEVICE

Dimension

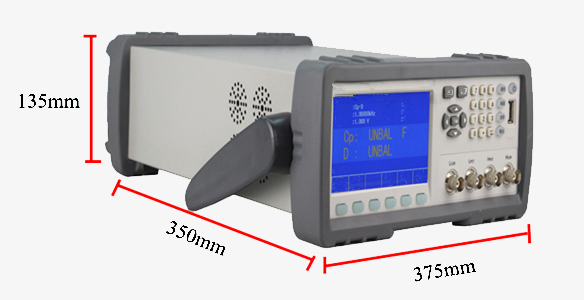

Dimension drawing of digital LCR meter 50Hz~200kHz

FAQs

Q1: What is a LCR meter?
A1:
LCR meter is also called LCR bridge or LCR tester. It can accurately and stably measure various component specifications, is a tester mainly used to test inductance (L), capacitance (C), and resistance (R). Digital LCR meter has two detection modes: series mode and parallel mode. The series mode is based on detection for component impedance Z, and the parallel mode is based on detection for component admittance Y. Digital LCR meter has the features of direct function and easy operation. It can meet test requirements of devices in production line quality assurance, incoming inspection, electronic repair and other industries with a lower budget.

Q2: What are the functions of LCR meter?
A2: The LCR tester is mainly used to measure the impedance of various electronic products, and can also measure the transmission performance of electronic components. In the actual measurement, there are many standard interfaces on the LCR tester, and the corresponding standard interface can be selected according to the situation of the electronic components to be measured, and the measurement can be performed automatically. The response time of this measurement is very fast, and the error is very small. The error of the current LCR tester can be less than 0.1%.

Q3: How does a LCR meter work?
A3: The measurement object of the digital LCR tester is the parameters of the impedance element, including the AC resistance R, the inductance L and its quality factor Q, the capacitance C and its loss factor D. Therefore, the digital LCR tester is often referred to as a digital LCR measuring instrument.

It is measured at frequencies from the power frequency to about 100 kHz. The basic measurement error is 0.02%, generally around 0.1%. Its impedance is represented by Zx, and Rr is a standard resistor. The switch can measure the voltages Ux and Ur respectively, so there is the following formula: Zx = Ux/Ix = Rr * Ux/Ur

This formula is a phasor relational formula. For example, the phase sensitive detector (PSD) is used to measure the in-phase component and quadrature component of Ux and Ur corresponding to a certain reference phasor, and then the analog-to-digital converter (A/D) converts them into digital quantities, and then The complex number operation is carried out by the computer, and the resistance value and reactance value that make up the measured impedance Zx can be obtained.

Tips: How to connect the DUT to the digital LCR meter?

  1. Generally, the components with radial leads can be directly inserted into the combined test clamp, while the components with special flexible leads should be connected with the clamp clutch, which is located directly under the test clamp.
  2. When connecting the axial lead components, in order to avoid twisting the leads, an axial adapter can be used. First insert the two accessories into the two ends of the test clip respectively, and then adjust the distance between them to the position suitable for the component measurement, and then insert the axial lead elements into the accessory clips on both ends.
  3. In the occasions where the axial adapter must be quite firmly fixed, such as when measuring a large number of similar components, a support plate needs to be used.

Install the support plate: first adjust the axial adapter to the appropriate position, then hang the support plate above the axial adapter, let each axial adapter pass through the slot on the support plate, and place the support plate , align the fixing screws with the screw holes on the LCR tester panel, and finally tighten the screws. Note: It is not easy to overtighten the screws during installation.
