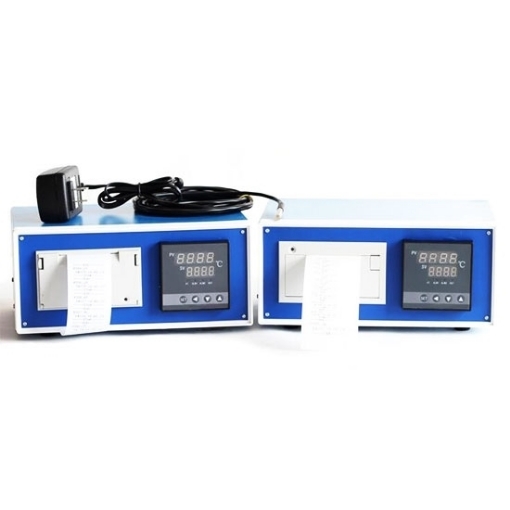

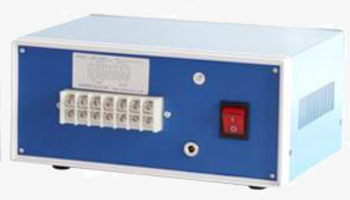

Dual digital with advanced intelligent PID adjustment algorithm, no overshoot, with self-tuning (AT) function, can set the interval and print the temperature record on paper, provides four types of alarm, manual automatic switching, support a variety of thermocouple, RTD specifications and linear current and voltage signals, up to 0.5 voltage signals, the highest resolution up to 0.01 C.
Accurate and stable measurement
- The input adopts a digital calibration system with accurate and stable measurement, supporting a variety of thermocouple and RTD specifications with the highest resolution of 0.01°C.
- Adopt an advanced intelligent PID adjustment algorithm, no overshoot, with a self-tuning (AT) function, the central control output positive and negative control can be set arbitrarily.
Humanized design, easy to learn and use
- Anti-interference performance meets the requirements of electromagnetic compatibility (EMC) in harsh industrial conditions.
- The sisico temperature controller adopts automatic zeroing and digital calibration technology for maintenance-free instrumentation and can be corrected by parameters if the measurement is out of tolerance during calibration.
Application
Temperature controllers are widely used in various home appliances, such as water dispensers and heaters. The refrigerator uses a temperature controller to adjust the temperature to keep food fresh. The temperature controller can always control the temperature inside the refrigerator within a certain range. When the temperature is higher than the specified range, the thermostat can automatically cool down.
| Model | SISCO-TCFD2 |
| Weight | 0.5kg |
| Dimension (Length*High*Depth) | 250*110*190mm |
| Supply voltage | AC 85V-260V/50-60Hz, or DC 24V |
| Working environment | Temperature: -10~60℃, humidity: ≤90%RH |
| Sampling period | 8 times/second; When set digital filter parameter FILt=0, response time≤0.5s |
| Accuracy | ±0.5%F.S ±1 digit |
| Resolution | ≤0.01℃ |
| Input signal * | I1. Temperature sensor: CU50 (-50.0～150.0℃), PT100 (-199.9～600.0℃), K (-50.0～1300℃), E (-50.0～700.0℃), J (-30.0～900.0℃) I2. Analog signal: 4-20mA, 0-10mA, 0-5V, 1-5V |
| Control mode | 1. On-off control; 2. PID control Need manually switch to another control mode. |
| Output mode * | O1: Relay output; O2: SSR output |
| Alarm mode | A1 Default mode: 1 alarm output |
| Alarm | Upper limit, lower limit, upper deviation, lower deviation, in the deviation section, outside the deviation section |
| Printer type * | P1: Needle printer; P2: Thermal printer |

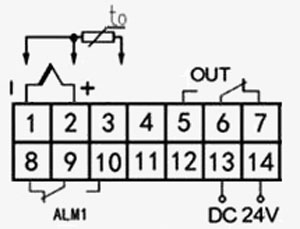

Wiring Diagram
Q1: What is a temperature controller?
A1: A thermostat is a series of automatic control elements that generate certain special effects by physical deformation inside the switch according to the temperature change of the working environment, resulting in an on or off action, also called temperature control switch, temperature protector, temperature controller, or thermostat for short. Or through the temperature protector will be temperature to the temperature controller, temperature the controller issues a switch command, so as to control the operation of the equipment to achieve the desired temperature and energy-saving effect.
Q2: What is the working principle of a temperature controller?
A2: Its working principle is to automatically sample and instantly monitor the ambient temperature through the temperature sensor, and the control circuit starts when the ambient temperature is higher than the control setpoint, and the control return difference can be set. If the temperature is still rising, the over-limit alarm function is activated when it rises to the set over-limit alarm temperature point. When the controlled temperature can not
be effectively controlled, in order to prevent the destruction of the equipment can also stop the equipment to continue to run through the function of tripping. It is mainly used in various high and low-voltage switchgear, dry-type transformers, box-type substations, and other related temperature fields used in the electric power sector.
Q3: What is the temperature controller used for?
A3: Digital electronic temperature controller is a precision temperature detection controller, that can be digital quantitative control of temperature, temperature controller is generally used NTC thermal sensor or thermocouple as the temperature detection element.
Tips: What is a relay analog output?
The analog output is an output that continuously changes state. For example, 4-20mA current signal and 0-5V voltage signal are continuous signals. In an instrument, the 4-20mA output represents the corresponding value of the set range. For example, in a thermometer (0~600℃), when the temperature is 0℃, the analog output of the instrument is 4mA. when the temperature is 300℃, the analog output of the instrument is 12mA.
